Home >> Ford >> 2005 >> Escape Base, 3.0 1, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Removal And Installation >> Speed Control Actuator >> Notes

Speed Control Actuator: Notes

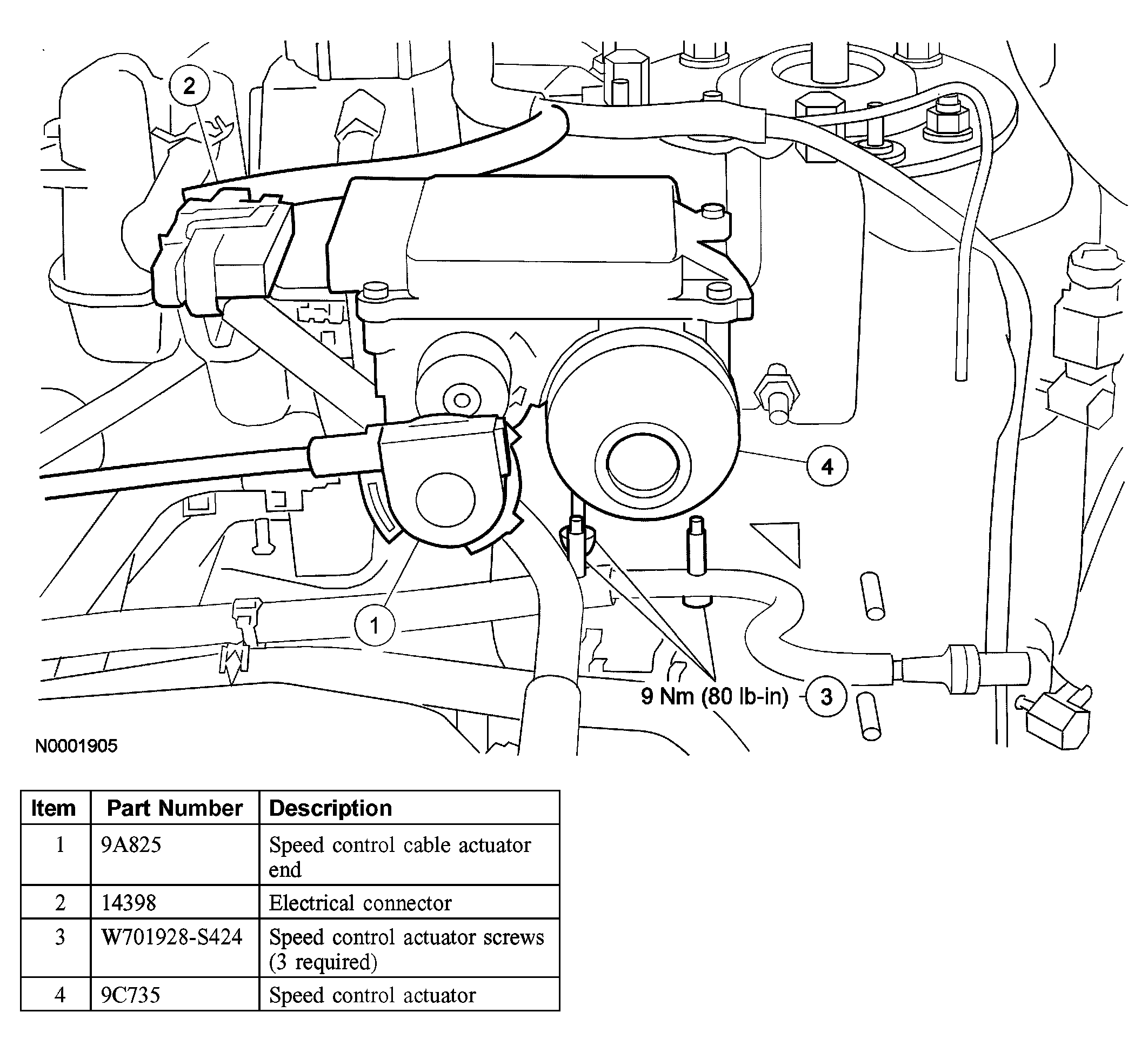

Fig 1: Identifying Components Of Speed Control Actuator

G03902163

Courtesy of FORD MOTOR CO.
