Anti-Lock Brake System (ABS) Module C155

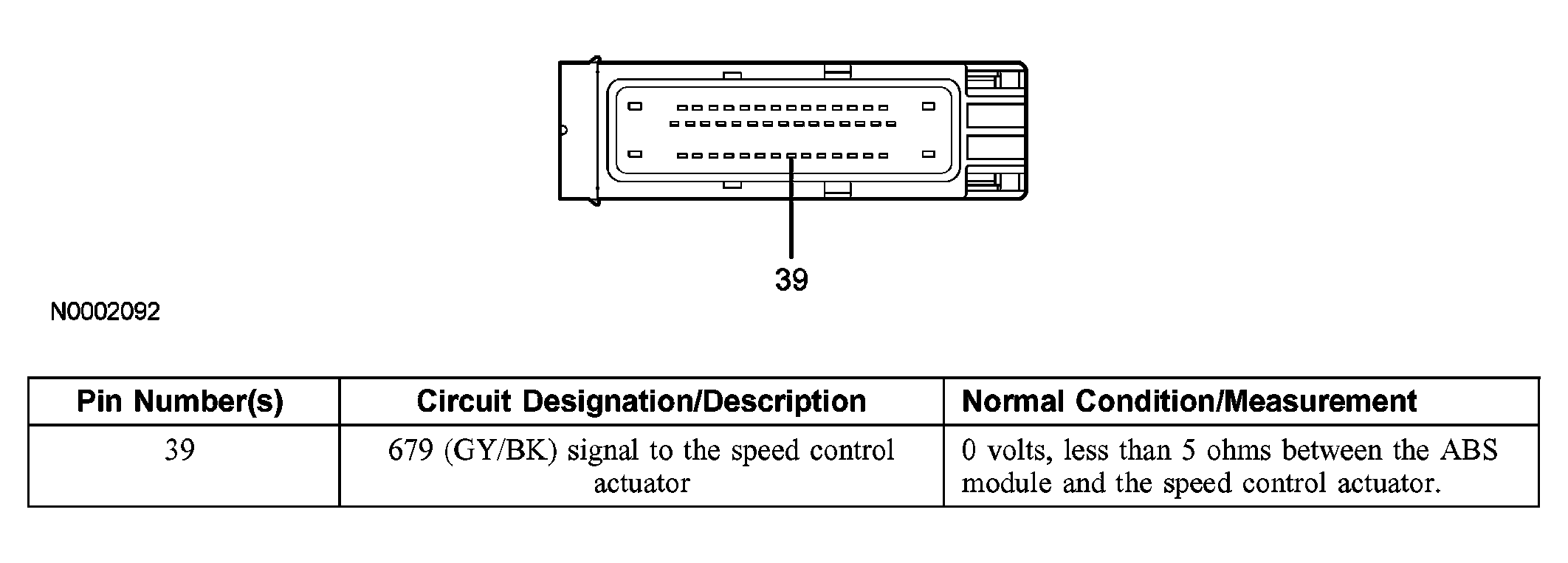

Fig 1: Connector Circuit Reference - Anti-Lock Brake System (ABS) Module C155

G03902078

Courtesy of FORD MOTOR CO.
