Connector Circuit Reference

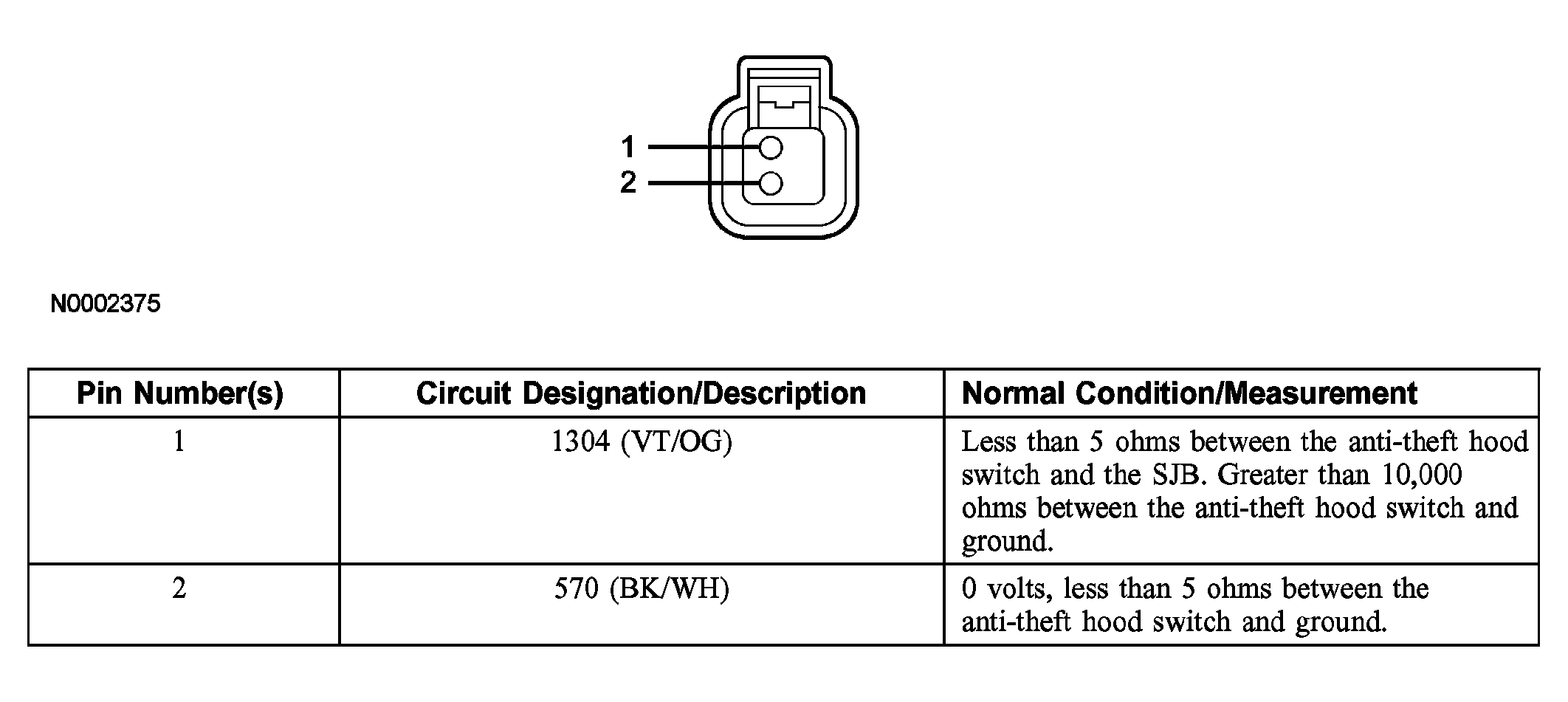

Fig 1: Identifying Anti-Theft Hood Switch C127 Connector Pins

Courtesy of FORD MOTOR CO.

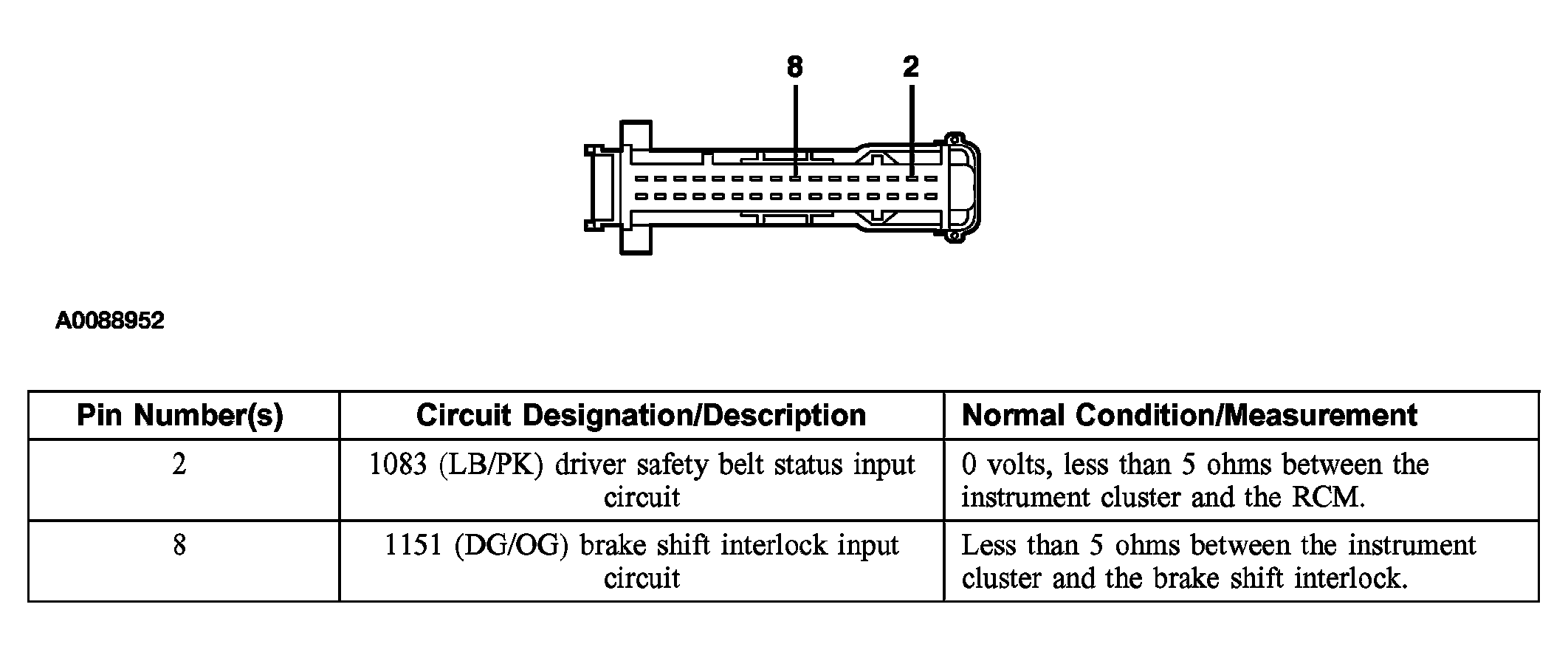

Fig 2: Identifying Instrument Cluster C220 Connector Pins

Courtesy of FORD MOTOR CO.

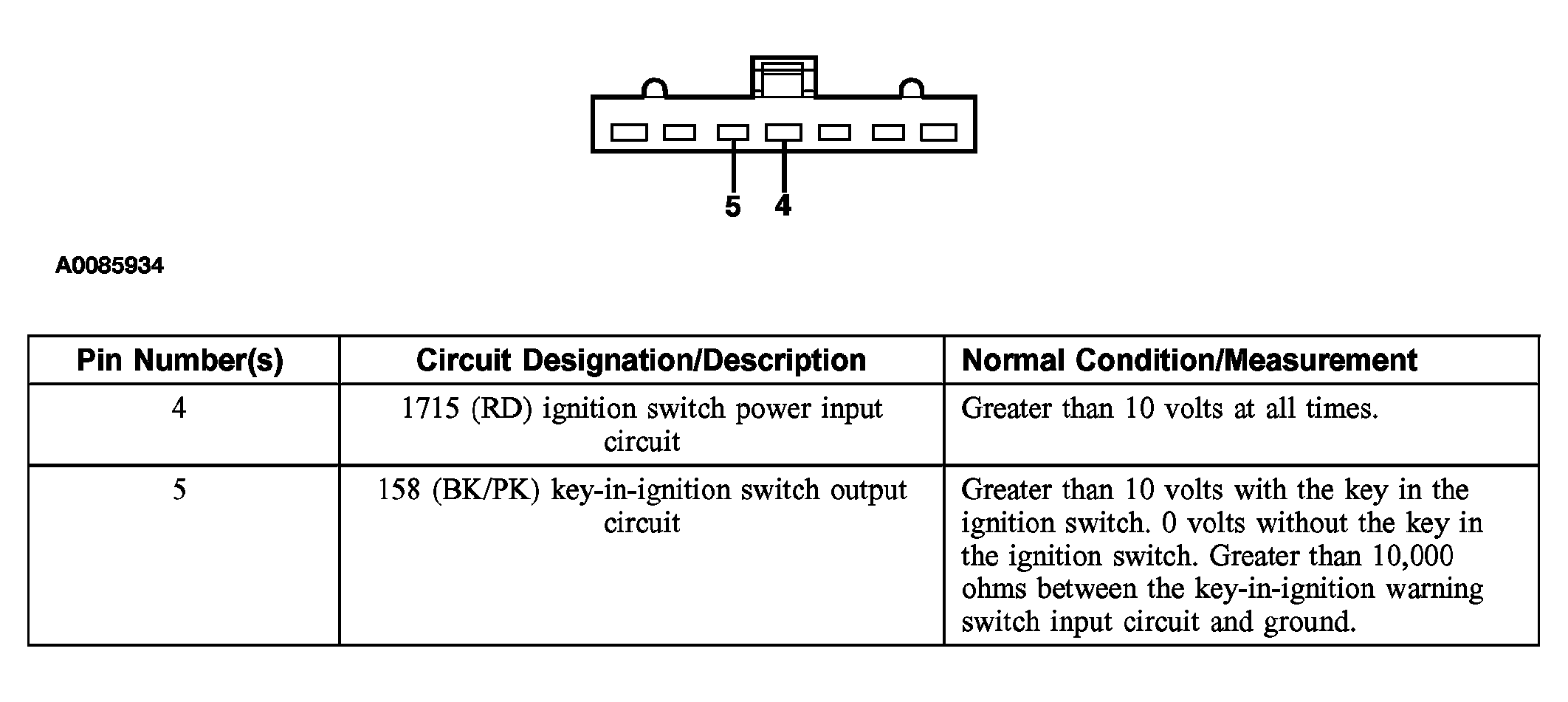

Fig 3: Identifying Ignition Switch C250 Connector Pins

Courtesy of FORD MOTOR CO.

Fig 4: Identifying Restraint Control Module C2041a Connector Pins

Courtesy of FORD MOTOR CO.

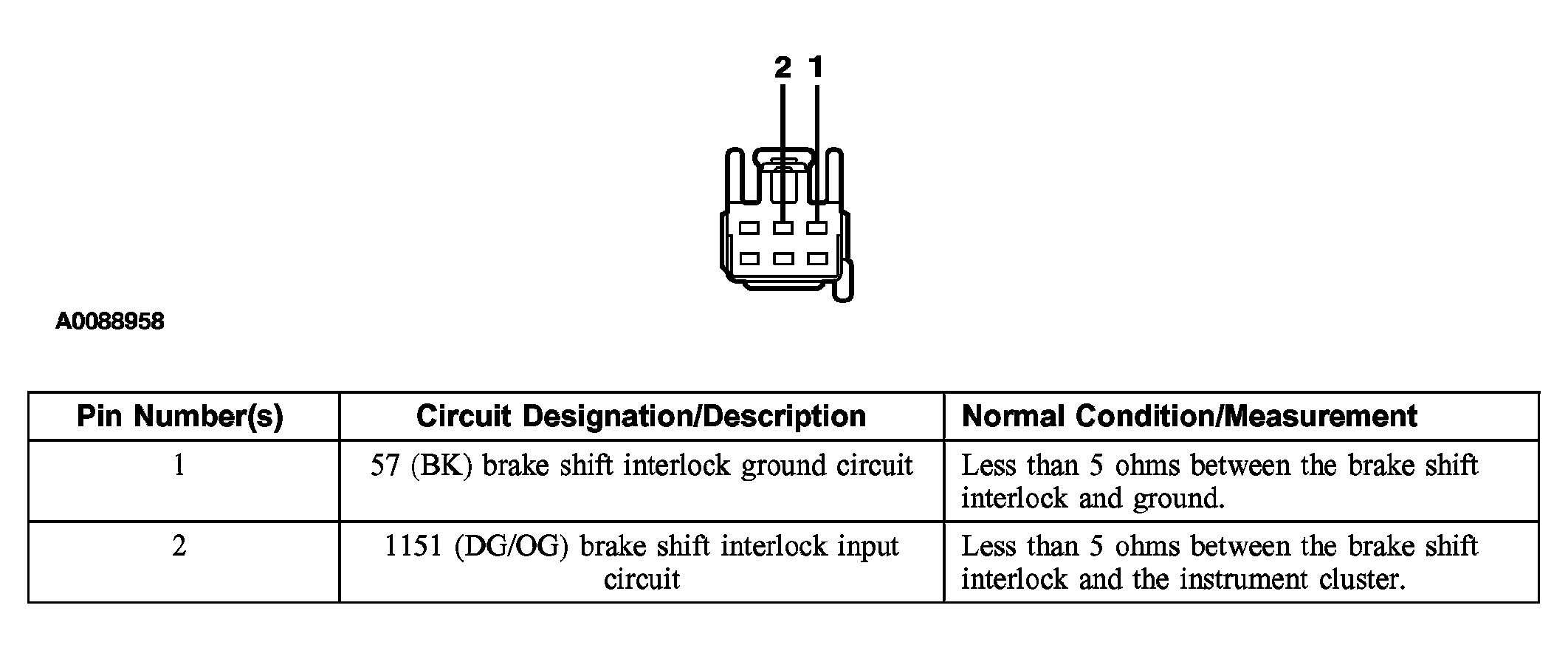

Fig 5: Identifying Brake Shift Interlock C2096 Connector Pins

Courtesy of FORD MOTOR CO.

Fig 6: Identifying Smart Junction Box C2280b Connector Pins

Courtesy of FORD MOTOR CO.

Fig 7: Identifying Smart Junction Box C2280e Connector Pins
