Home >> Ford >> 2005 >> Escape Base, 2.3 Z, FWD, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> In-Vehicle Repair >> Transaxle Front Support Insulator >> Notes

Transaxle Front Support Insulator: Notes

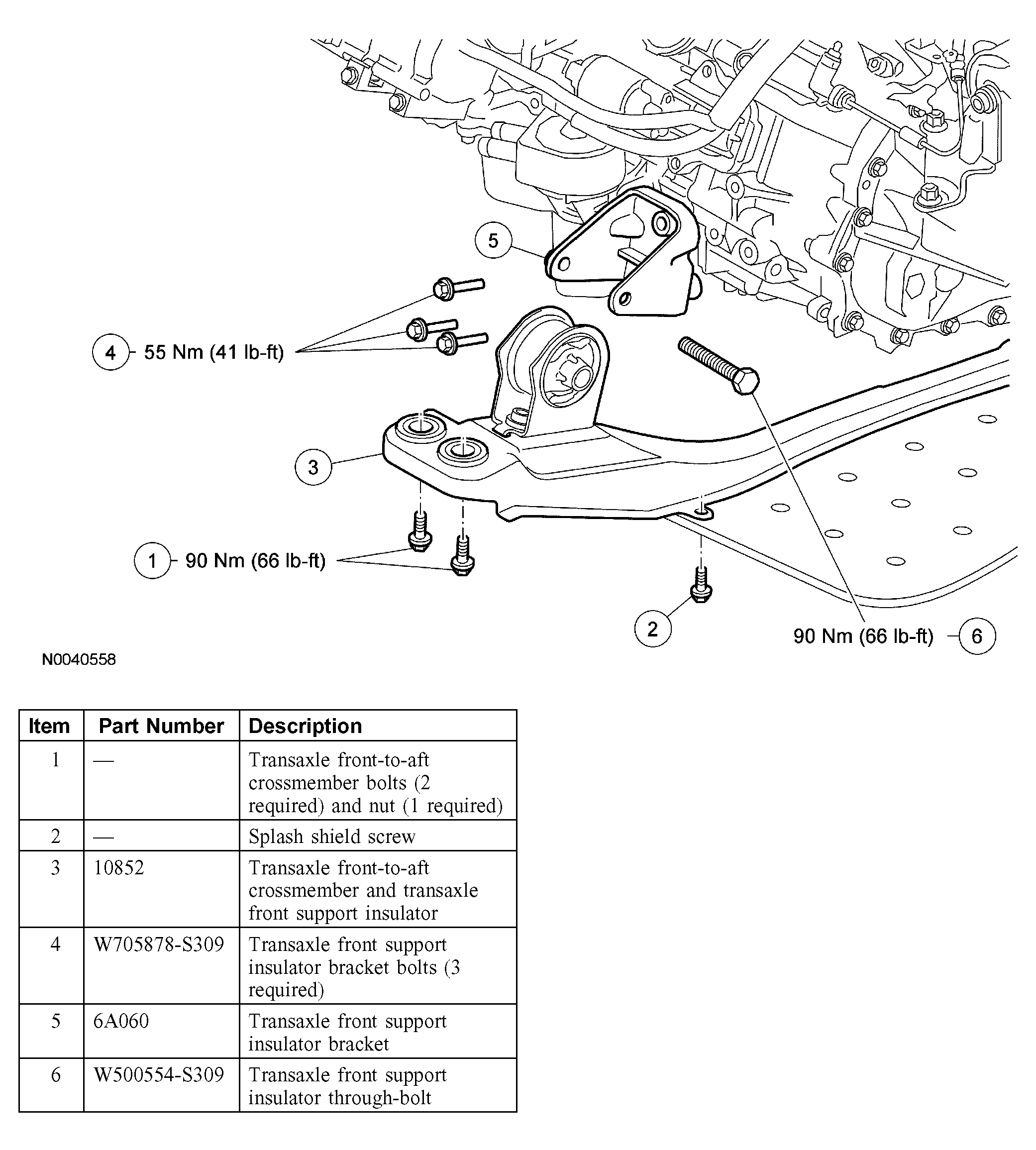

Fig 1: Transaxle Front Support Insulator With Torque Specifications

G03901736

Courtesy of FORD MOTOR CO.
