Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

Inspect the new synchronizer shift ring and hub assembly for damage. Make sure they move freely.

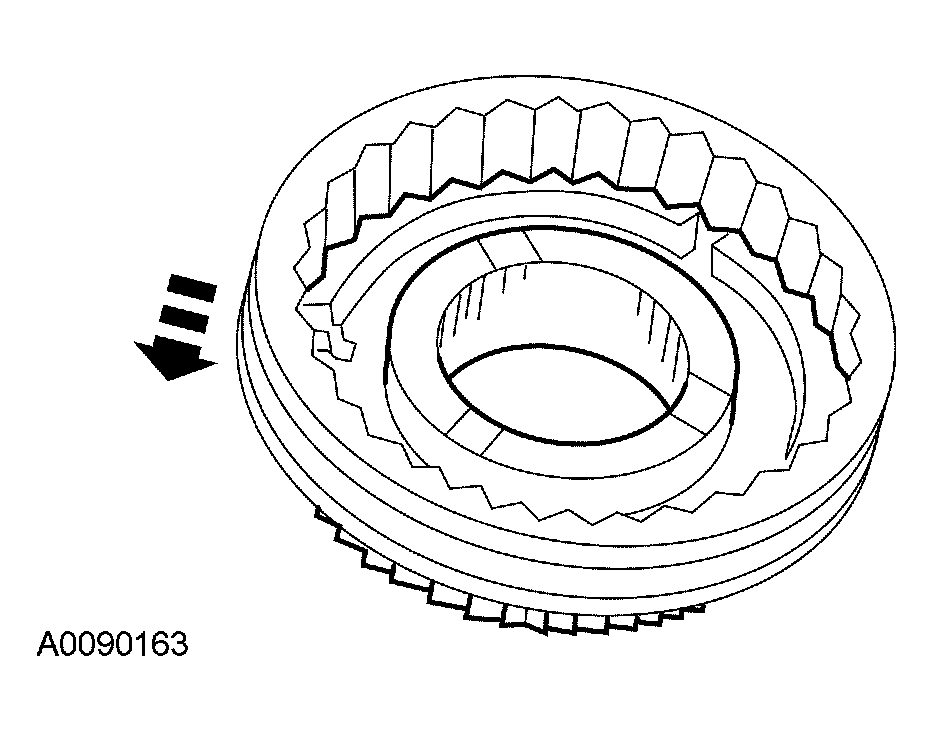

Fig 1: Inspecting New Synchronizer Shift Ring And Hub Assembly
Courtesy of FORD MOTOR CO.
Install the 3 synchronizer keys.

CAUTION: When assembling the synchronizer springs make sure the springs are offset from one another.
