Clutch Controls - Exploded View
Clutch Controls - Exploded View

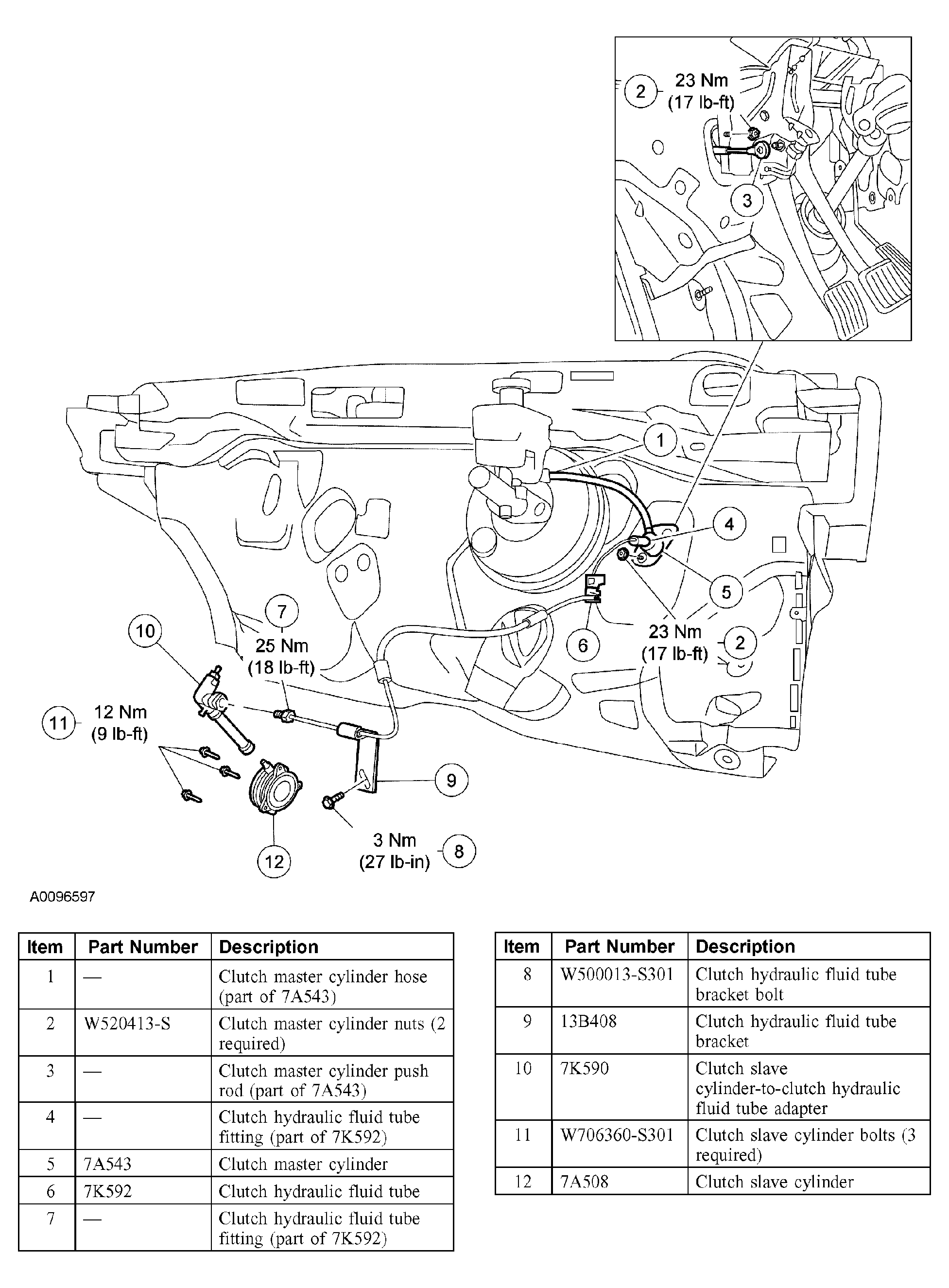

Fig 1: Exploded View Of Clutch Controls With Torque Specifications
Courtesy of FORD MOTOR CO.
For further information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
