Front Suspension - Exploded View
Front Suspension - Exploded View

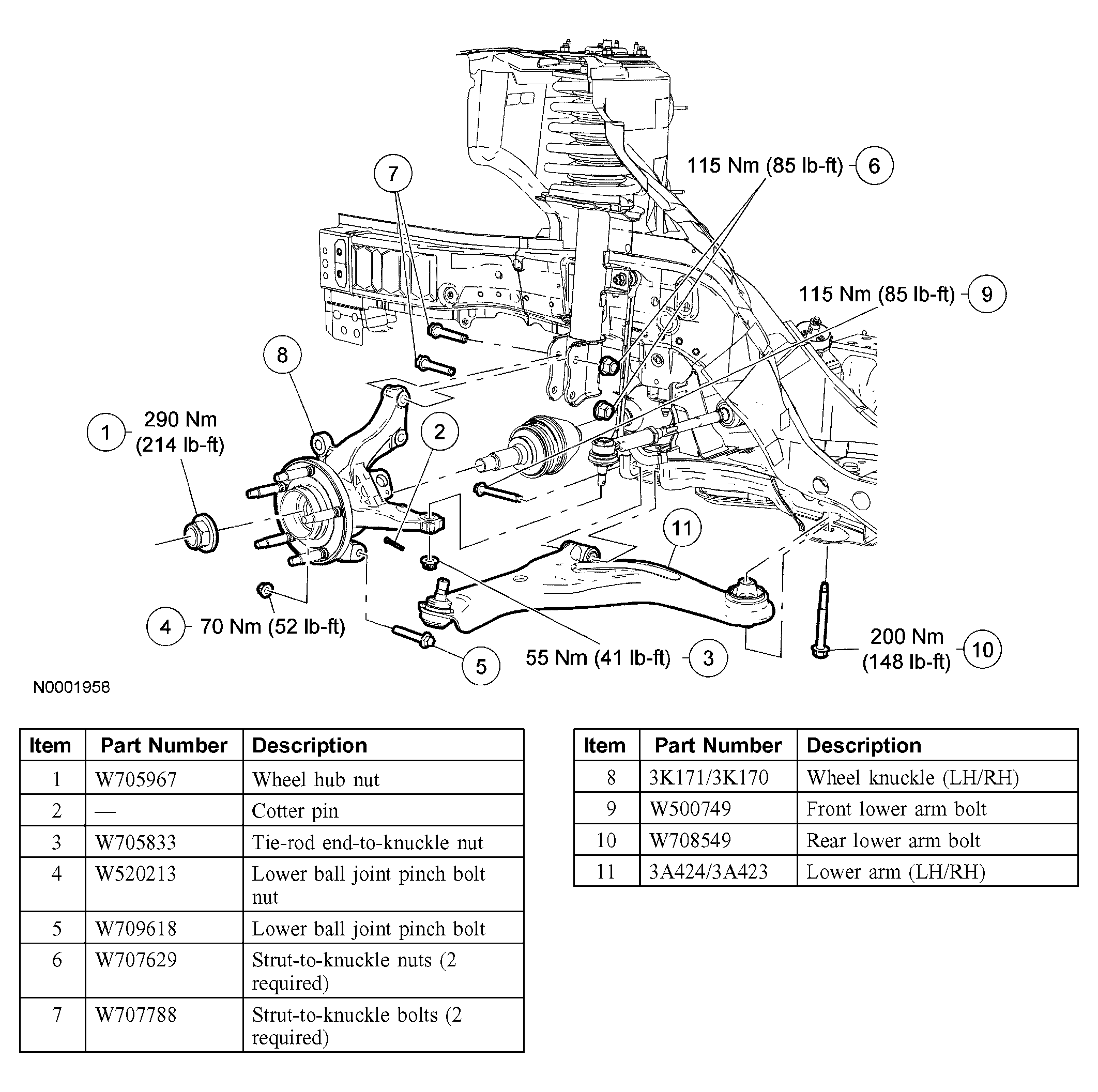

Fig 1: Exploded View Of Front Suspension With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
Courtesy of FORD MOTOR CO.
