Throttle Position (TP) Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

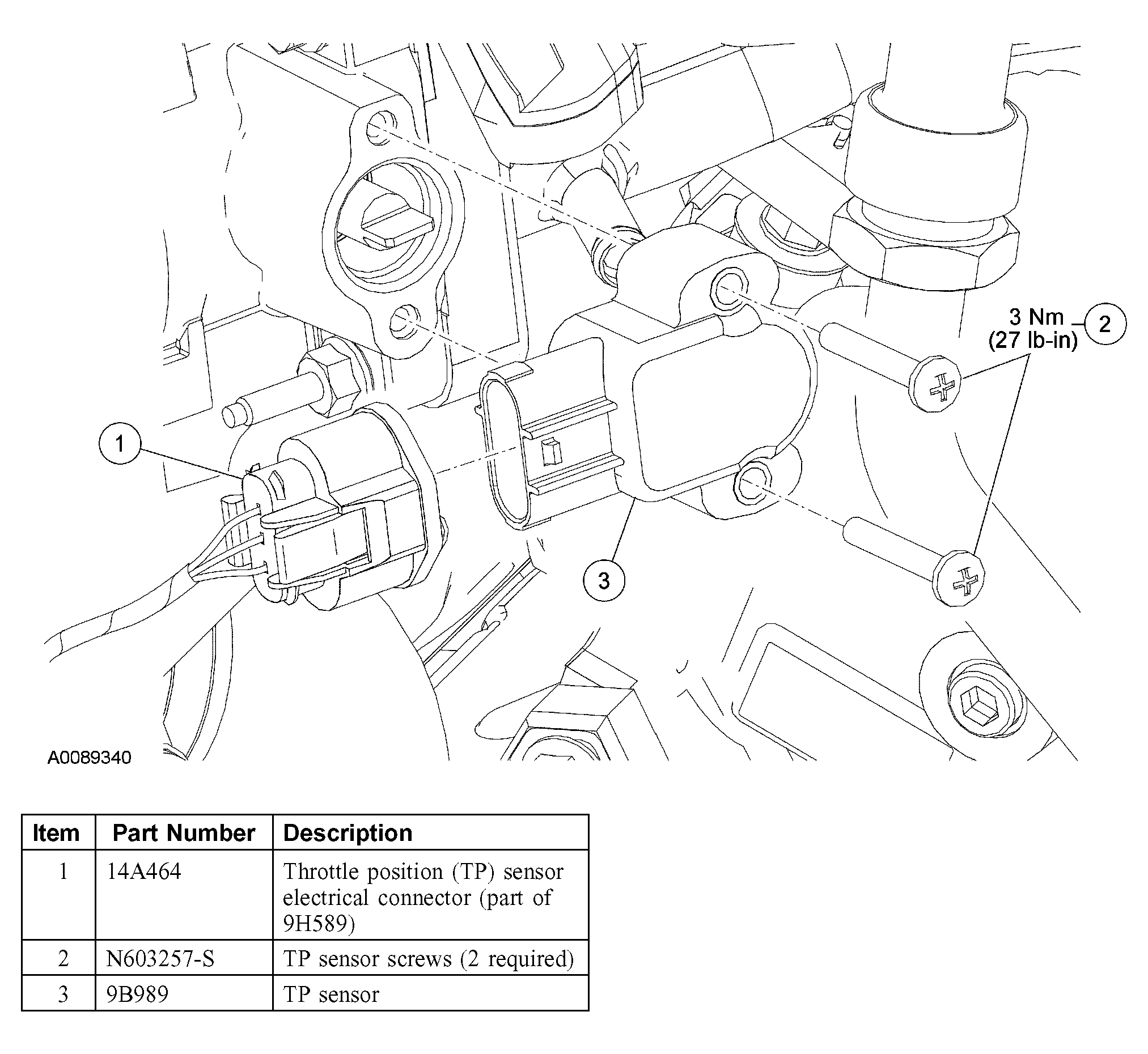

Fig 1: Removing Throttle Position Sensor With Torque Specifications
G03900497Courtesy of FORD MOTOR CO.
