Exhaust System - Exploded View

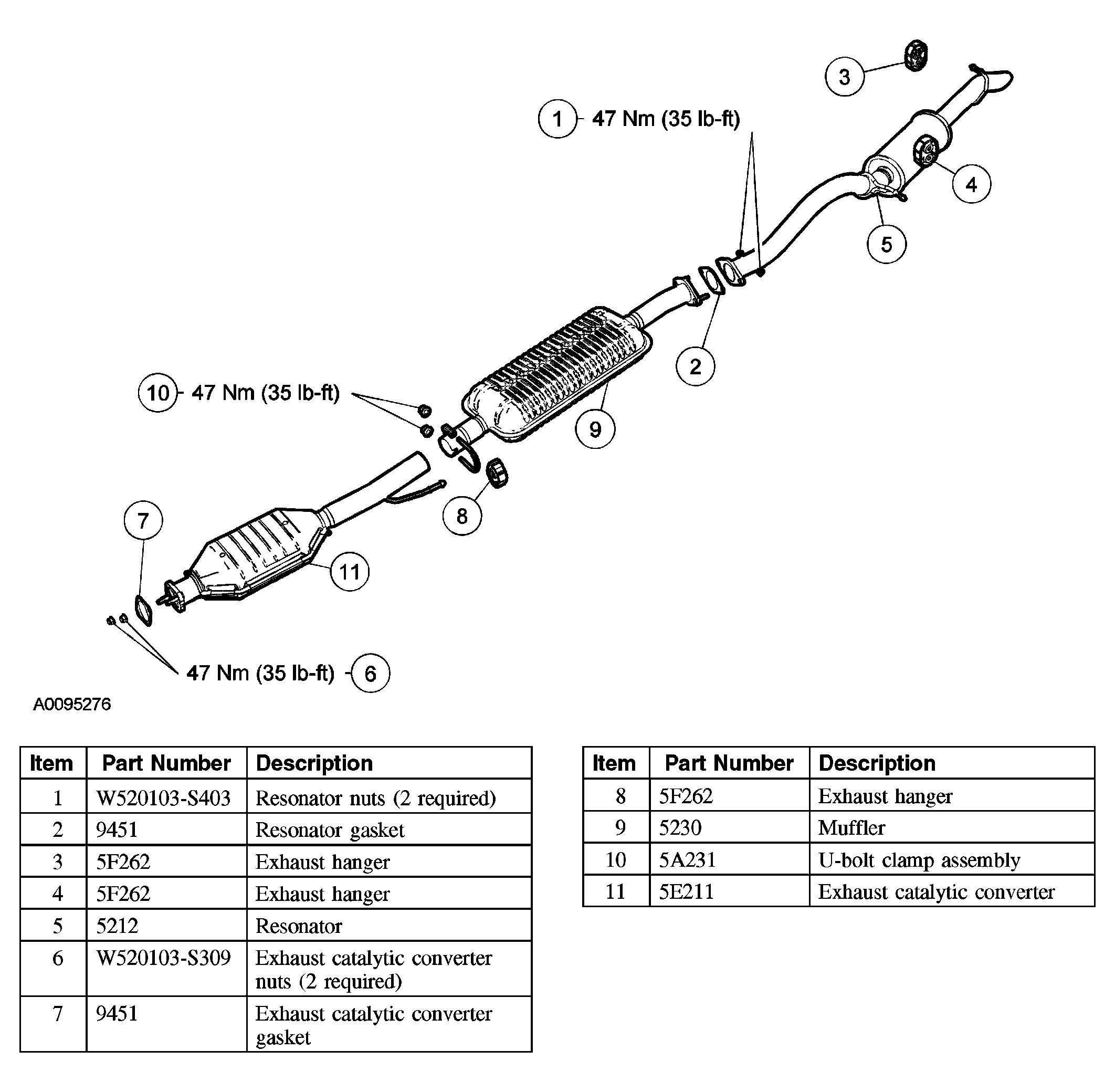

Fig 1: Exploded View And Torque Specification Of Exhaust System With Torque Specifications
G03902000Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the GENERAL PROCEDURES .
