Home >> Ford >> 2005 >> Escape Base, 2.3 Z, FWD, Standard >> Repair and Diagnosis >> Electrical >> Charging Systems >> Battery, Mounting And Cables >> Removal And Installation >> Battery Cables - 2.3L >> Notes

Battery Cables - 2.3L: Notes

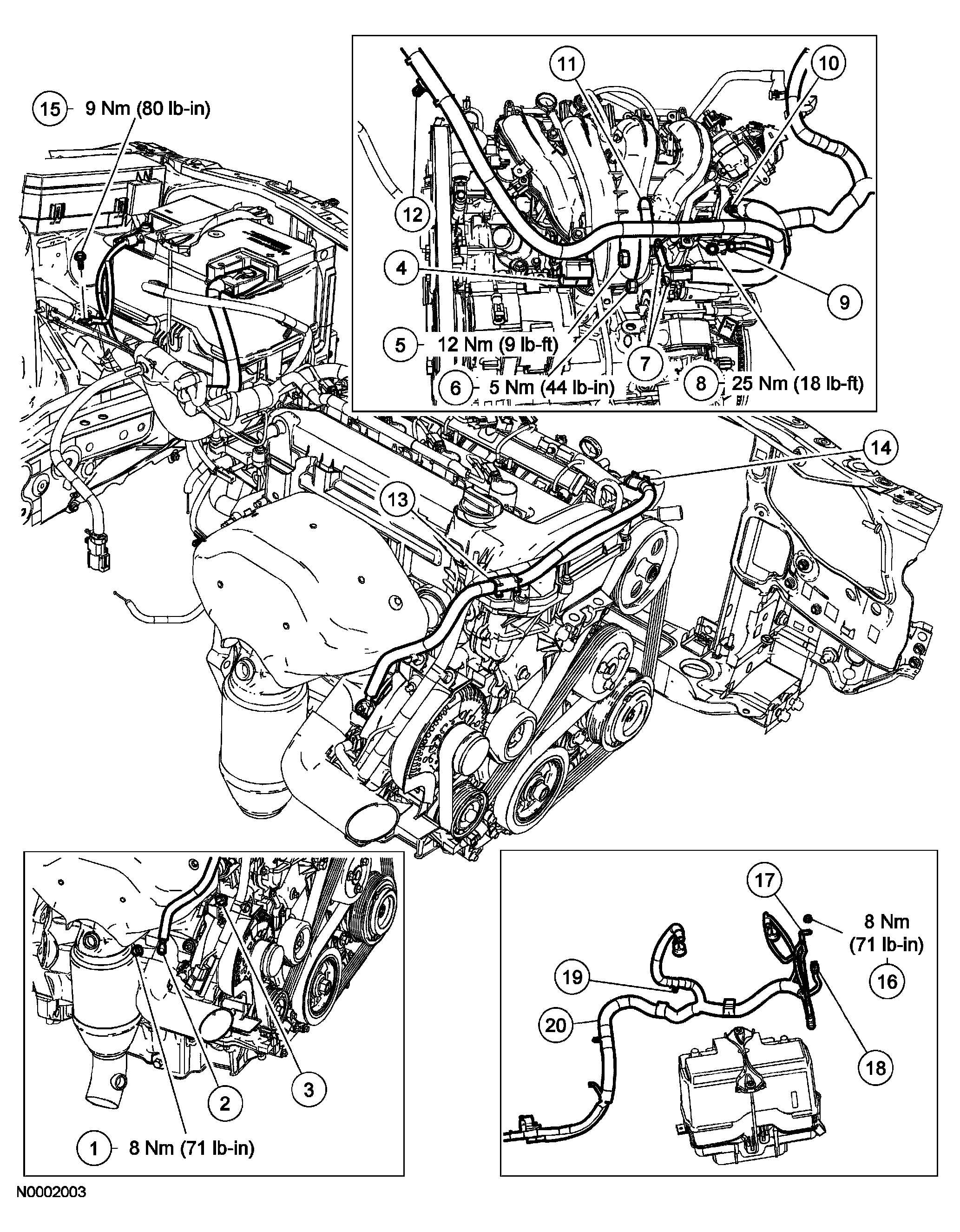

Fig 1: Displaying Battery Cables - 2.3L And Torque Specifications (1 Of 2)
G03902703Courtesy of FORD MOTOR CO.

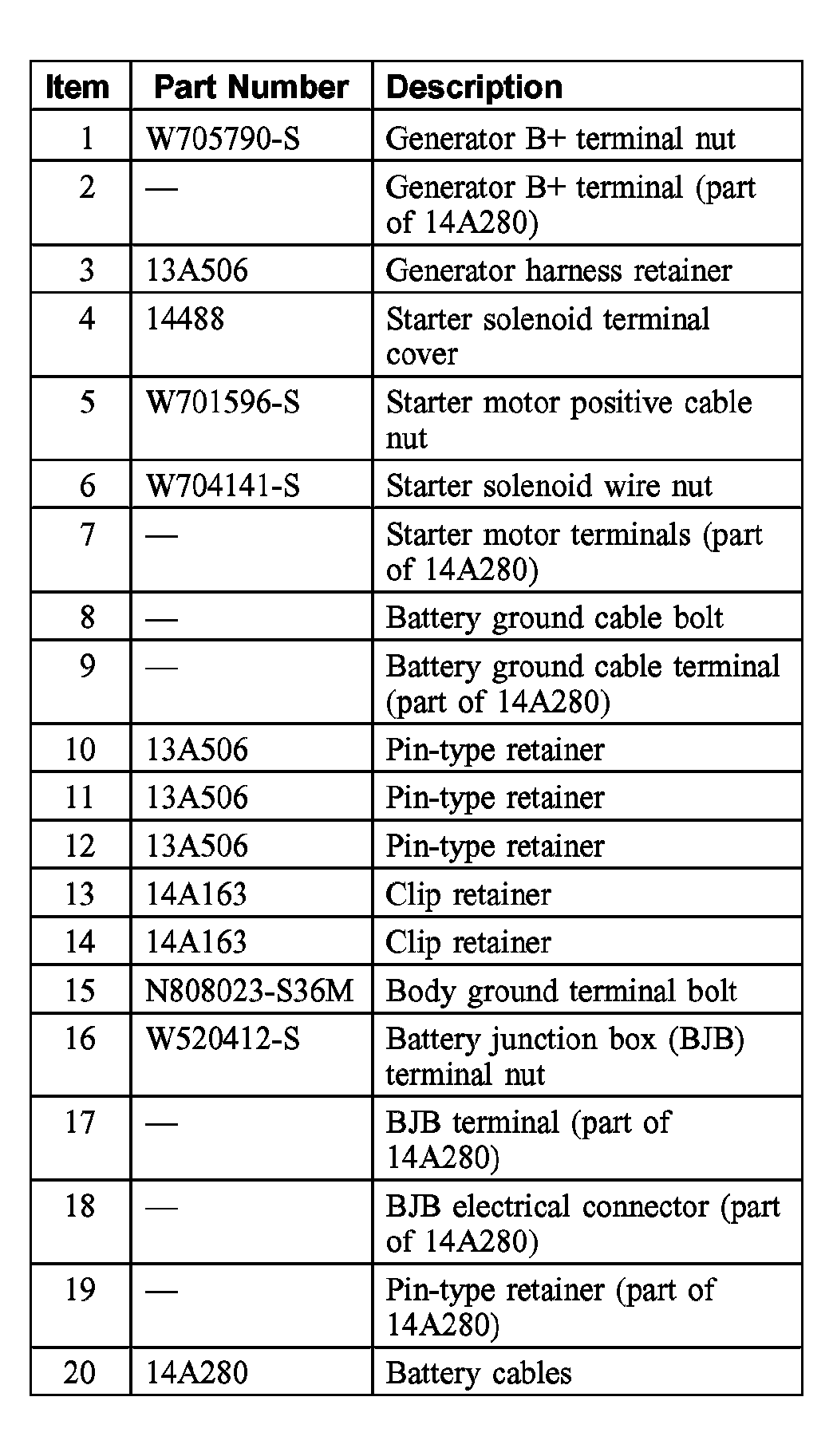

Fig 2: Displaying Battery Cables - 2.3L And Torque Specifications (2 Of 2)
G03902704Courtesy of FORD MOTOR CO.
