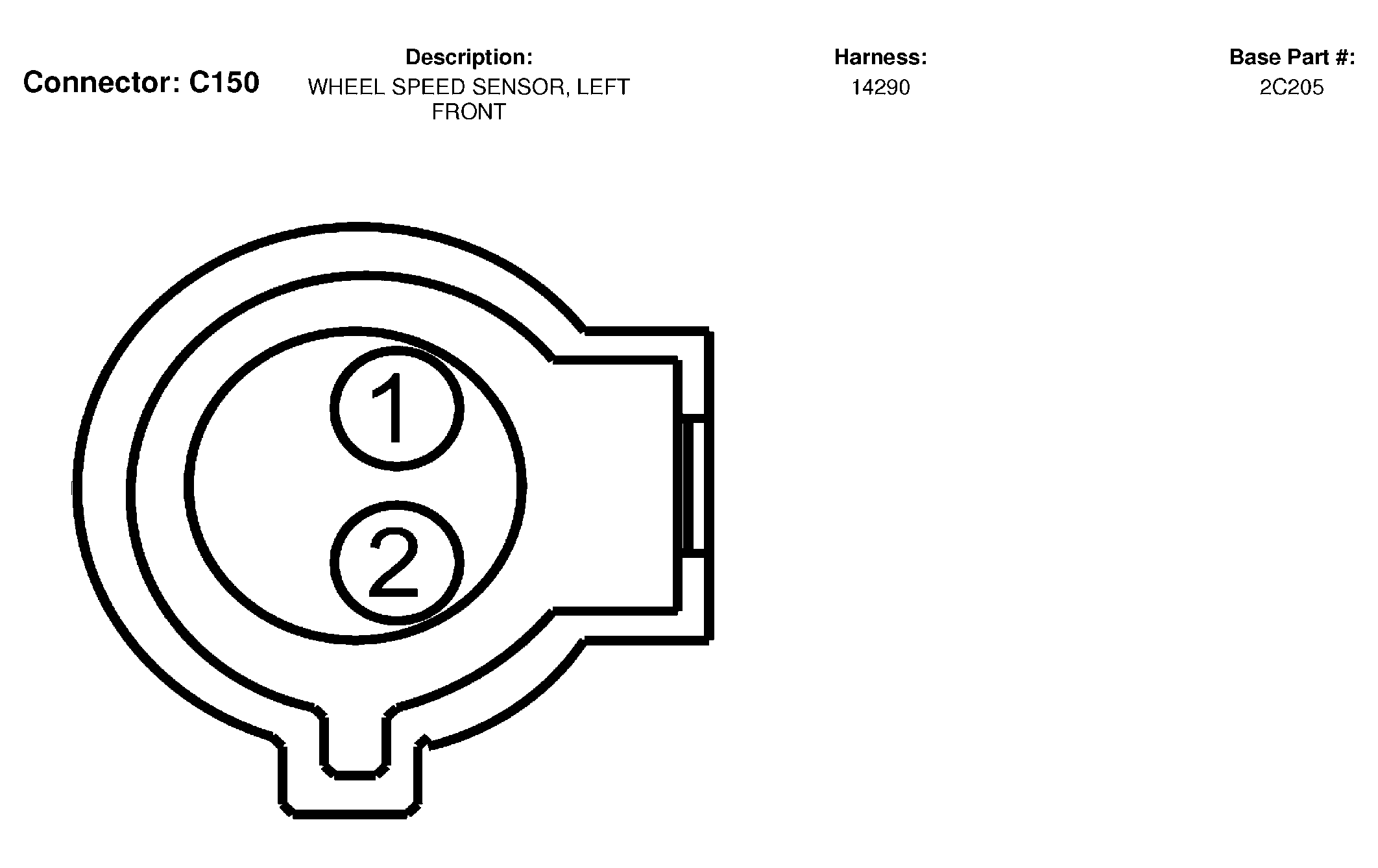

Wheel Speed Sensor, Left Front Connector End View (C150)
Courtesy of FORD MOTOR CO. C150 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
522 (TN-BK) |
20 |
Wheel speed sensor, left front - |
|
| 2 |
521 (TN-OG) |
20 |
Wheel speed sensor, left front + |
|
