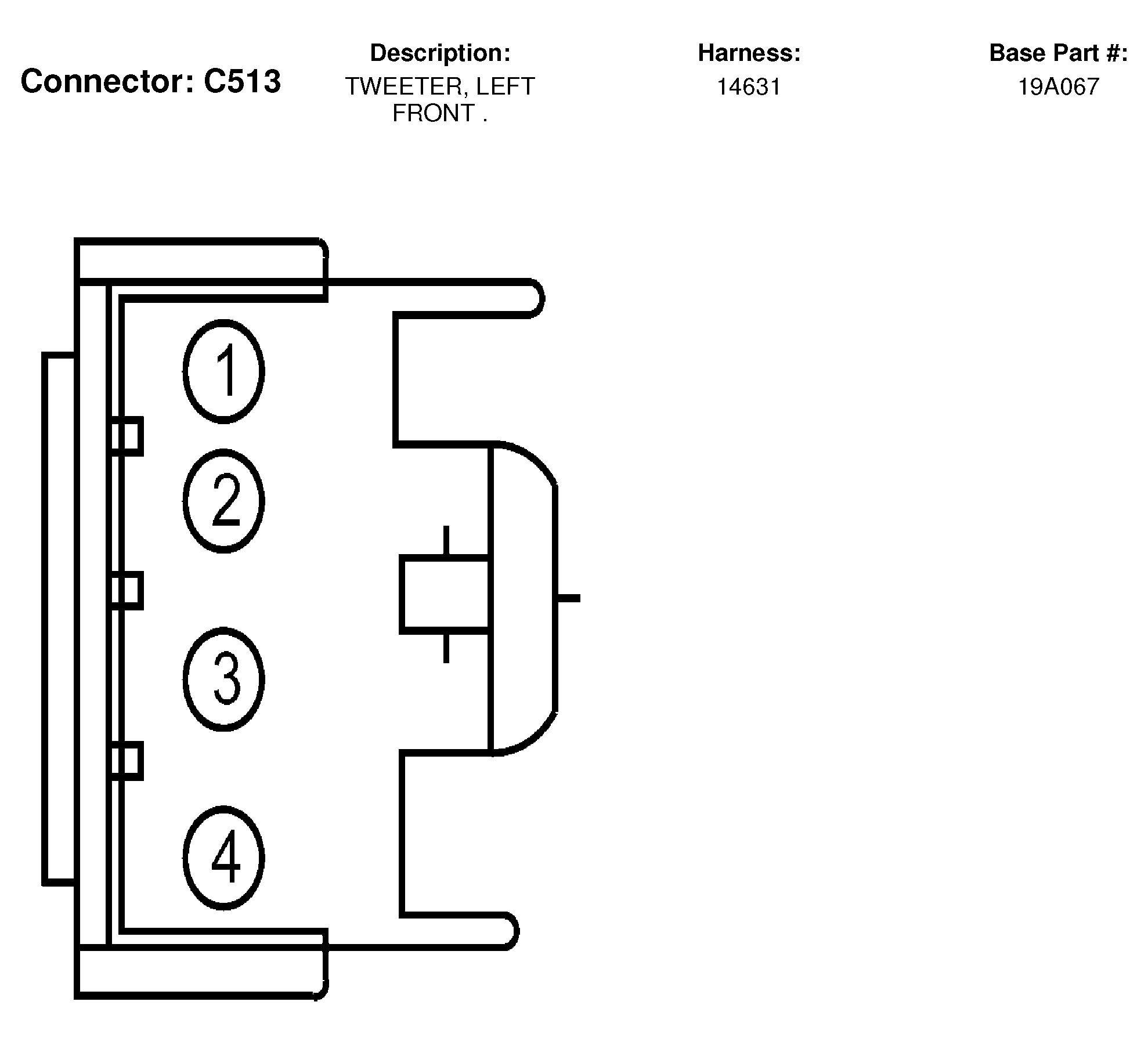

Tweeter, Left Front Connector End View (C513)
Courtesy of FORD MOTOR CO. C513 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
804 (OG-LG) |
20 |
Tweeter, left front + |
|
| 2 |
813 (LB-WH) |
20 |
Tweeter, left front - |
|
| 3 |
176 (PK-LG) |
20 |
Speaker, left front + |
|
| 4 |
179 (OG-RD) |
20 |
Speaker, left front - |
|
