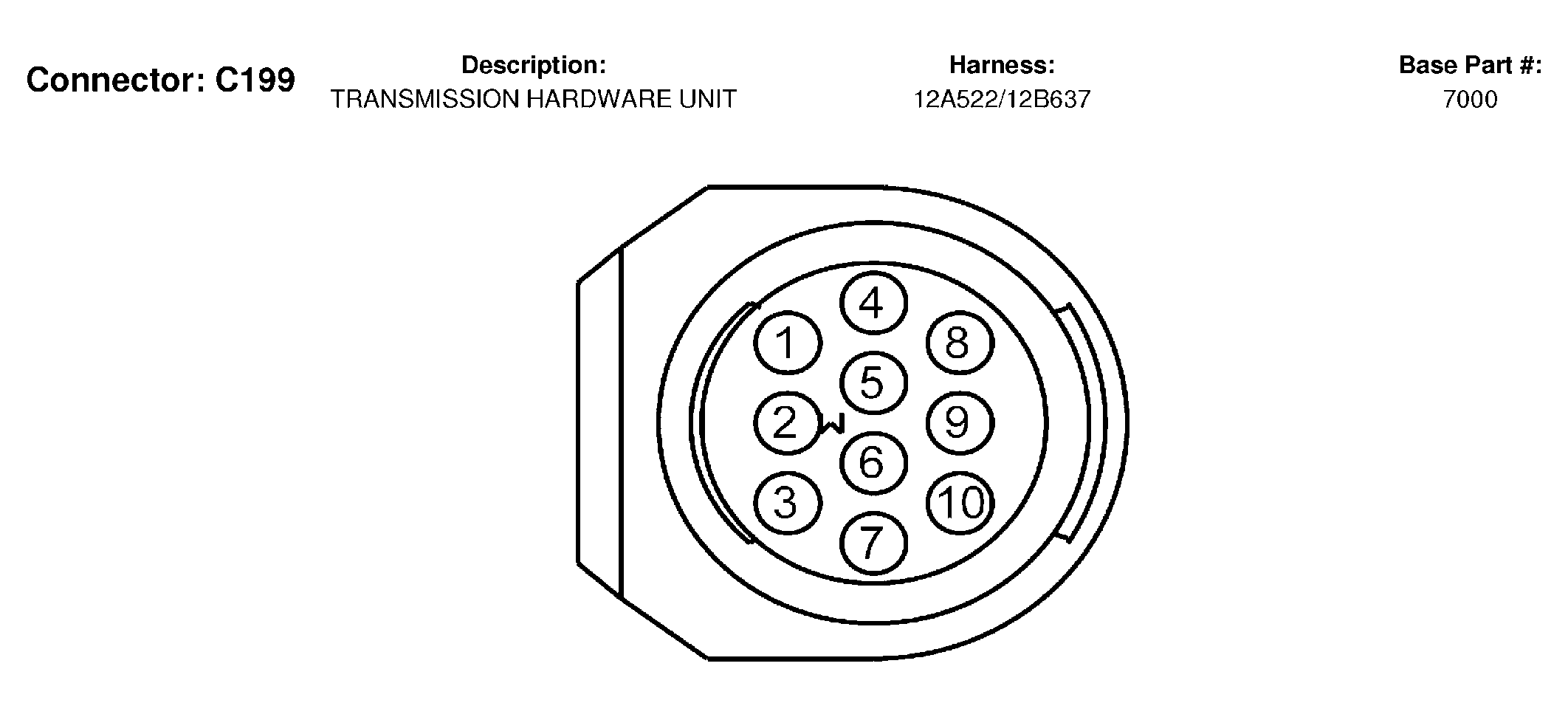

Transmission Hardware Unit Connector End View (C199)
C199 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 327 (BK-OG) | 20 | Transmission Fluid Temperature (TFT) sensor signal | |
| 2 | 359 (GY-RD) | 20 | Signal return | |
| 3 | 100 (WH-RD) | 20 | PCM power relay output | 3.0L |
| 3 | 100 (WH-RD) | 16 | PCM power relay output | 2.3L |
| 4 | 480 (VT-YE) | 20 | Torque Converter Clutch (TCC) solenoid control | |
| 5 | 925 (WH-YE) | 20 | Shift solenoid B | |
| 6 | 100 (WH-RD) | 20 | PCM power relay output | 3.0L |
| 6 | 100 (WH-RD) | 16 | PCM power relay output | 2.3L |
| 7 | 923 (OG-BK) | 20 | Shift solenoid A | |
| 8 | 971 (PK-BK) | 20 | 3-2T/CCS solenoid | |
| 9 | 100 (WH-RD) | 20 | PCM power relay output | 3.0L |
| 9 | 100 (WH-RD) | 16 | PCM power relay output | 2.3L |
| 10 | 315 (VT-OG) | 20 | Electronic Pressure Control (EPC) solenoid control |
