Seat Position Sensor, Driver Connector End View (C356)

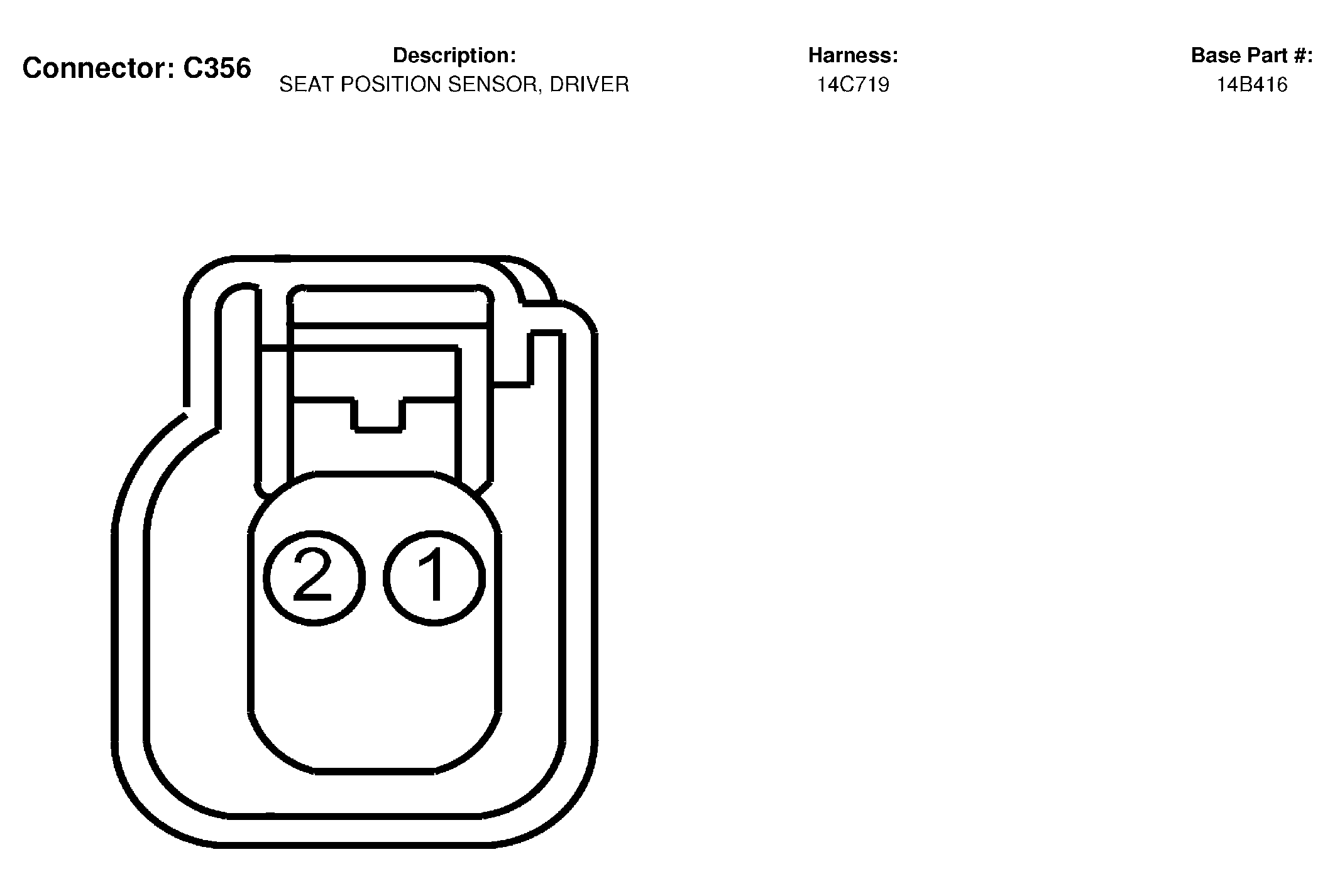

Fig 1: Seat Position Sensor, Driver Connector End View (C356)
G03993285Courtesy of FORD MOTOR CO.
C356 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 1203 (BK-LB) 20 Ground
2 1520 (LG) 20 Seat position sensor, driver feed
