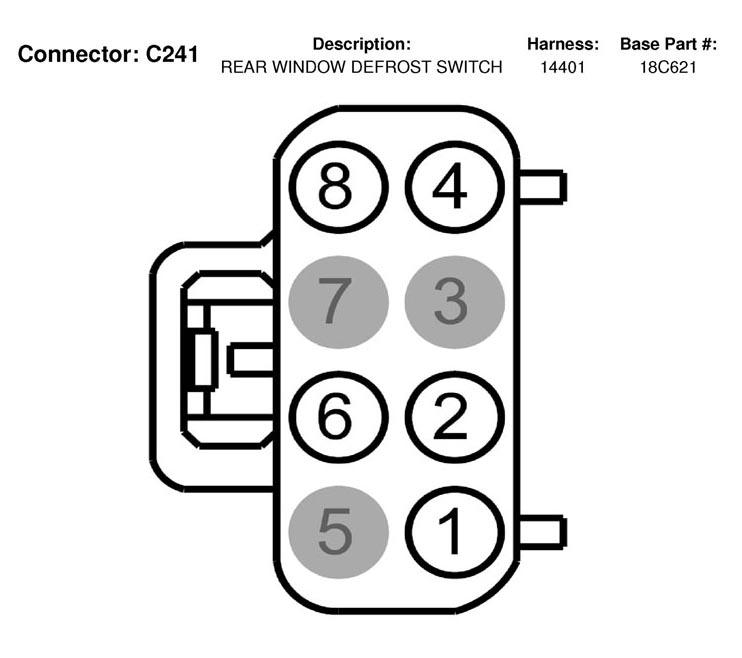

Rear Window Defrost Switch Connector End View (C241)
C241 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 570 (BK-WH) | 20 | Ground | |
| 2 | 1010 (DB-OG) | 20 | Rear window defrost switch signal | |
| 3 | * | * | not used | |
| 4 | 57 (BK) | 22 | Ground | |
| 5 | * | * | not used | |
| 6 | 59 (DG-VT) | 20 | Rear defrost relay output | |
| 7 | * | * | not used | |
| 8 | 19 (LB-RD) | 22 | Instrument illumination feed |
