Power Point Connector End View (C2033)

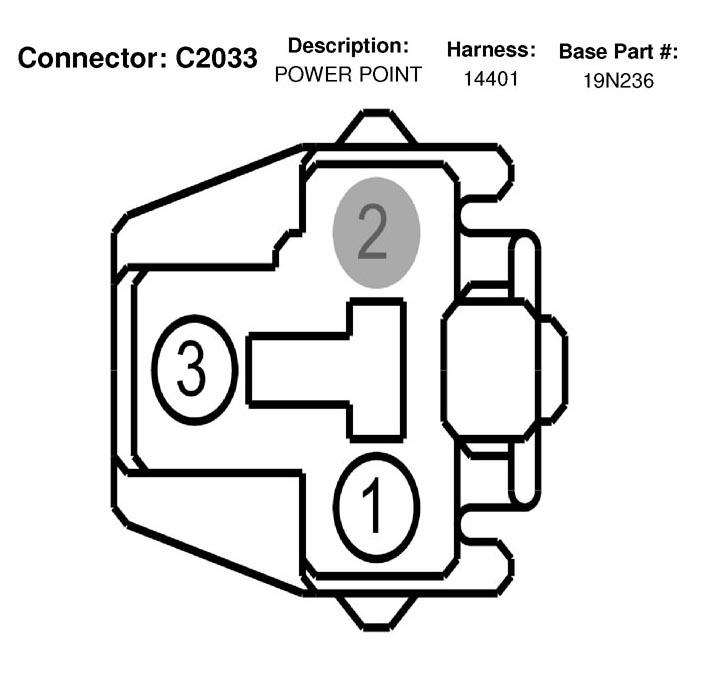

Fig 1: Power Point Connector End View (C2033)
G03993393Courtesy of FORD MOTOR CO.
C2033 CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 1049 (BR-PK) 16 Voltage supplied at all times (overload protected)
2 * * not used
3 57 (BK) 16 Ground
