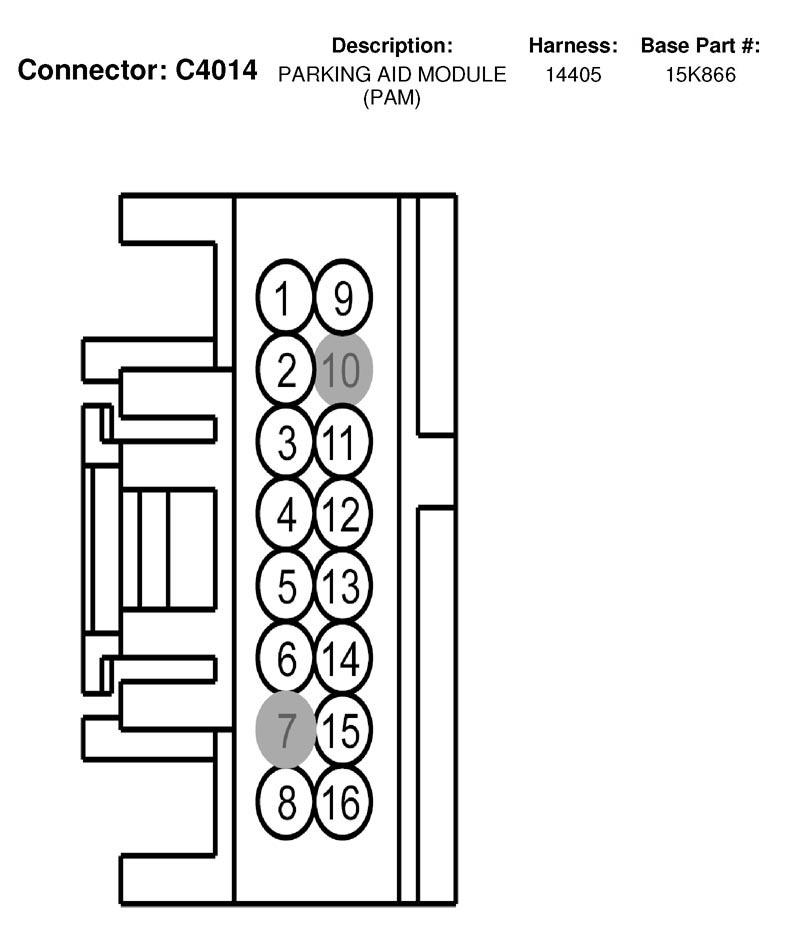

Parking Aid Module (PAM) Connector End View (C4014)
C4014 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | 1040 (RD-BK) | 18 | Voltage supplied in Start and Run (overload protected) | |
| 2 | 1437 (BK-PK) | 20 | Parking aid speaker + | |
| 3 | 140 (BK-PK) | 18 | Reverse relay output | |
| 4 | 57 (BK) | 20 | Ground | |
| 5 | 1436 (VT-OG) | 20 | On/Off signal, Light emitting diode (LED) control | |
| 6 | 1438 (DG) | 20 | Parking aid speaker - | |
| 7 | * | * | not used | |
| 8 | 70 (LB-WH) | 20 | ISO Bus | |
| 9 | 1439 (BR-PK) | 20 | Parking aid sensor, power | |
| 10 | * | * | not used | |
| 11 | 1435 (DG-VT) | 20 | On/Off signal | |
| 12 | 1440 (DG-YE) | 20 | Parking aid sensor, return | |
| 13 | 1443 (WH-LB) | 20 | Parking aid sensor, inner right signal | |
| 14 | 1442 (DG-WH) | 20 | Parking aid sensor, inner left signal | |
| 15 | 1441 (WH-LG) | 20 | Parking aid sensor, outer left signal | |
| 16 | 1444 (DB-YE) | 20 | Parking aid sensor, outer right signal |
