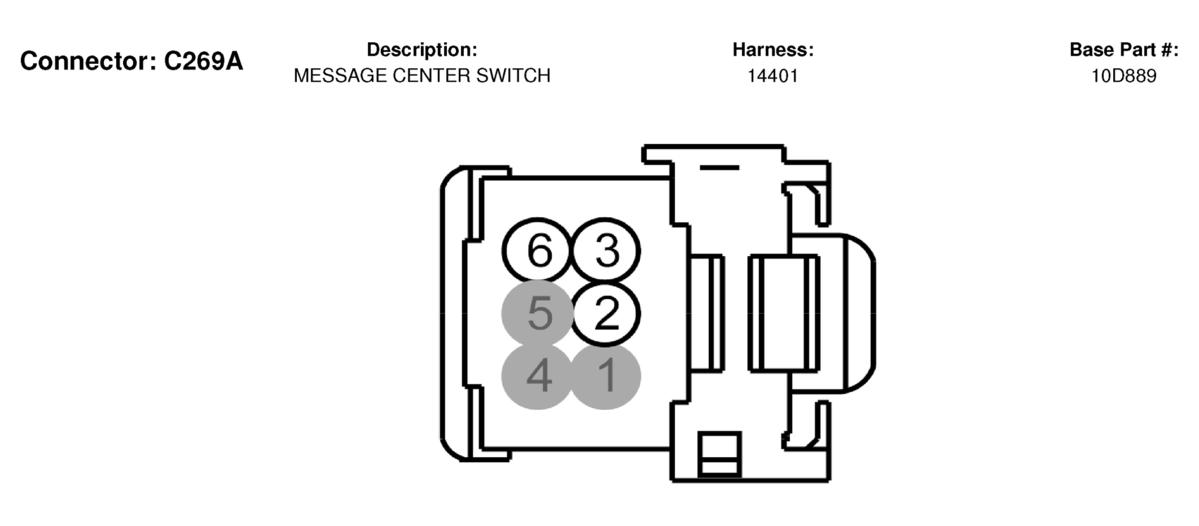

Message Center Switch Connector End View (C269A)
Courtesy of FORD MOTOR CO. C269A CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* |
* |
not used |
|
| 2 |
570 (BK-WH) |
20 |
Ground |
|
| 3 |
19 (LB-RD) |
20 |
Instrument illumination feed |
|
| 4 |
* |
* |
not used |
|
| 5 |
* |
* |
not used |
|
| 6 |
1411 (GY-OG) |
20 |
Message Center Information 1 signal |
|
