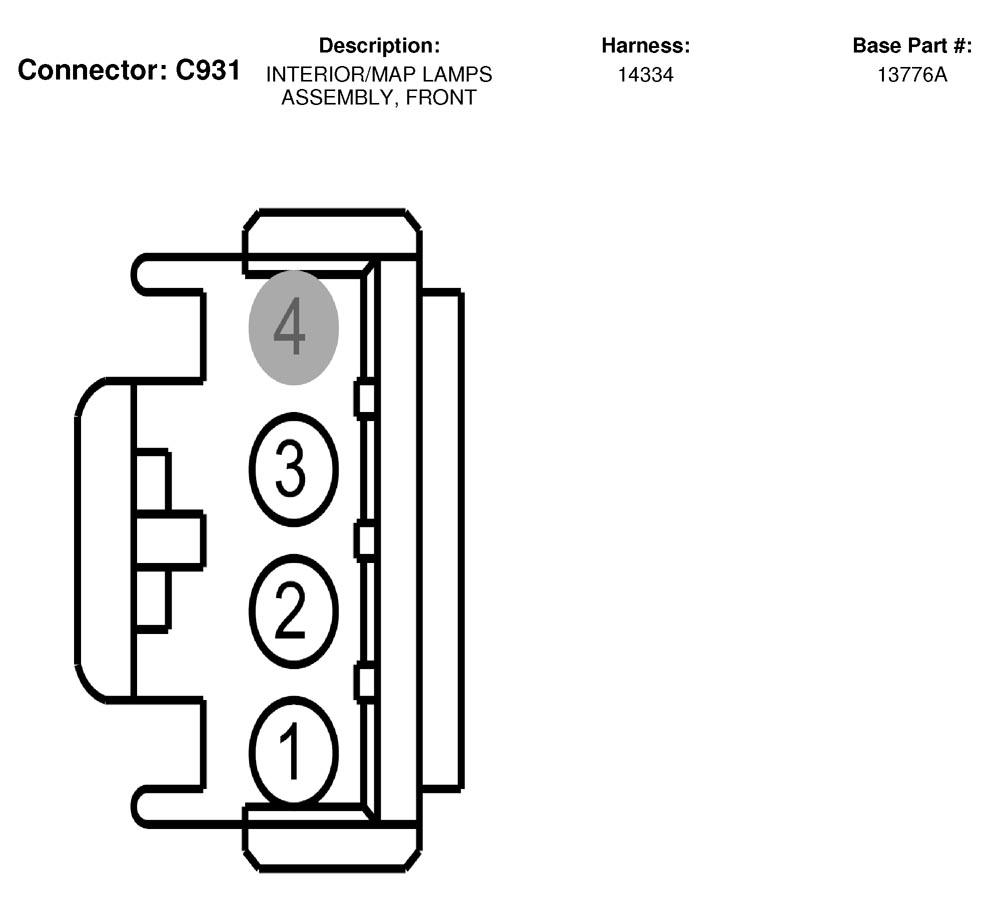

Interior/MAP Lamps Assembly, Front Connector End View (C931)
Courtesy of FORD MOTOR CO. C931 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
1005 (VT-OG) |
20 |
Battery saver feed |
|
| 2 |
57 (BK) |
20 |
Ground |
|
| 3 |
401 (PK) |
20 |
Interior lamp signal return |
|
| 4 |
* |
* |
not used |
|
