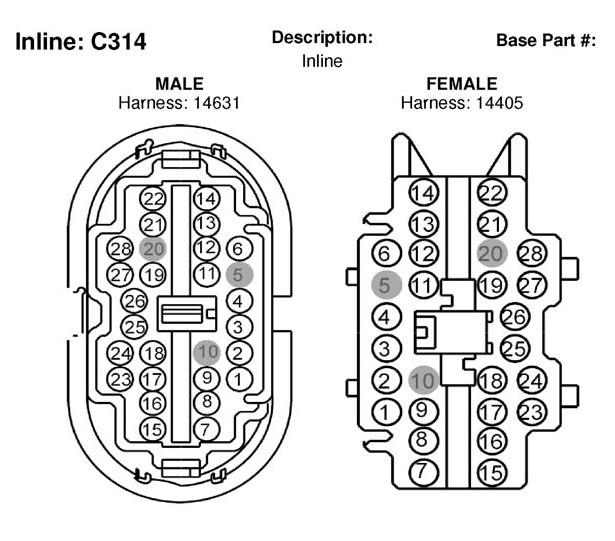

Inline Connector End View (C314)
C314 CONNECTOR SPECIFICATION
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | 1312 (LG-BK) | 20 | |
| 2 | 59 (DG-VT) | 14 | |
| 3 | 813 (LB-WH) | 20 | |
| 4 | 1316 (WH-VT) | 20 | |
| 5 | * | * | |
| 6 | 1088 (PK-WH) | 20 | |
| 7 | 570 (BK-WH) | 20 | |
| 8 | 78 (LB-YE) | 20 | |
| 9 | 66 (LB) | 20 | |
| 10 | * | * | |
| 11 | 540 (RD) | 20 | |
| 12 | 314 (TN-LB) | 14 | |
| 13 | 313 (WH-YE) | 14 | |
| 14 | 117 (PK-BK) | 16 | |
| 15 | 57 (BK) | 20 | male |
| 15 | 57 (BK) | 14 | female |
| 16 | 79 (LG-RD) | 20 | |
| 17 | 319 (YE-BK) | 14 | |
| 18 | 317 (GY-OG) | 14 | |
| 19 | 541 (DB) | 20 | |
| 20 | * | * | |
| 21 | 163 (RD-OG) | 16 | |
| 22 | 170 (RD-LB) | 14 | |
| 23 | 320 (RD-BK) | 14 | |
| 24 | 316 (YE-LB) | 14 | |
| 25 | 804 (OG-LG) | 20 | |
| 26 | 1317 (DB-LG) | 20 | |
| 27 | 542 (YE) | 20 | |
| 28 | 121 (YE-BK) | 20 |
