Generator Connector End View (C102B)

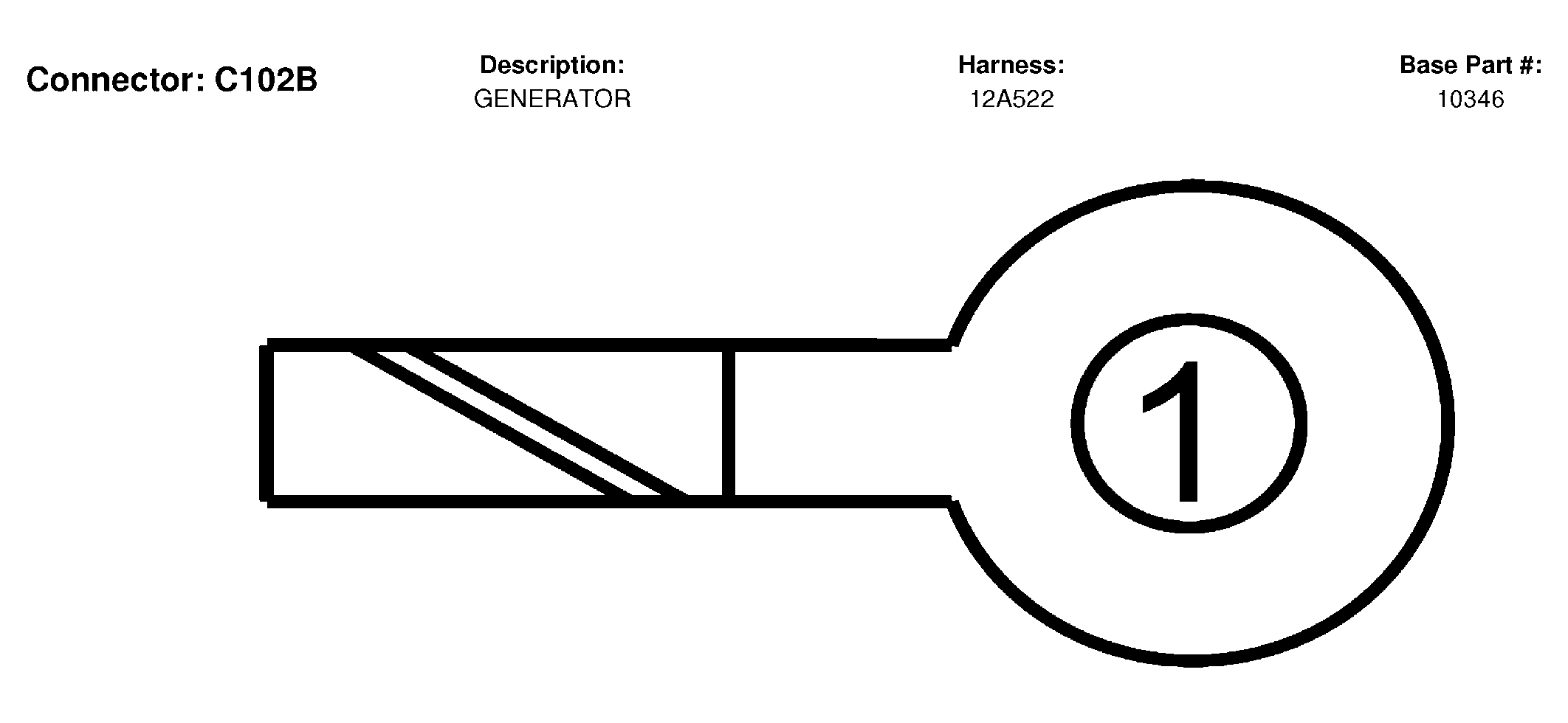

Fig 1: Generator Connector End View (C102B)
G03993184Courtesy of FORD MOTOR CO.
C102B CONNECTOR SPECIFICATION

Pin Circuit Gauge Circuit Function Qualifier
1 36 (YE-WH) 06 Voltage supplied at all times (overload protected)
