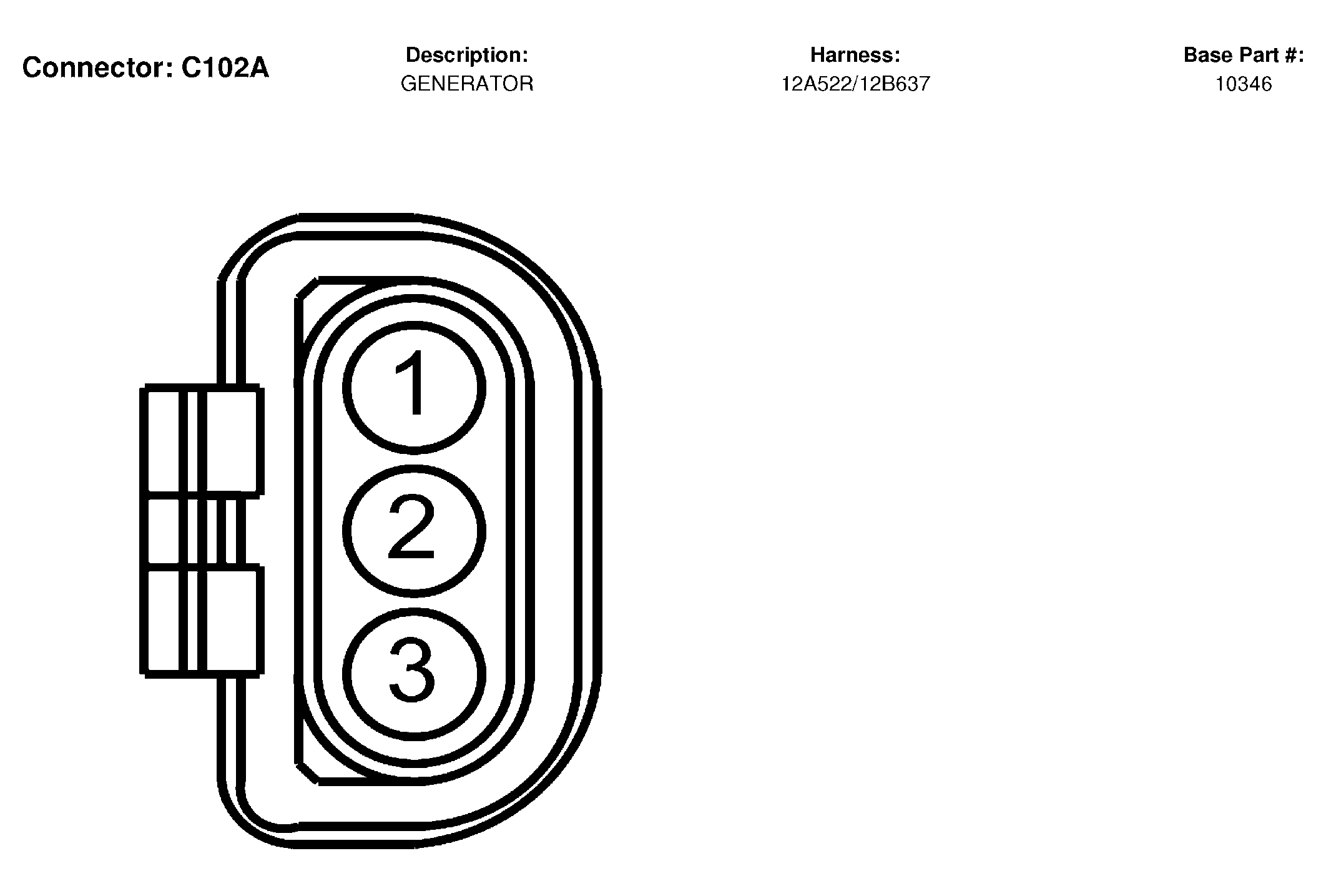

Generator Connector End View (C102A)
Courtesy of FORD MOTOR CO. C102A CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
921 (GY-OG) |
20 |
Generator field signal monitor |
|
| 2 |
920 (BR-WH) |
20 |
Generator field control output |
|
| 3 |
112 (BK-YE) |
20 |
Voltage supplied at all times (overload protected) |
|
