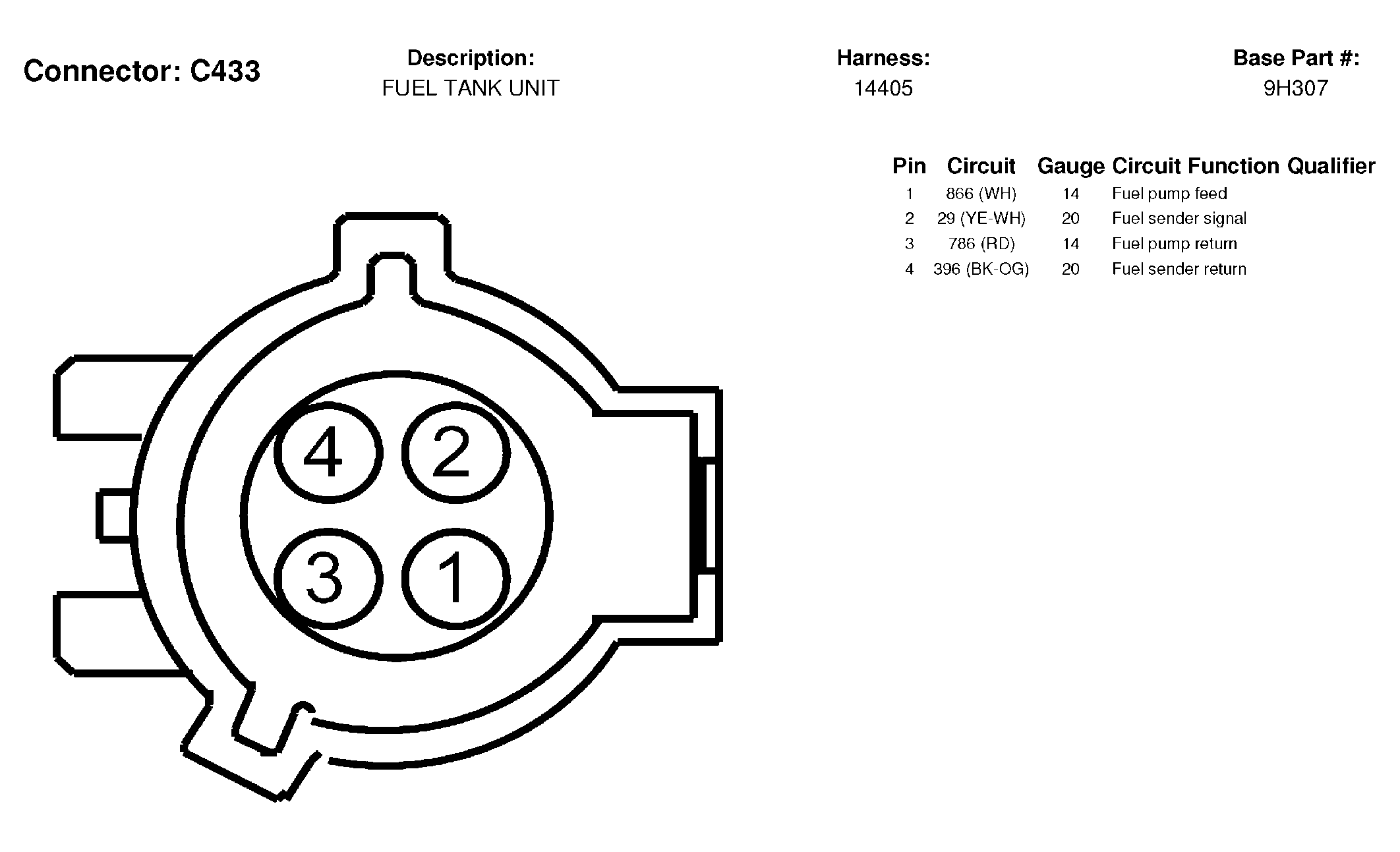

Fuel Tank Unit Connector End View (C433)
Courtesy of FORD MOTOR CO. C433 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
866 (WH) |
14 |
Fuel pump feed |
|
| 2 |
29 (YE-WH) |
20 |
Fuel sender signal |
|
| 3 |
786 (RD) |
14 |
Fuel pump return |
|
| 4 |
396 (BK-OG) |
20 |
Fuel sender return |
|
