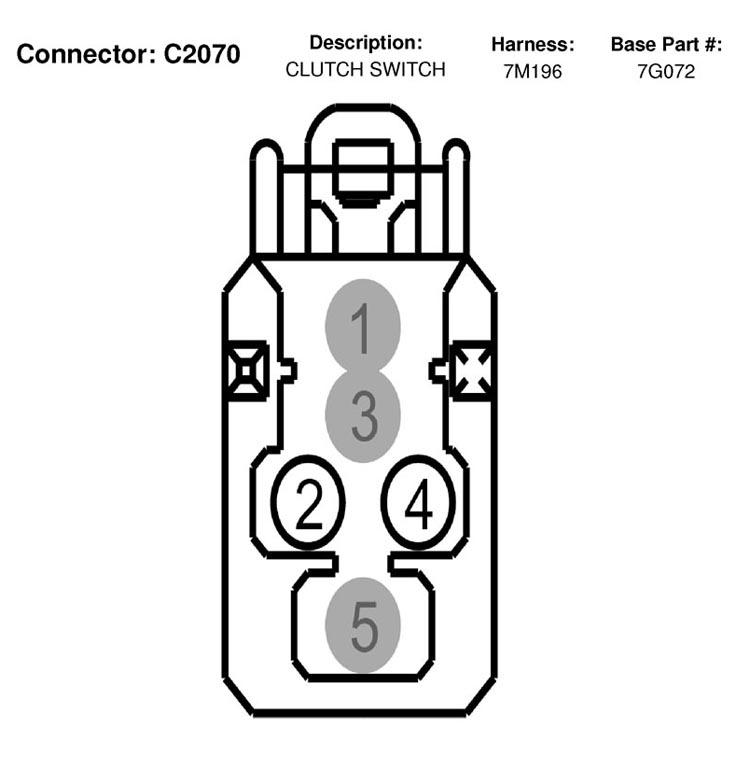

Cluster Switch Connector End View (C2070)
Courtesy of FORD MOTOR CO. C2070 CONNECTOR SPECIFICATION
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
* |
* |
not used |
|
| 2 |
359 (GY-RD) |
20 |
Signal return |
|
| 3 |
* |
* |
not used |
|
| 4 |
199 (LB-YE) |
20 |
Clutch switch signal (M/T) |
|
| 5 |
* |
* |
not used |
|
