Wheel Speed Sensor - Rear: Notes

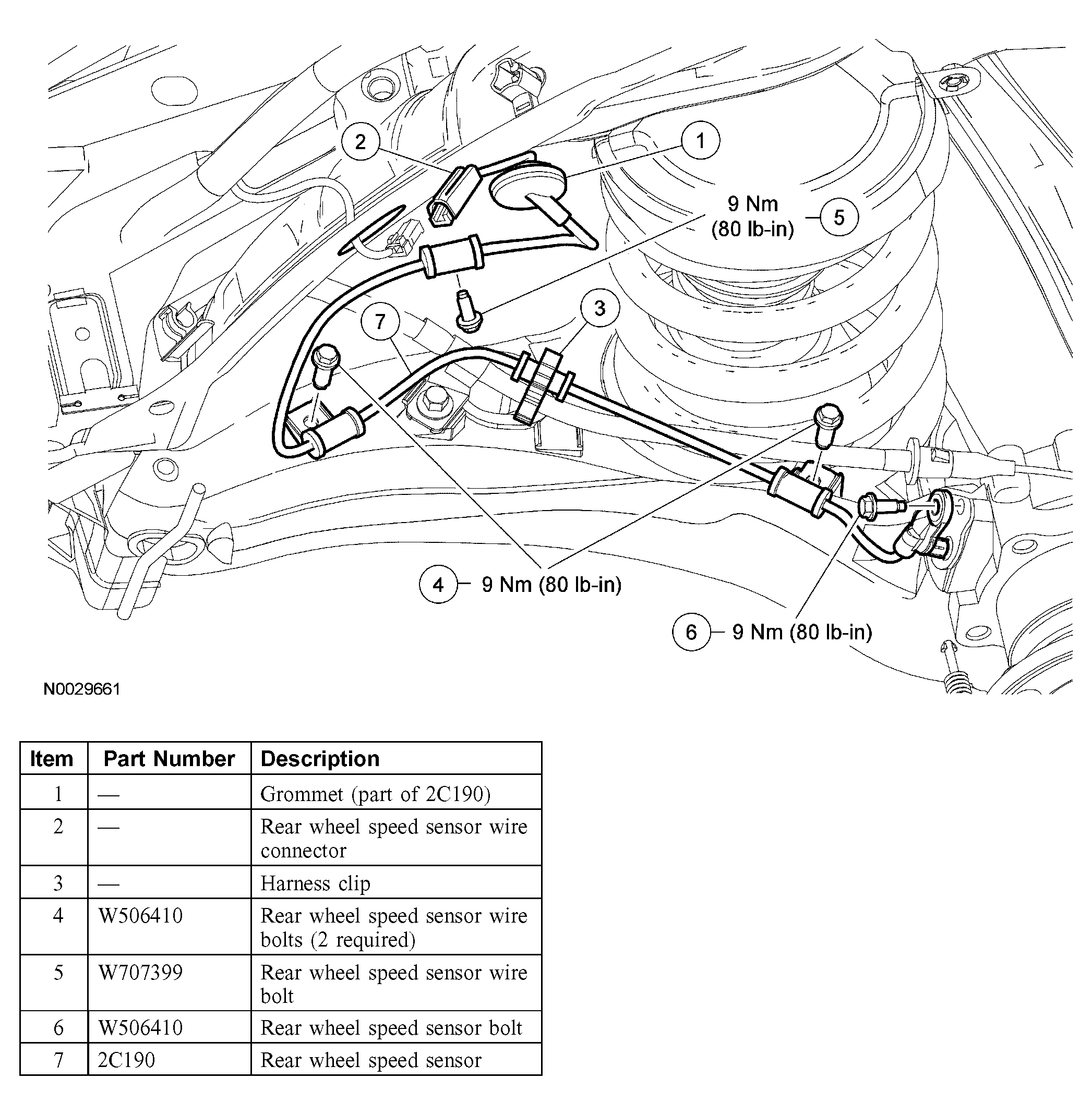

Fig 1: Wheel Speed Sensor - Rear With Torque Specifications

G03897542

Courtesy of FORD MOTOR CO.
