Home
>>
Ford
>>
2005
>>
Escape Base, 2.3 Z, FWD, Automatic
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission External Controls - Cd4E
>>
Removal And Installation
>>
Selector Lever
>>
Notes
Selector Lever: Notes

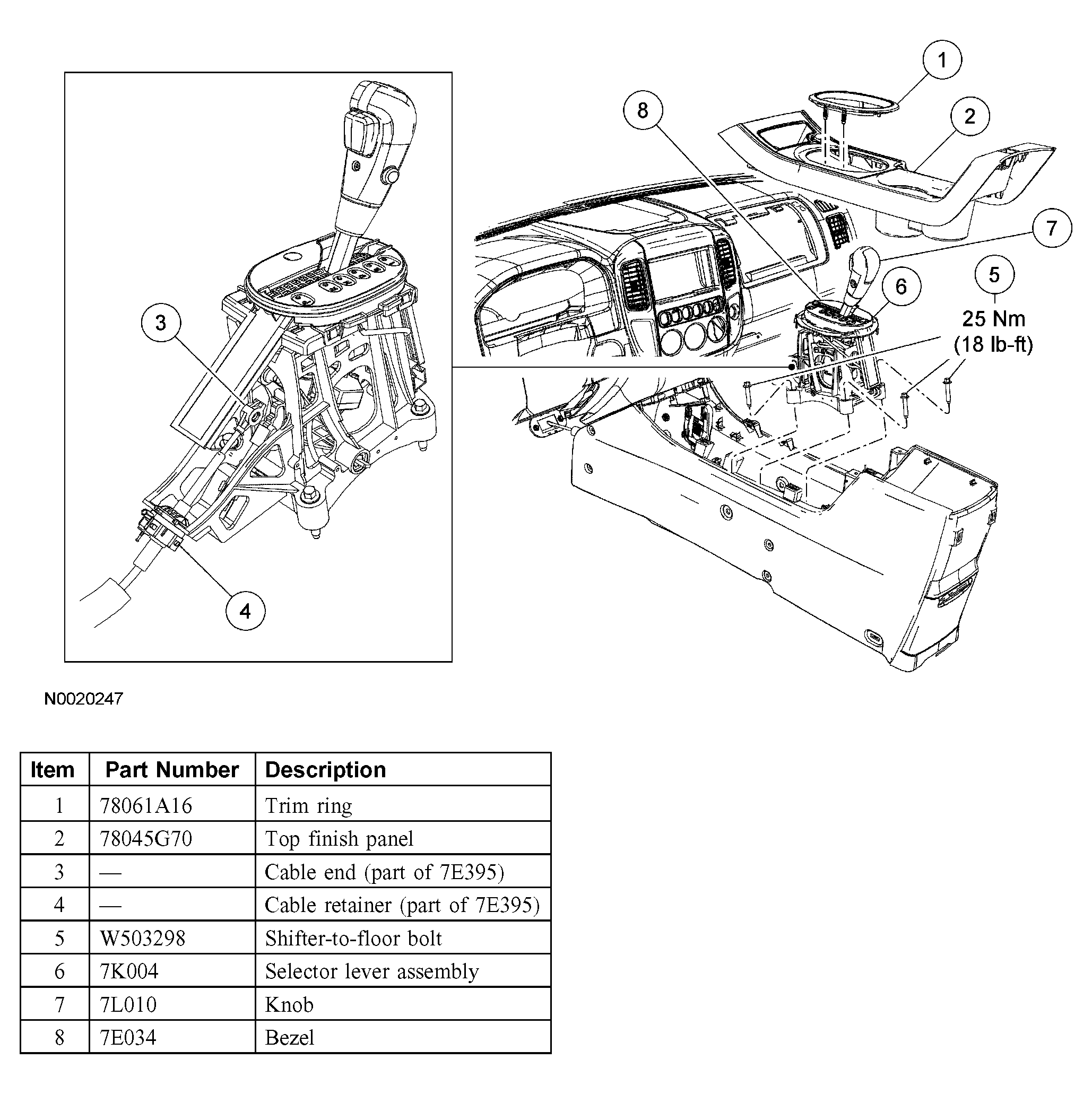

Fig 1: Removing/Installing Selector Lever Component With Torque Specifications
Courtesy of FORD MOTOR CO.
