Selector Lever Cable: Notes

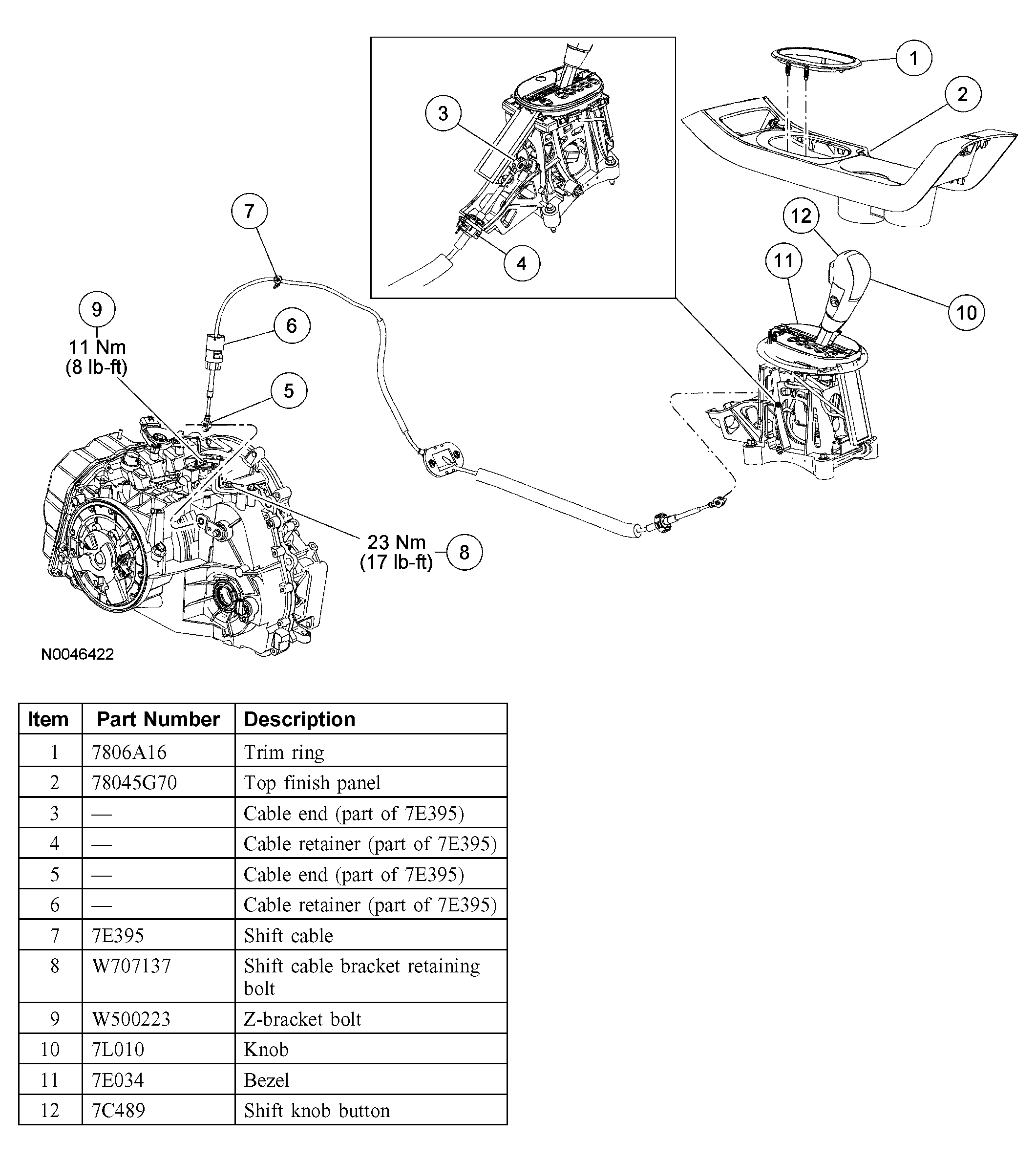

Fig 1: Removing/Installing Selector Lever Cable With Torque Specifications
G03901601Courtesy of FORD MOTOR CO.
