Transaxle Support Insulator - Lower, Front: Notes

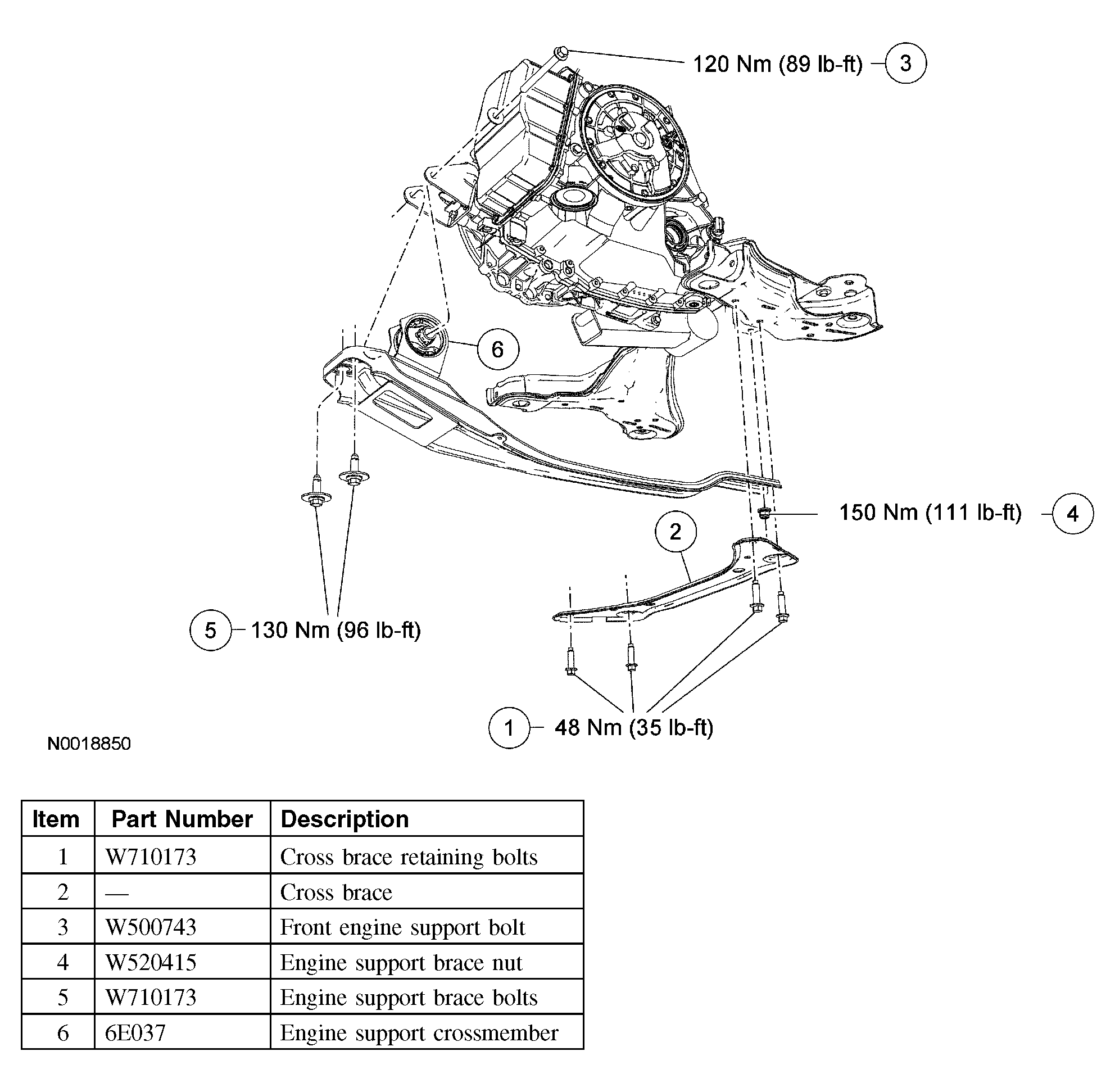

Fig 1: Transaxle Support Insulator Replacement Components -- Lower, Front With Torque Specifications

G03900710

Courtesy of FORD MOTOR CO.
