Main Control Cover: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Drain the engine coolant. For additional information, refer to ENGINE COOLING .
Remove the battery tray. For additional information, refer to CHARGING SYSTEM - GENERAL INFORMATION .

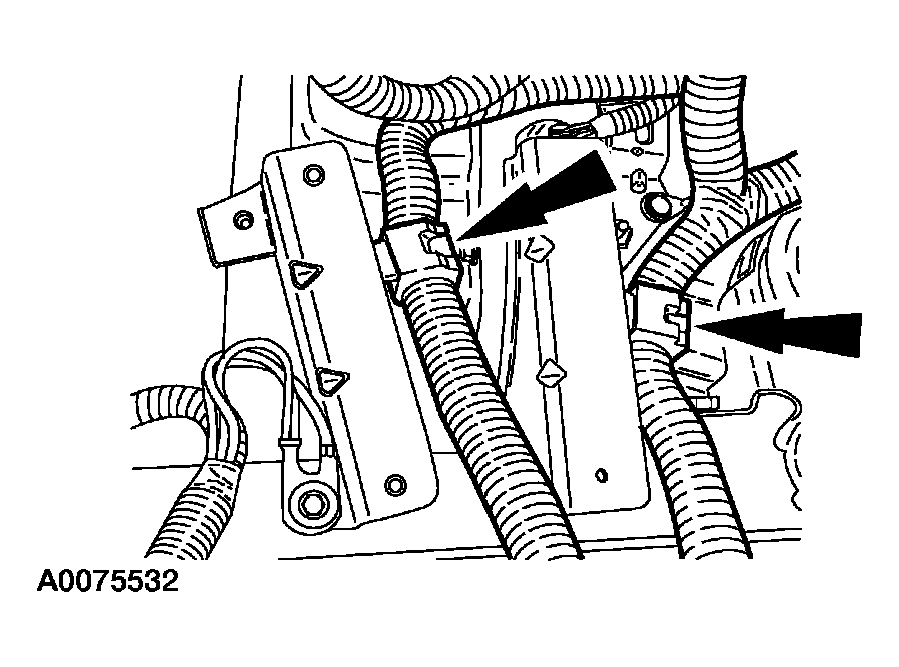

Disconnect the wiring harness from the battery tray bracket.

Fig 1: Disconnecting Wiring Harness From Battery Tray Bracket
Courtesy of FORD MOTOR CO.

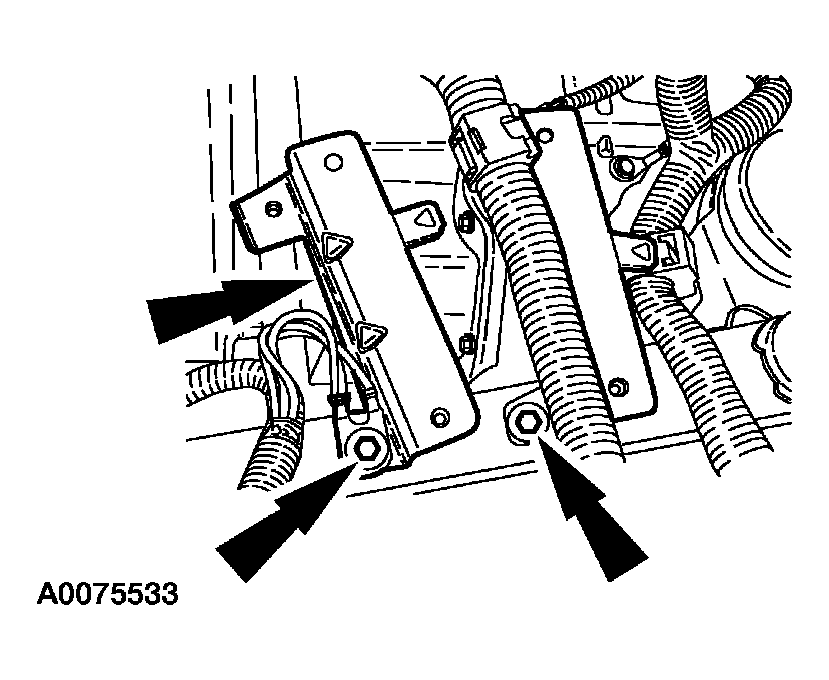

Remove the battery tray bracket.

Fig 2: Removing Battery Tray Bracket
Courtesy of FORD MOTOR CO.

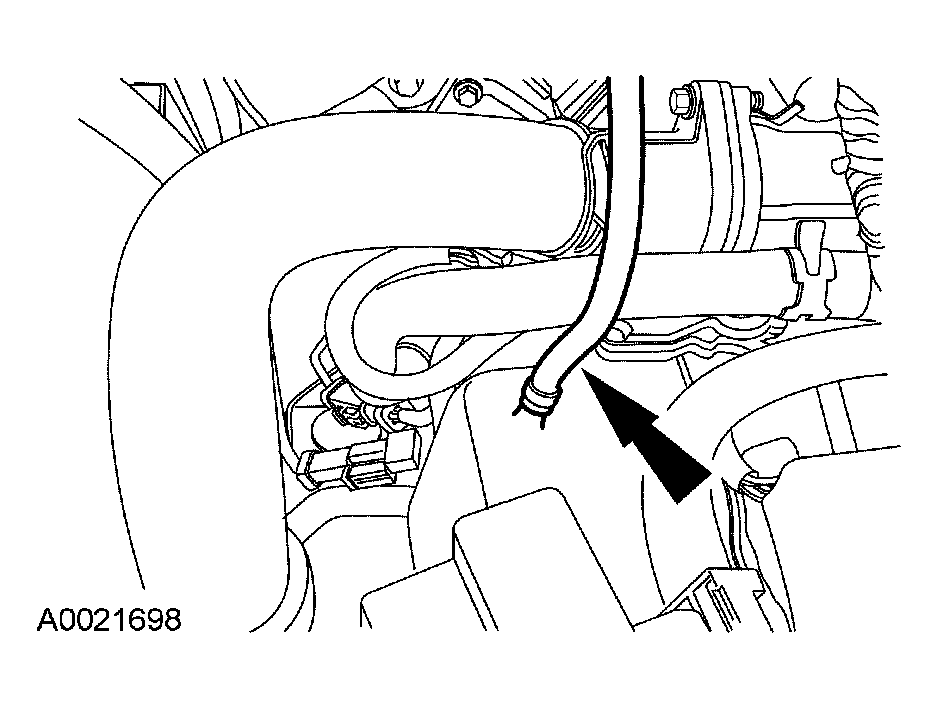

Disconnect the vent hose from the main control cover.

Fig 3: Disconnecting Vent Hose From Main Control Cover
Courtesy of FORD MOTOR CO.
Remove the lower radiator hose and position aside.

Fig 4: Removing Lower Radiator Hose And Position Aside
Courtesy of FORD MOTOR CO.

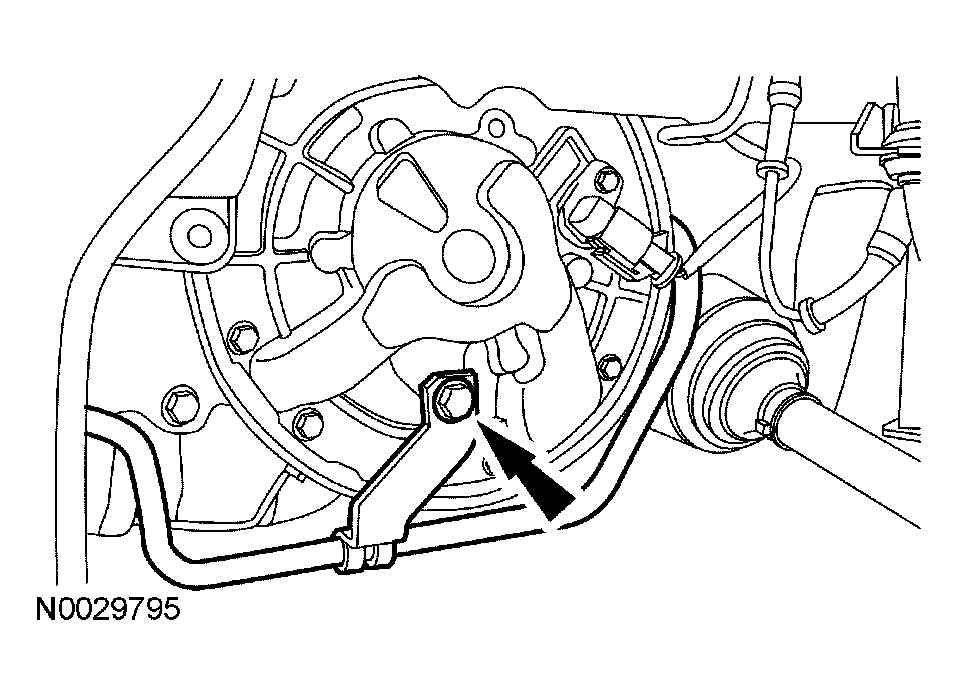

Remove the transmission fluid cooler tube bracket bolt.

Fig 5: Removing Transmission Fluid Cooler Tube Bracket Bolt
Courtesy of FORD MOTOR CO.

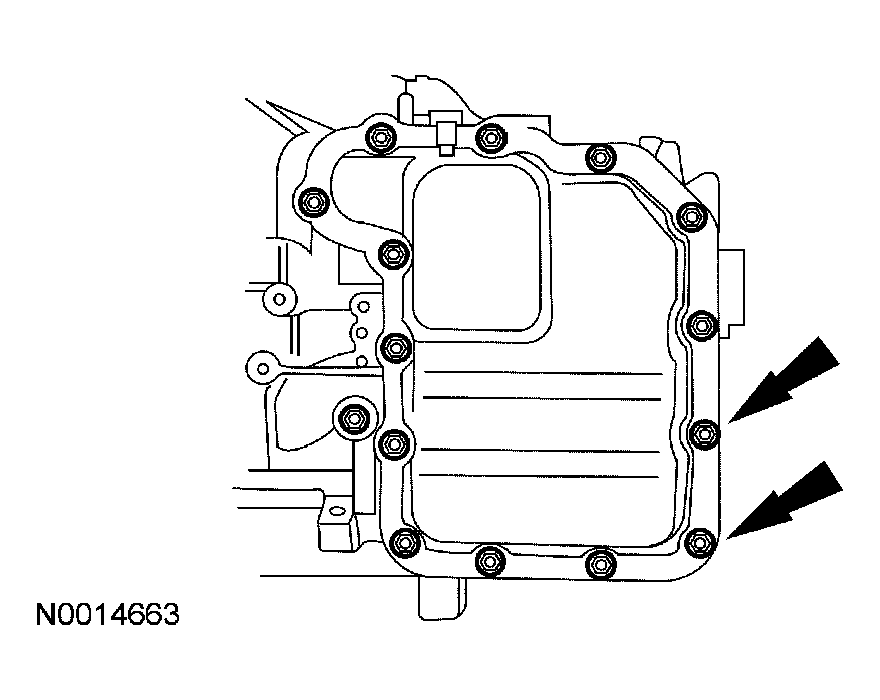

Remove the main control cover bolts, cooler bypass studs and the cover.

Fig 6: Removing Main Control Cover Bolts, Cooler Bypass Studs And Cover
Courtesy of FORD MOTOR CO.

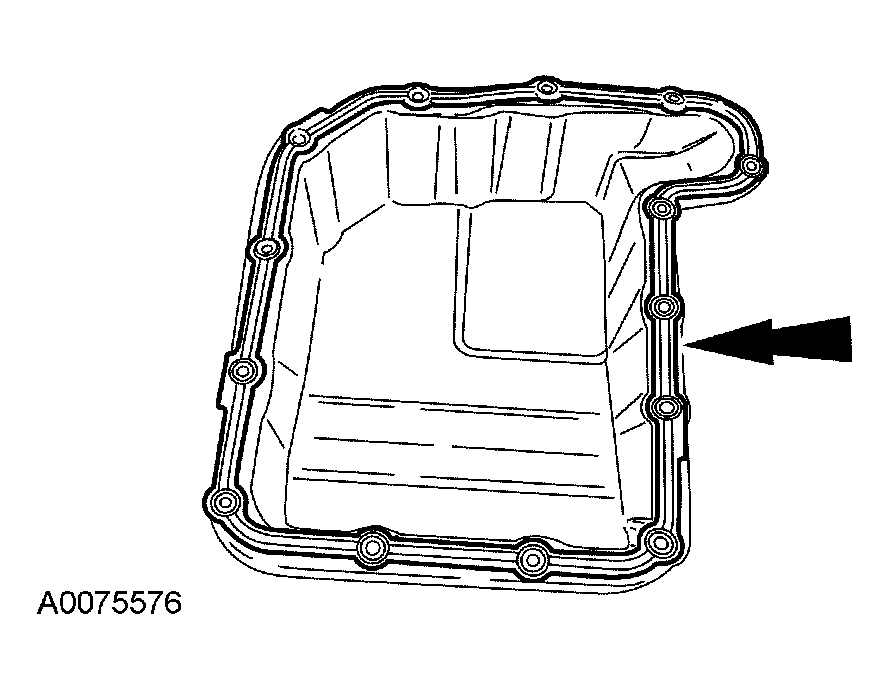

NOTE: Do not discard the gasket. It is a reusable type. Inspect the gasket for damage. Install a new gasket as necessary.

Fig 7: Removing Main Control Cover Gasket

Courtesy of FORD MOTOR CO.
