Chain Sprockets: Disassembly

CAUTION: Clamp the sprocket in a soft-jawed vise.

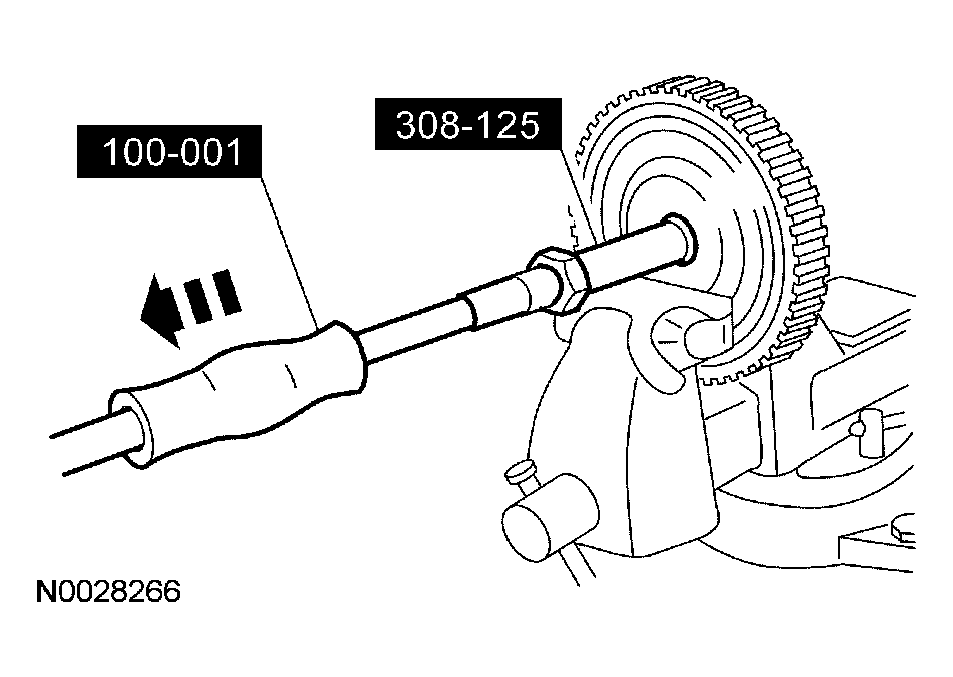

Fig 1: Removing No 16 Reverse/Overdrive Ring Gear Bearing

Courtesy of FORD MOTOR CO.

Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.
Using the special tools, remove the No. 17 stator support bearing, as necessary.

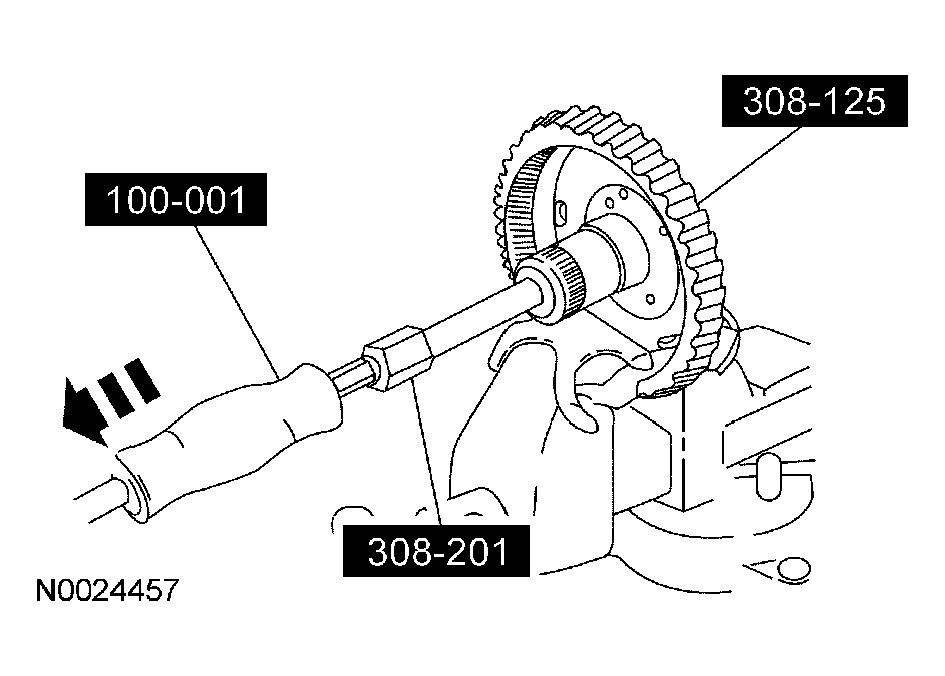

Fig 2: Removing No 17 Stator Support Bearing
Courtesy of FORD MOTOR CO.
