Instrument Panel - Exploded View

Fig 1: Identifying Instrument Panel Finish Panels Components
G03903376Courtesy of FORD MOTOR CO.

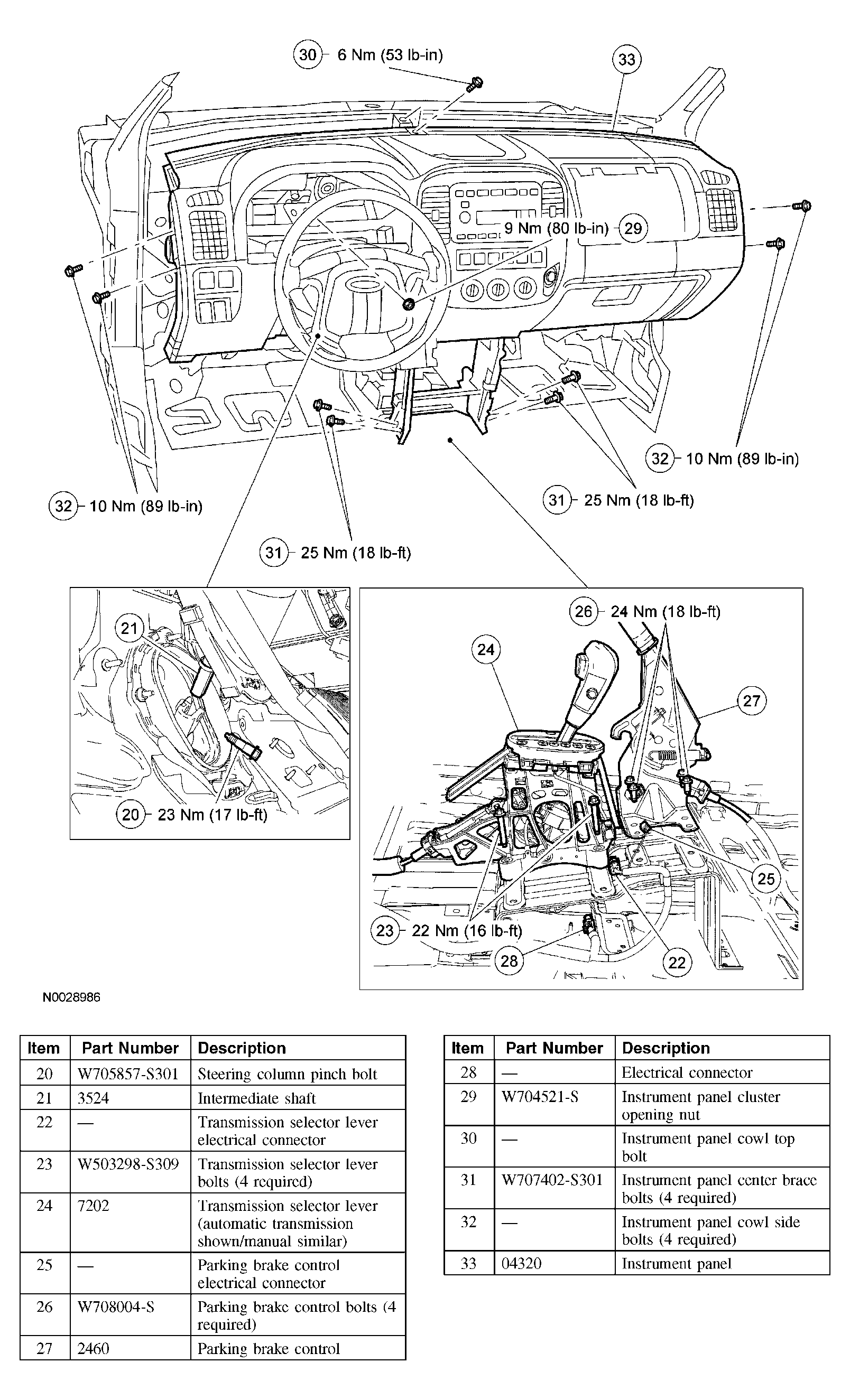

Fig 2: Instrument Panel And Torque Specifications
G03903377Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the procedures in this article.
