Window Glass - Liftgate: Notes

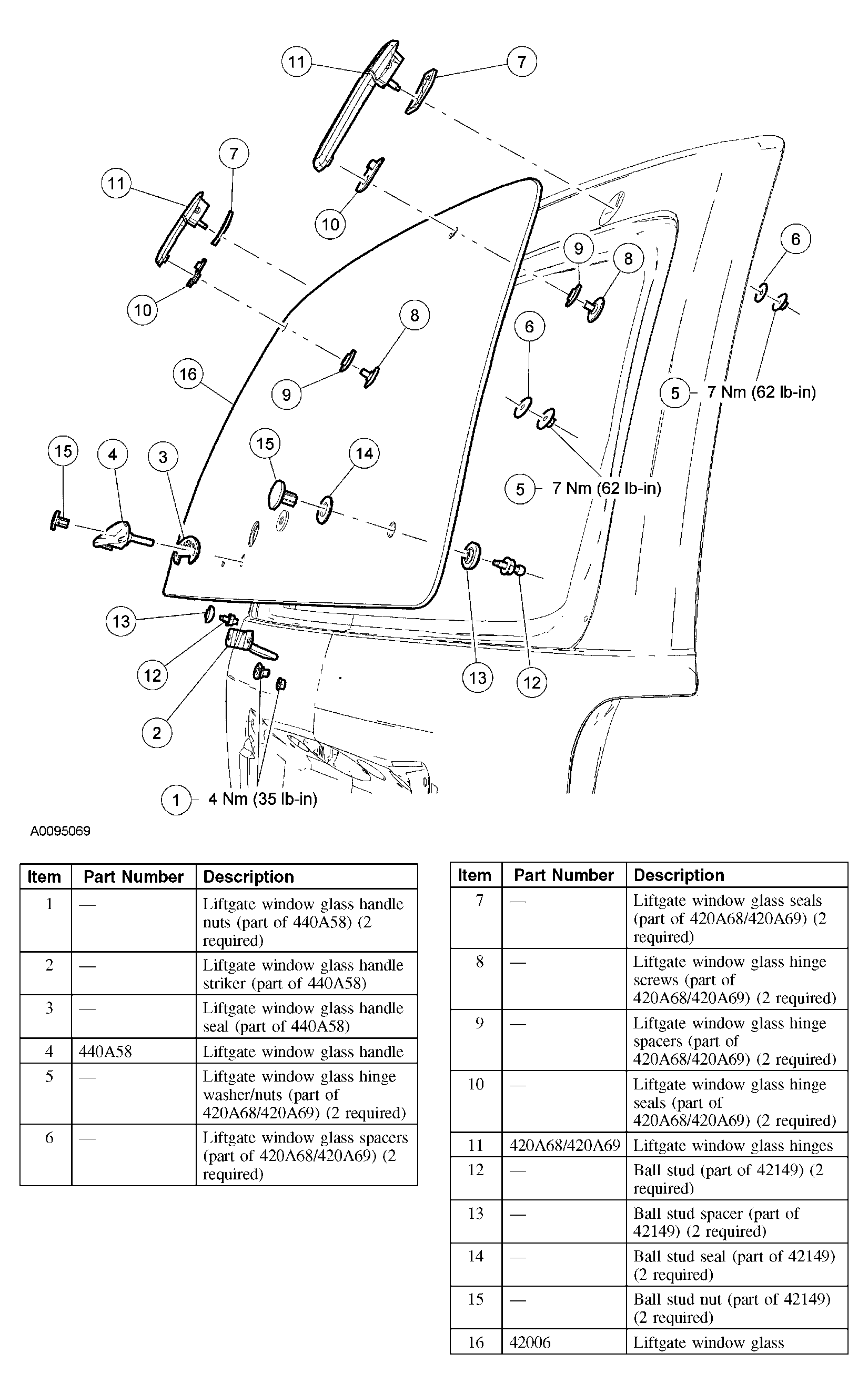

Fig 1: Exploded View Of Window Glass - Liftgate

G03903373

Courtesy of FORD MOTOR CO.
