Special Tool(s)

SPECIAL TOOL DESCRIPTION

G03901765
 Installer, Spindle/Axleshaft 205-199 or equivalent

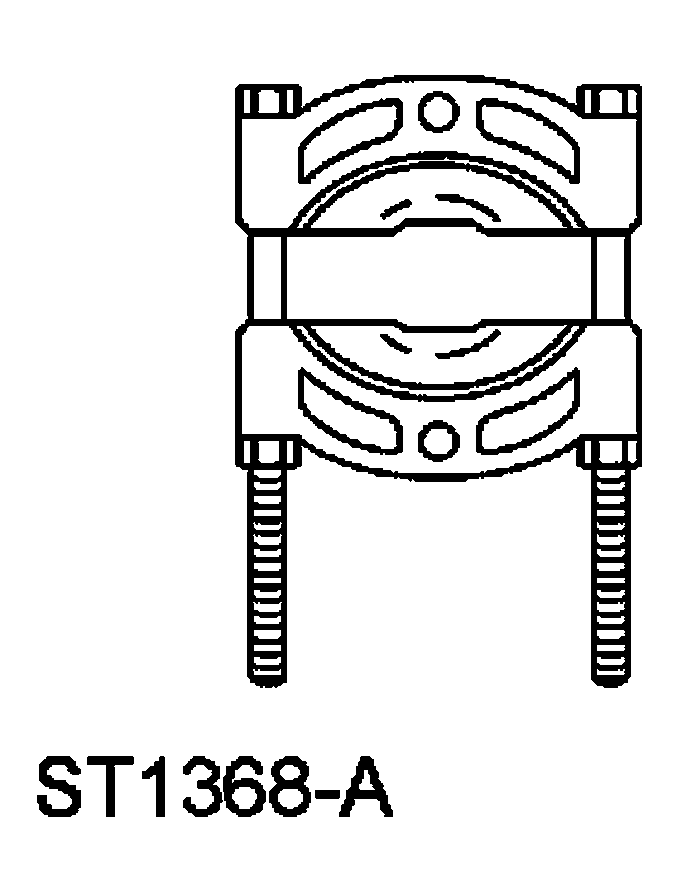

G03901841
 Puller, Bearing 205-D064 or equivalent

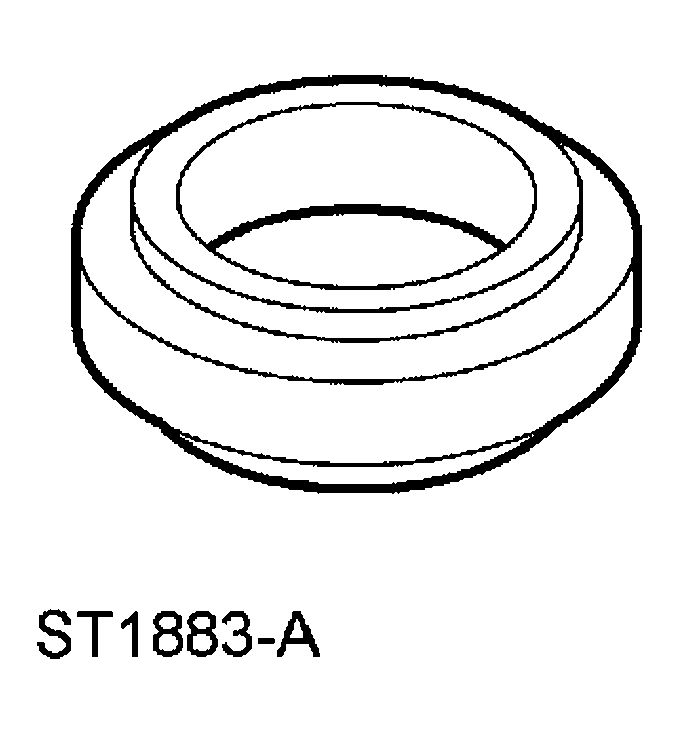

G03883793
 Input Bearing Installer 308-582 or equivalent

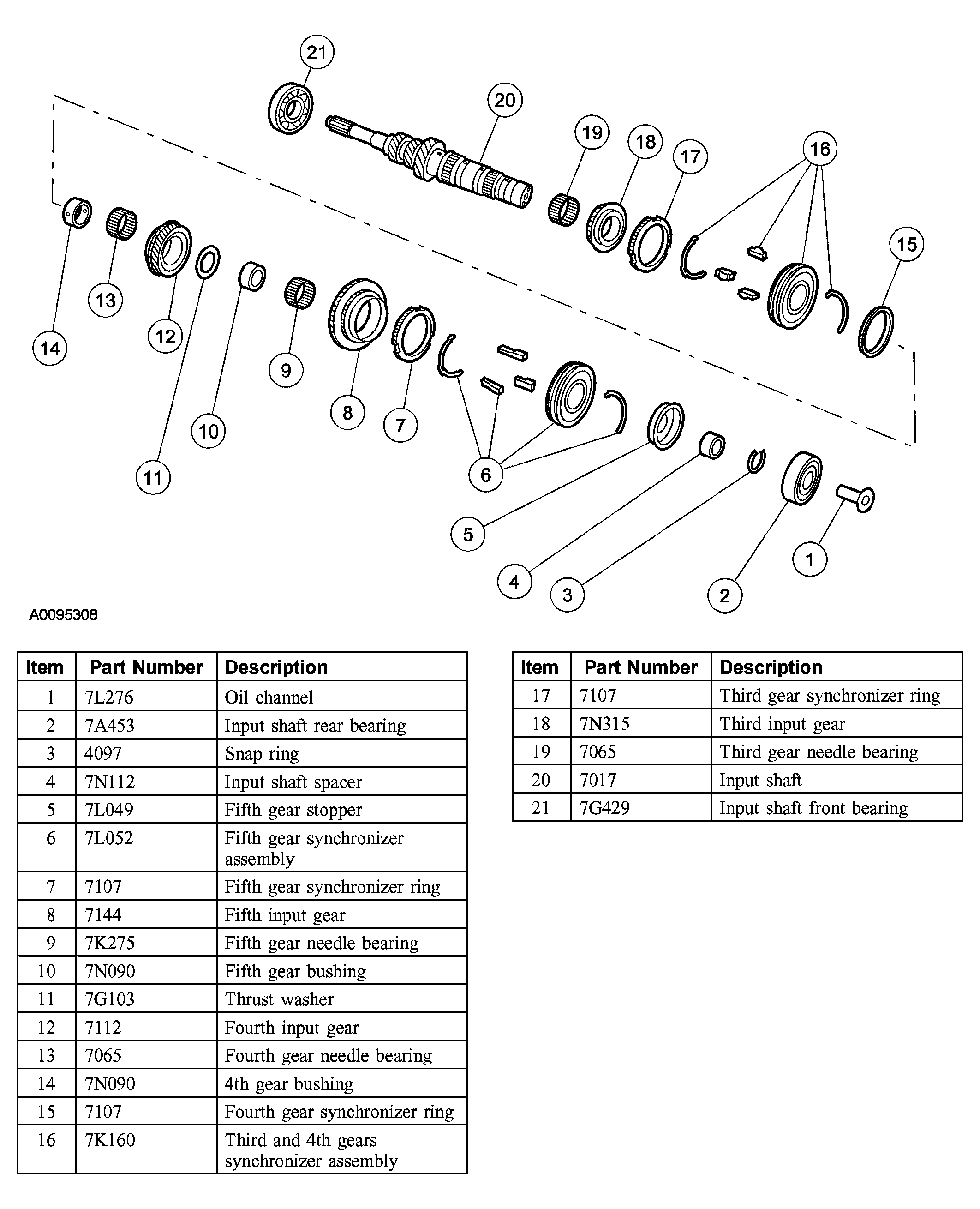

Fig 1: Disassembling/Assembling Input Shaft
G03901768Courtesy of FORD MOTOR CO.
