Seat - Exploded View, Rear

60/40 Split Bench

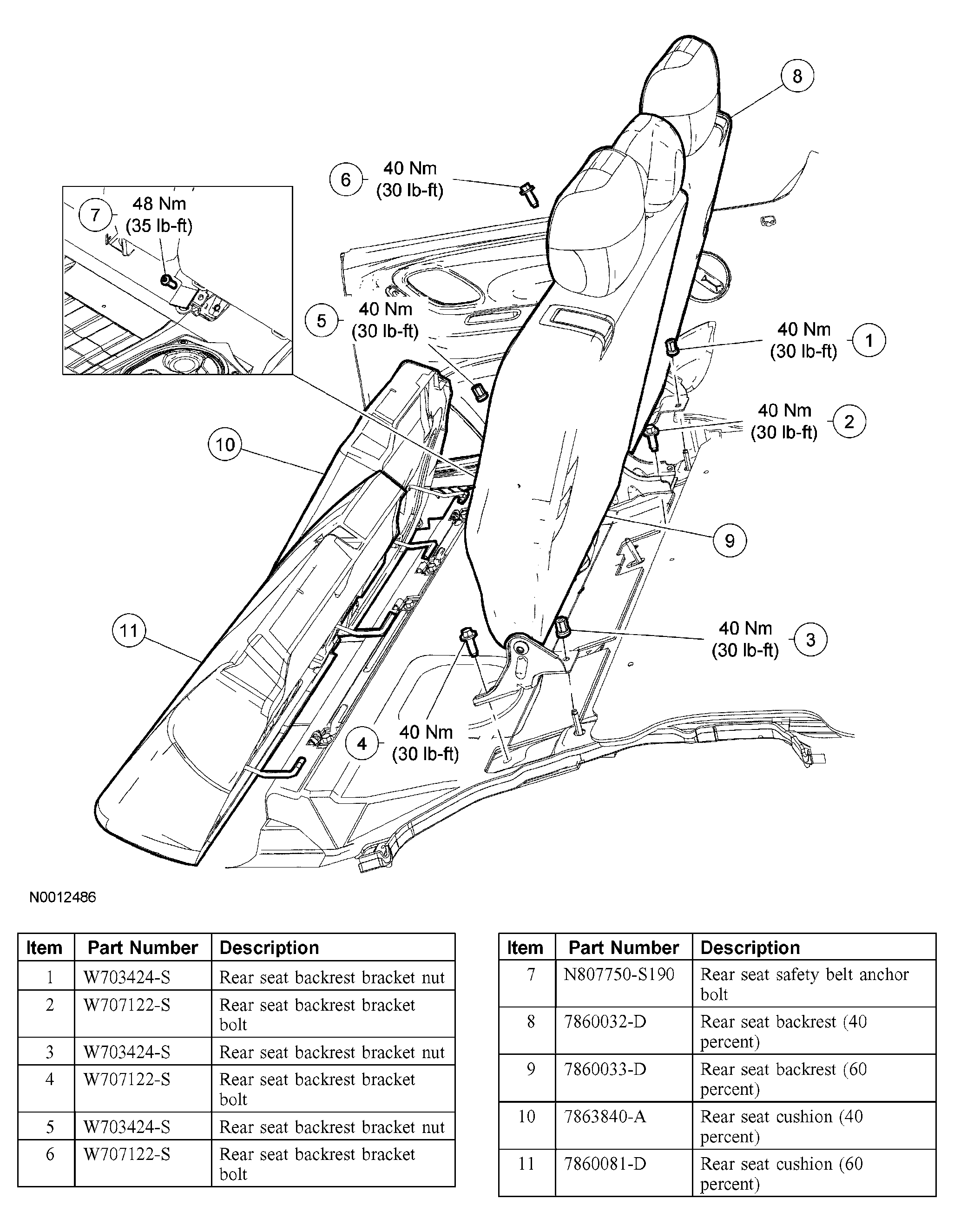

Fig 1: Seat Replacement Components With Torque Specifications - Rear

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the procedures in this article.
