Home >> Ford >> 2005 >> Escape Base, 2.3 Z, 4WD, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - Cd4E >> In-Vehicle Repair >> Transaxle Support Insulator - Lower, Rear, 2.3L >> Notes

Transaxle Support Insulator - Lower, Rear, 2.3L: Notes

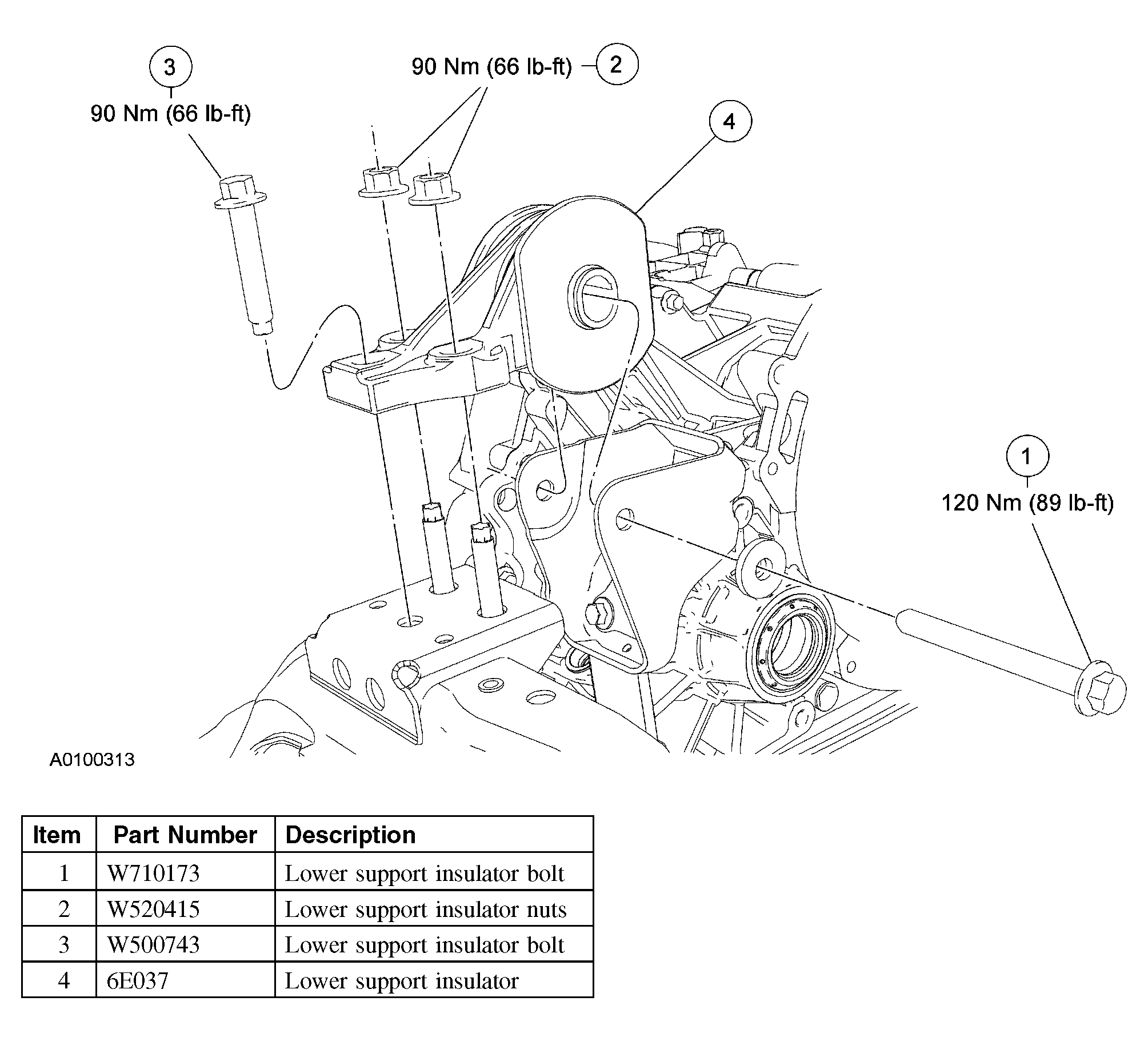

Fig 1: Transaxle Support Insulator Replacement Components With Torque Specifications

G03900726

Courtesy of FORD MOTOR CO.
