Automatic Transmission - Cd4E
>>
Disassembly And Assembly Of Subassemblies
>>
Main Control Valve Body
>>
Special Tool(s)
Special Tool(s)
SPECIAL TOOLS DESCRIPTION

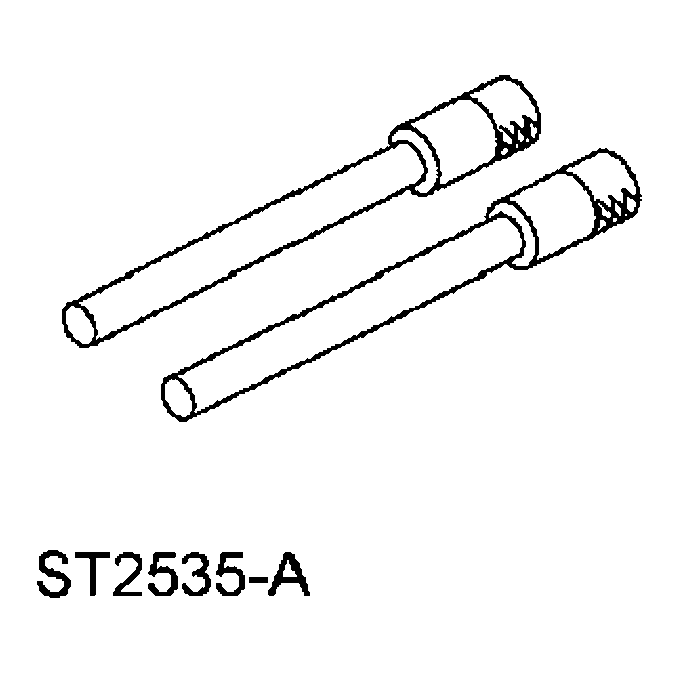

Alignment Pins, Valve Body 307-299 (T94P-77000-N)

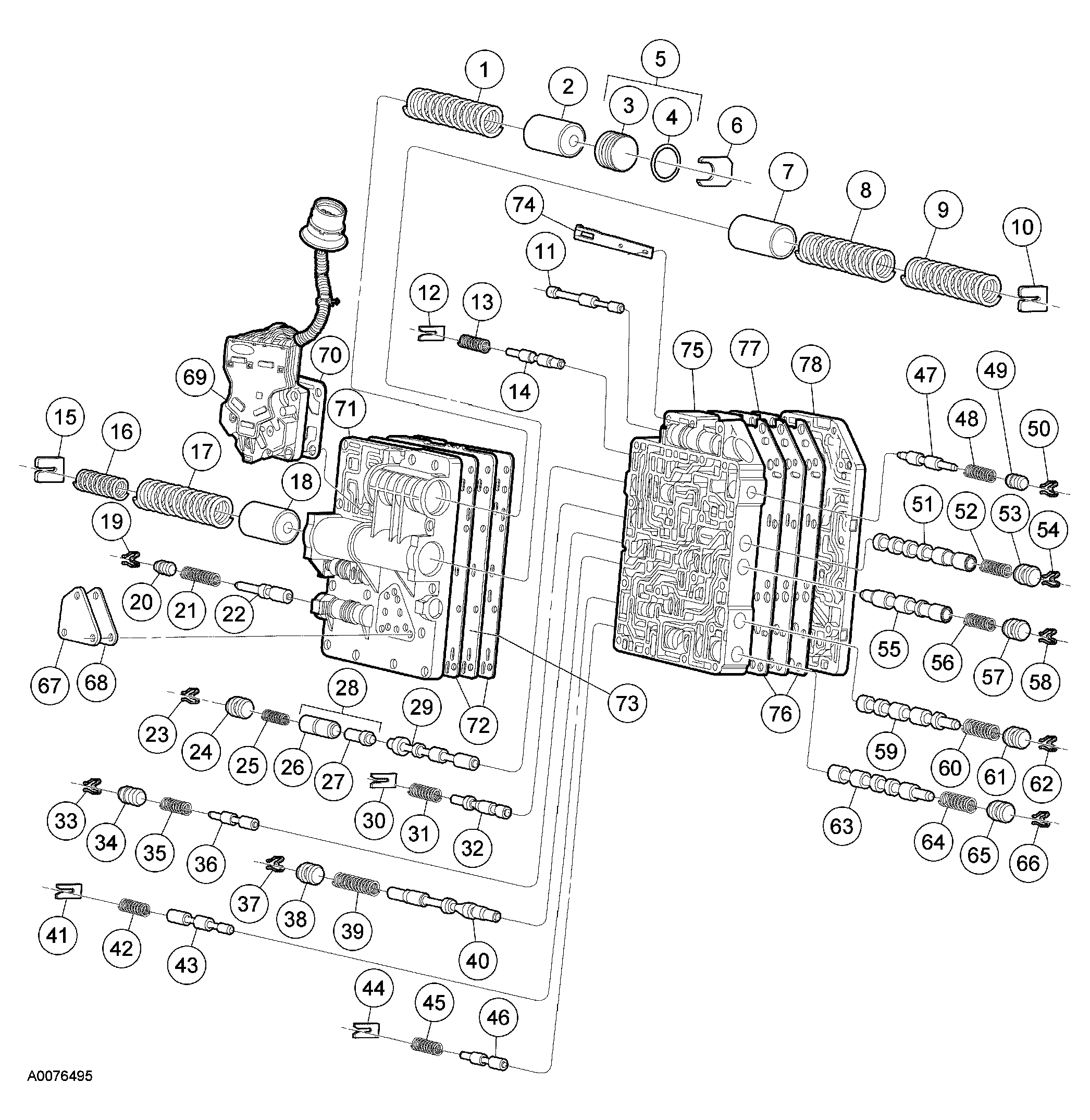

Fig 1: Identifying Automatic Transaxle/Transmission - CD4E Components
Courtesy of FORD MOTOR CO.

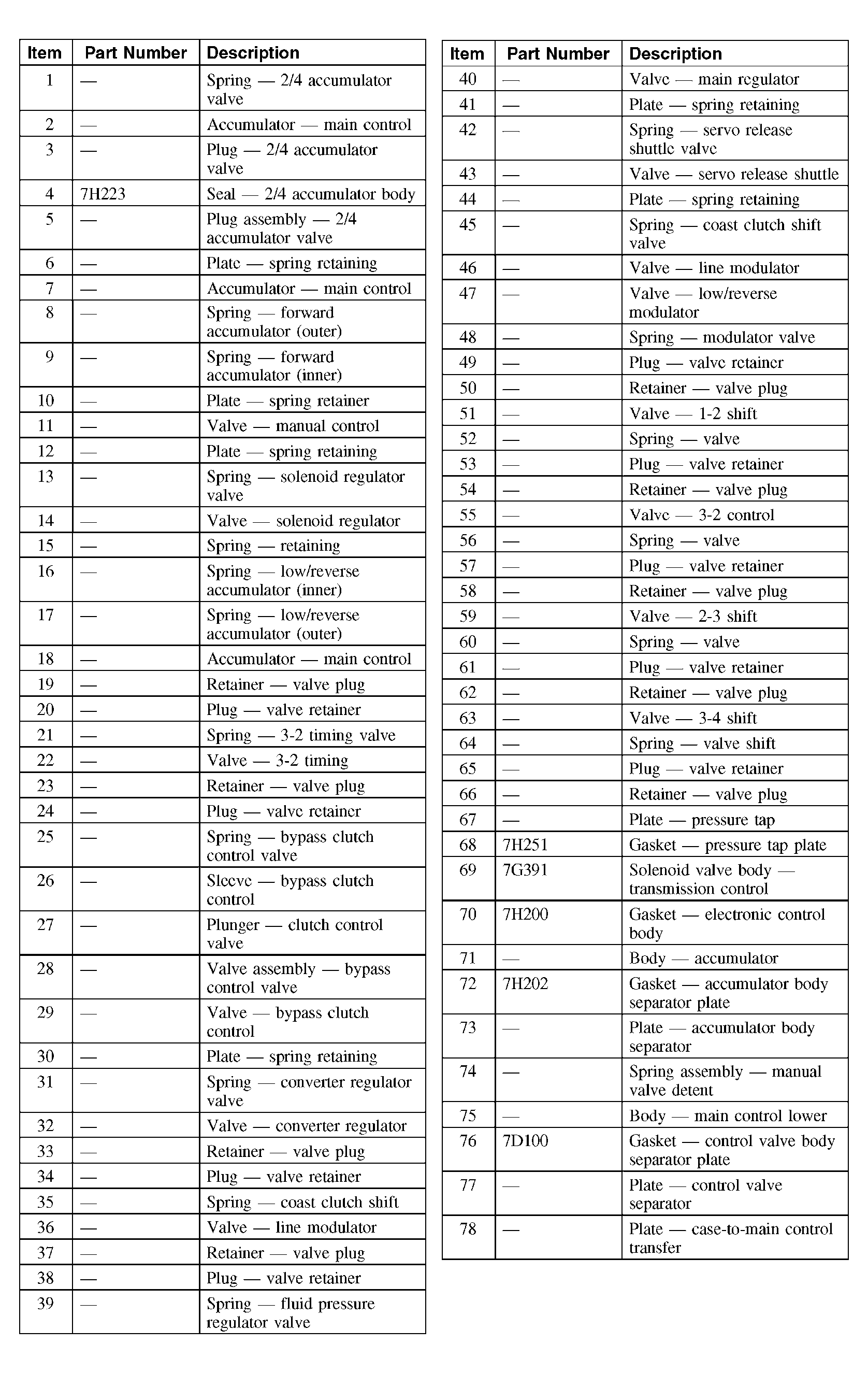

Fig 2: Automatic Transaxle/Transmission - CD4E Components Legend
Courtesy of FORD MOTOR CO.
