Hydraulic System: Notes

The hydraulic system uses transmission fluid to cool, lubricate and provide hydraulic pressure to the hydraulic circuits within the transaxle.

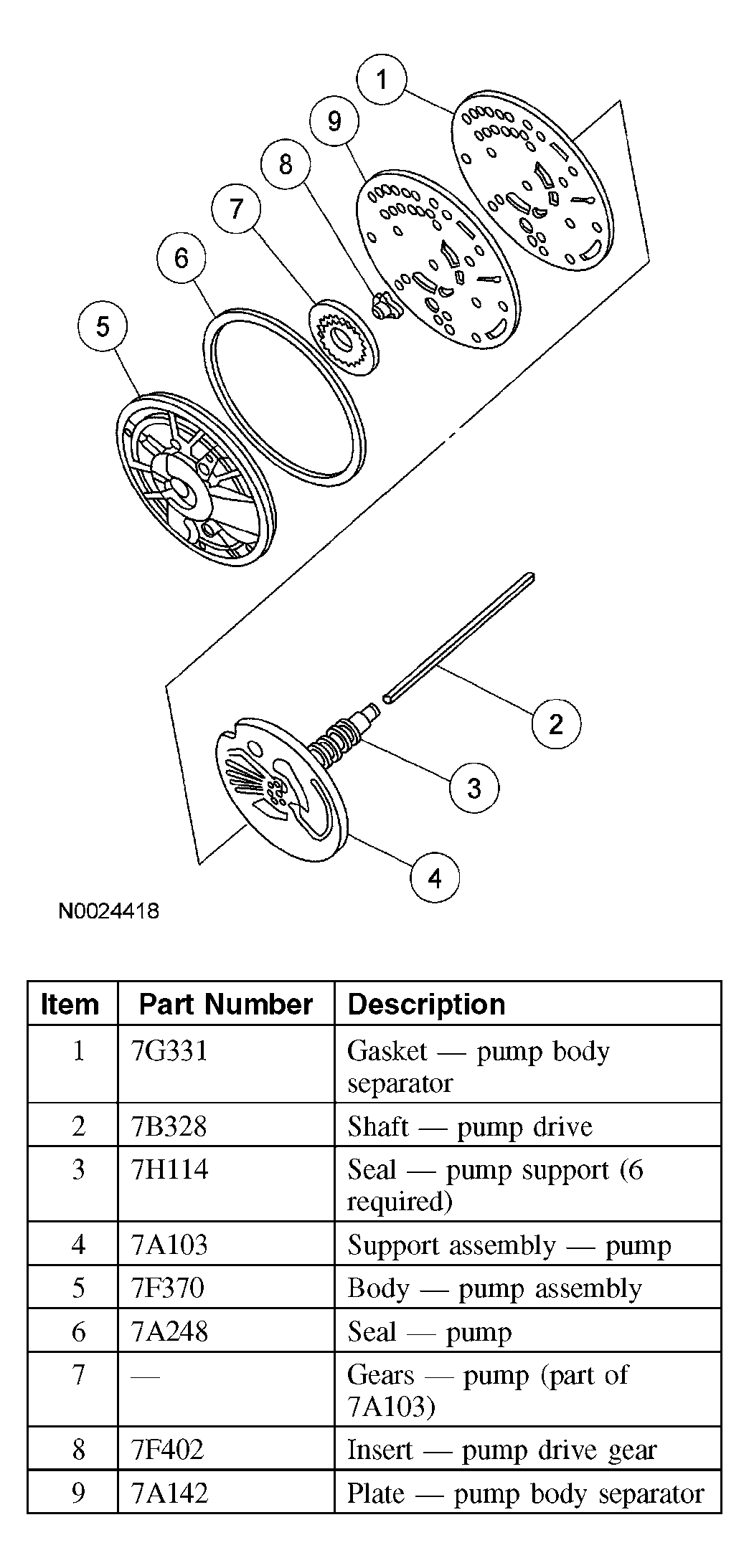

Fig 1: Identifying Fluid Pump Assembly Components
G03900530Courtesy of FORD MOTOR CO.
