Console - Floor: Notes

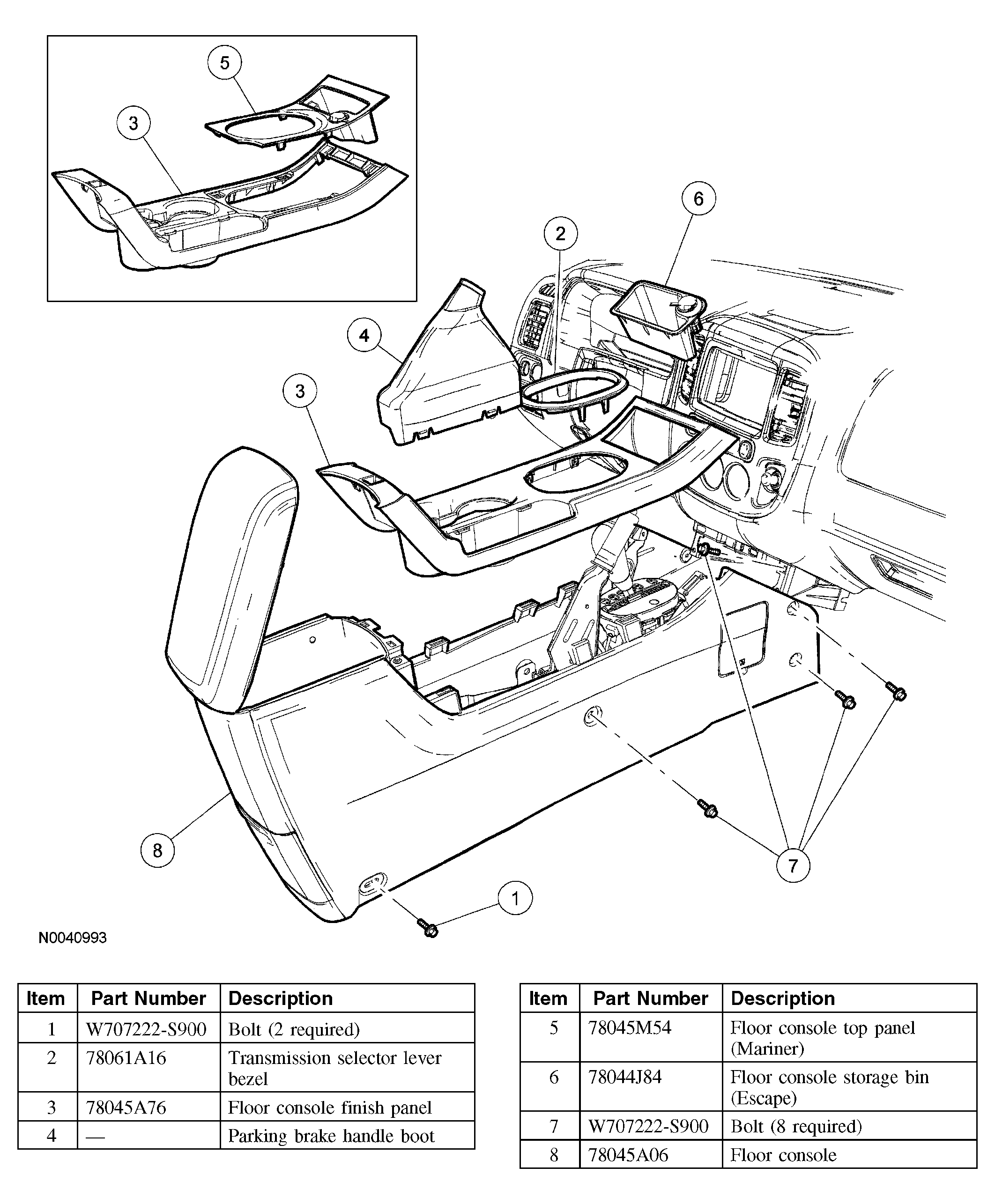

Fig 1: Identifying Floor Console Components
G03903384Courtesy of FORD MOTOR CO.
