Transmission Connector Layouts: Notes

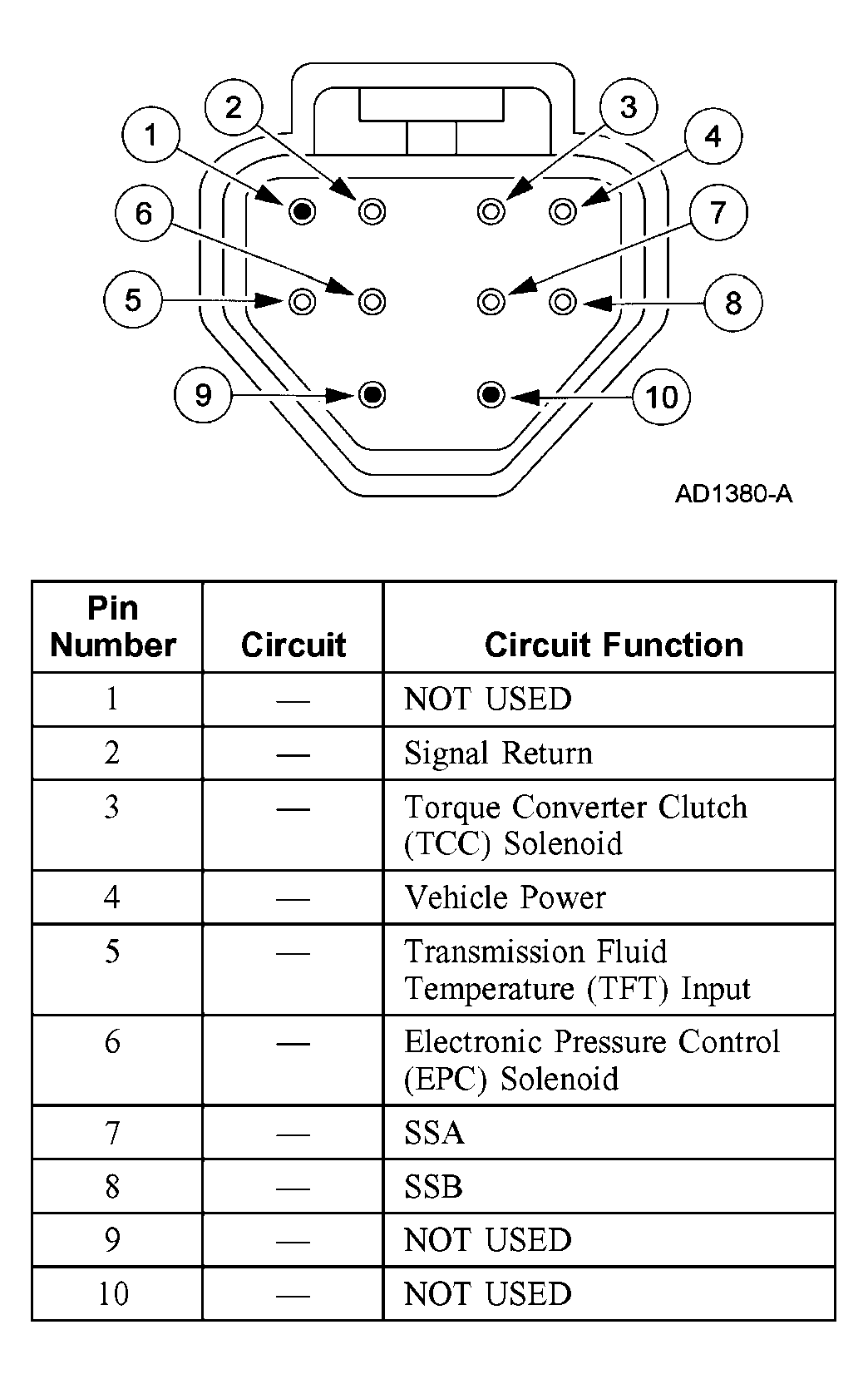

Fig 1: Identifying Transmission Vehicle Harness Connector
G03882345Courtesy of FORD MOTOR CO.

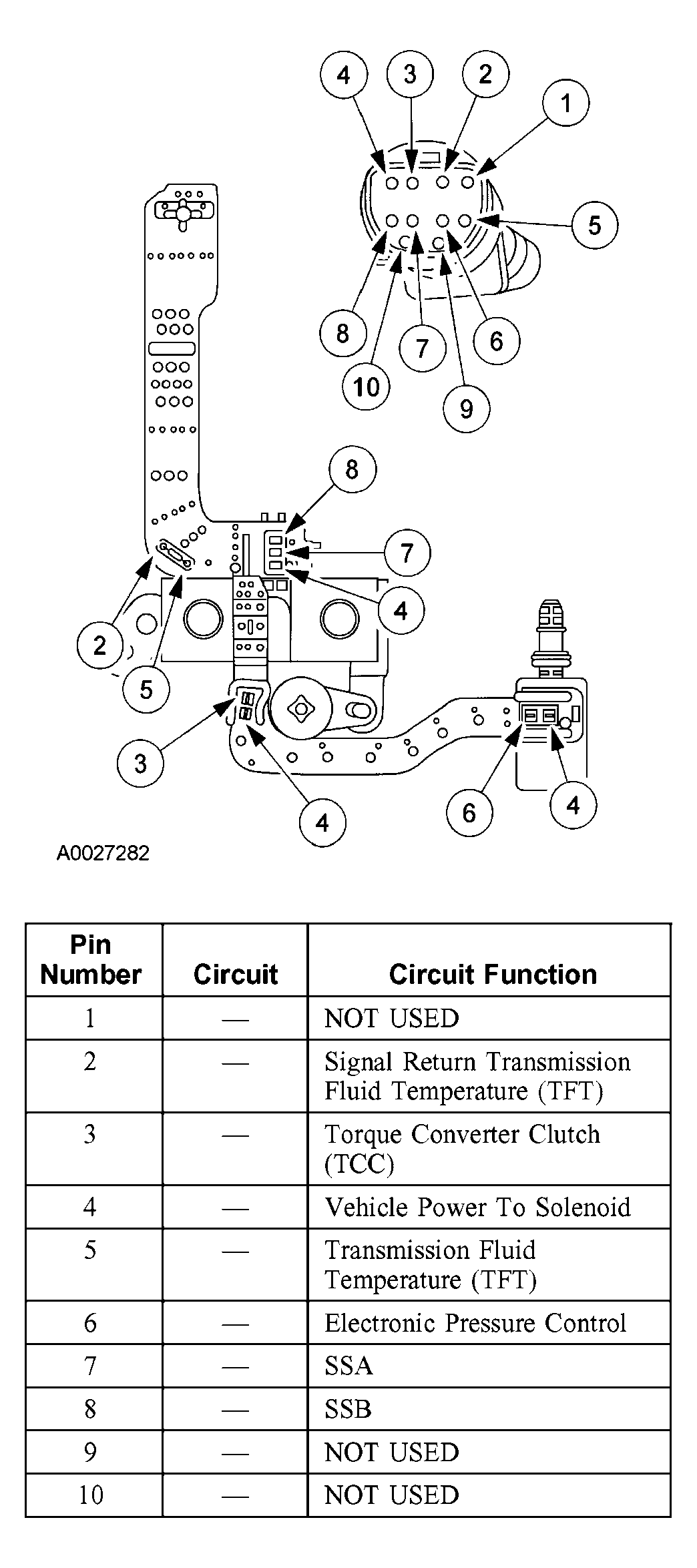

Fig 2: Identifying Transmission Internal Harness Connector
G03882346Courtesy of FORD MOTOR CO.
Fig 3: Identifying Digital Transmission Range (TR) Sensor Connector
G03882347Courtesy of FORD MOTOR CO.

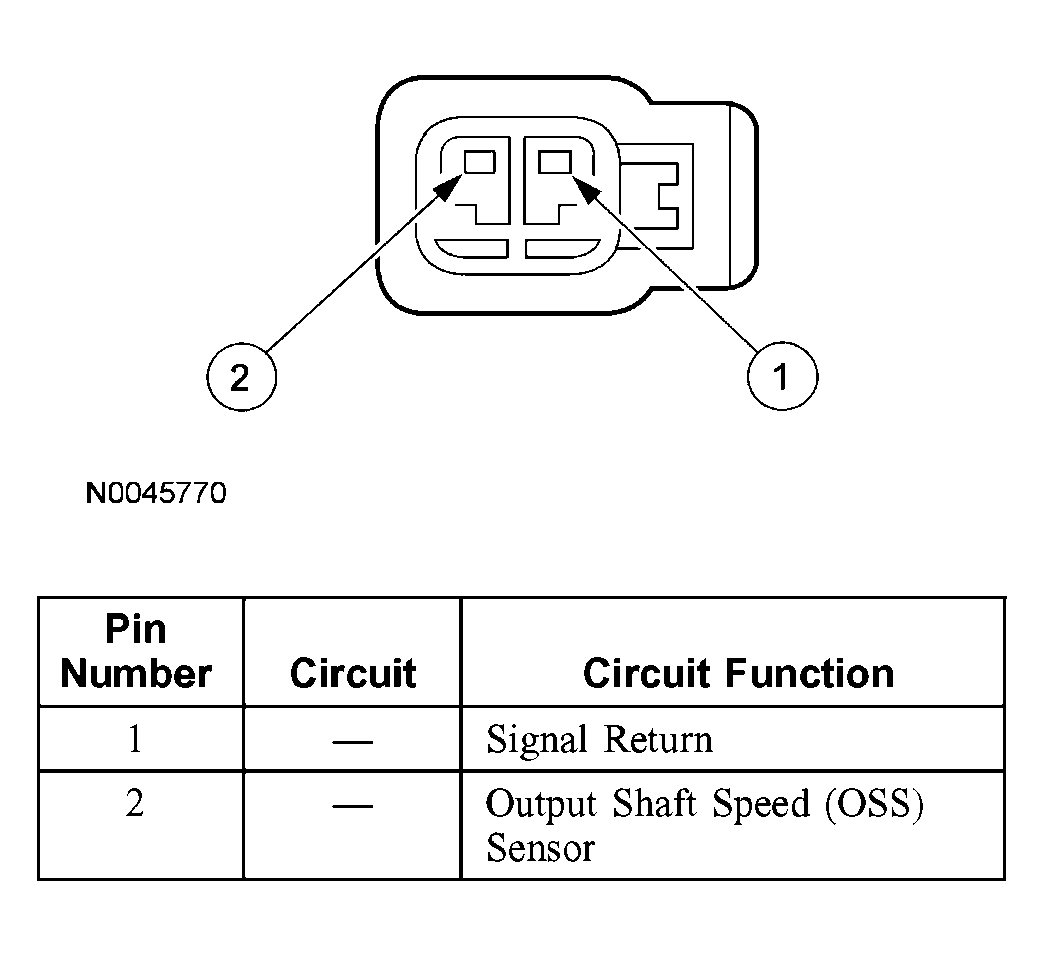

Fig 4: Identifying Output Shaft Speed (OSS) Sensor Harness Connector
G03882348Courtesy of FORD MOTOR CO.

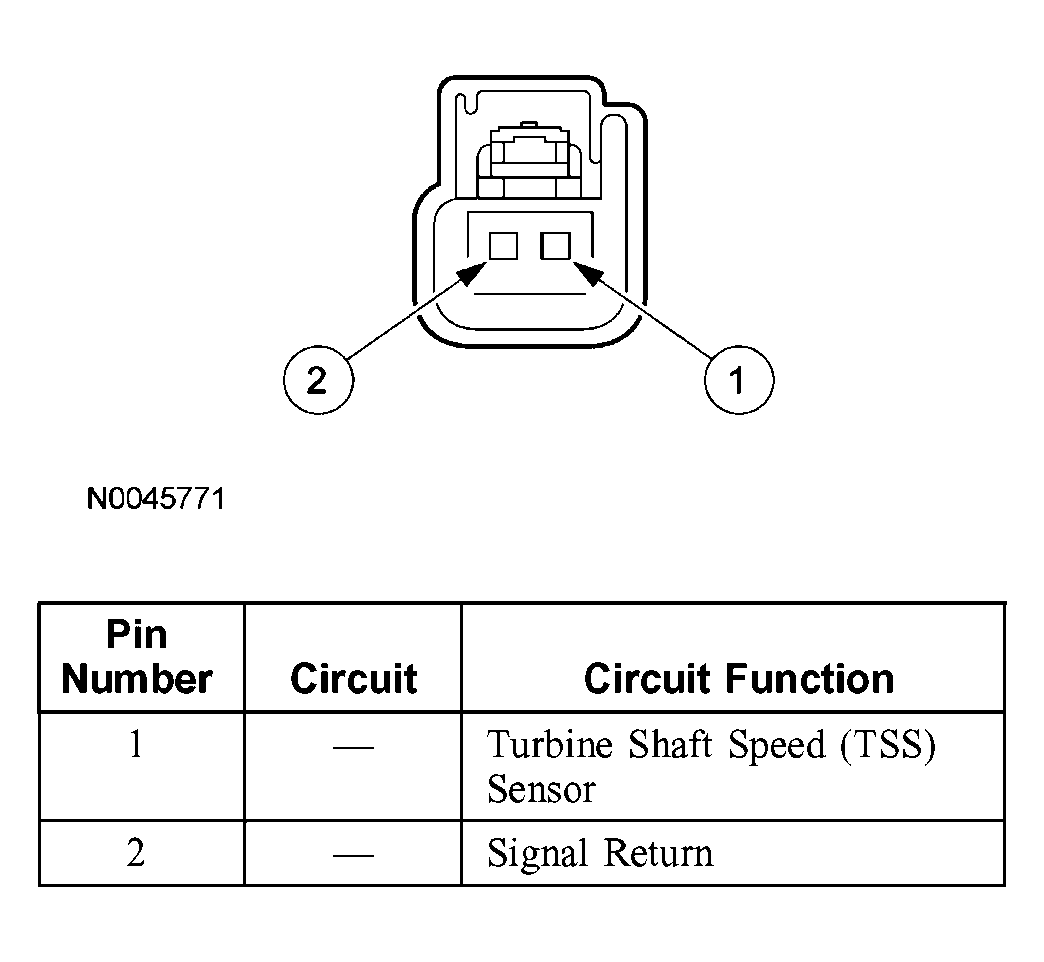

Fig 5: Identifying Turbine Shaft Speed (TSS) Sensor Harness Connector
G03882349Courtesy of FORD MOTOR CO.
Fig 6: Identifying Powertrain Control Module (PCM) Harness Connector Terminals
G03882350Courtesy of FORD MOTOR CO.
