Reverse Clutch: Material

MATERIAL CHART

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

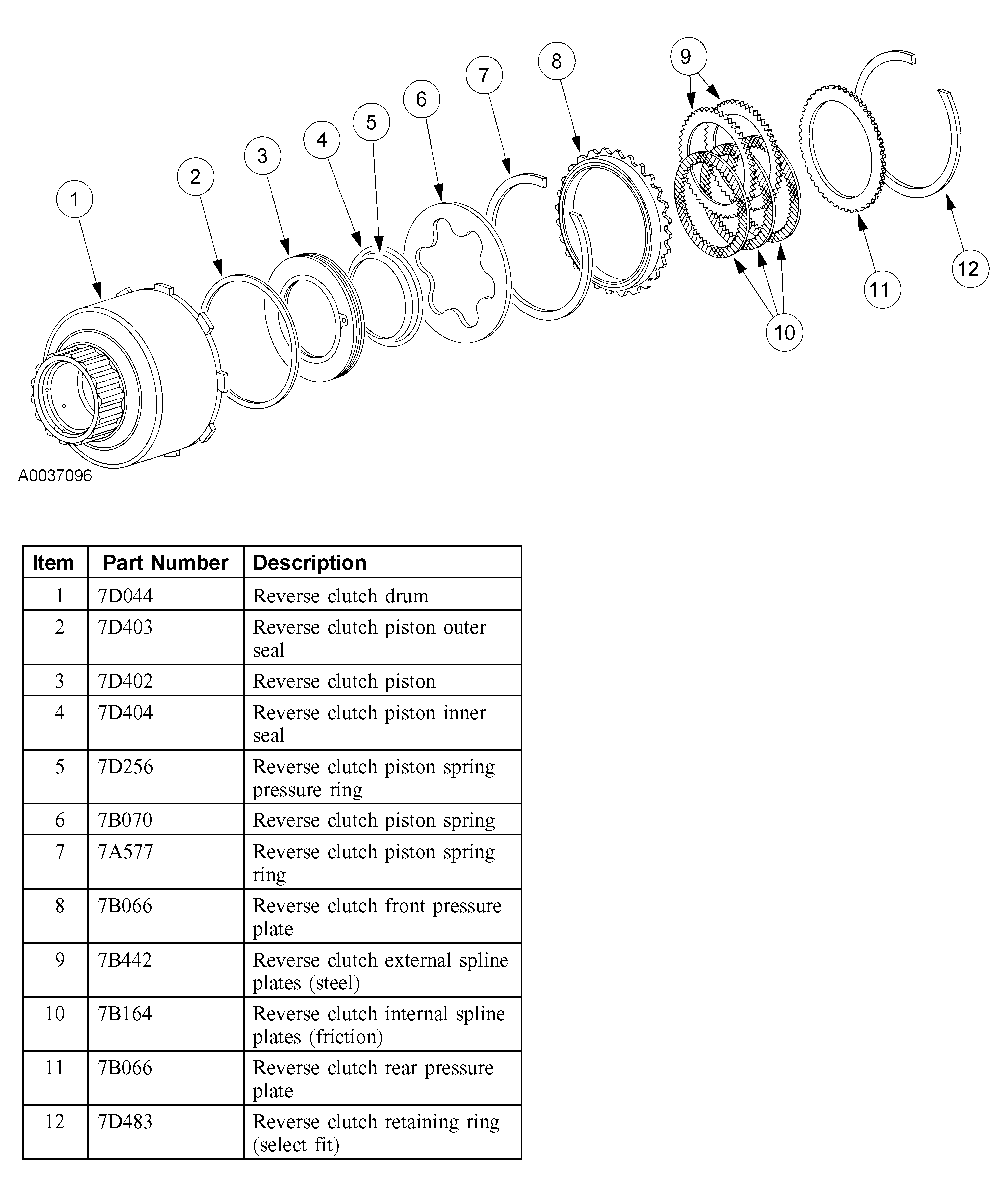

Reverse Clutch Disassembled View

Fig 1: Exploded View Of Reverse Clutch
G03882710Courtesy of FORD MOTOR CO.
