Transmission Cooling

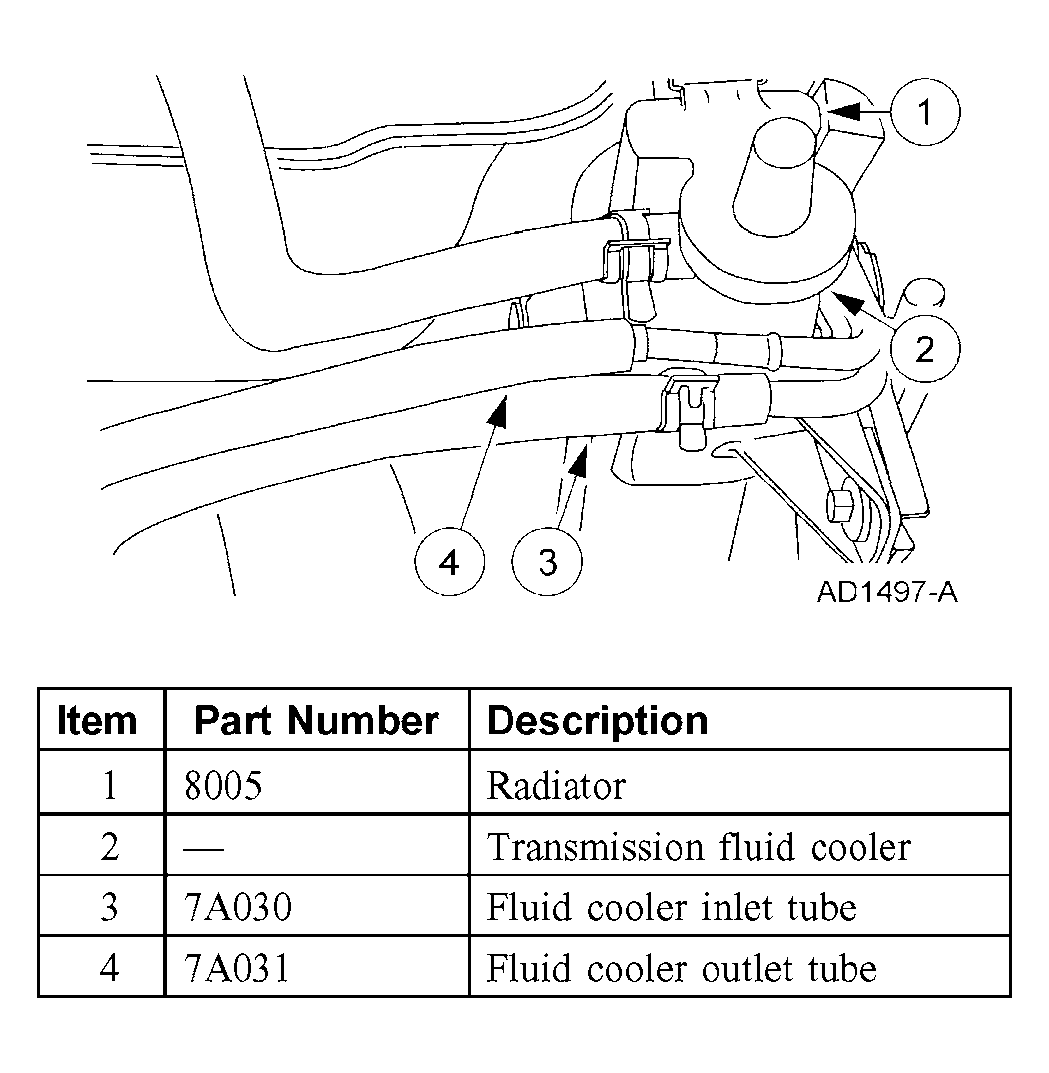

The transmission fluid cooler is an oil-to-air fluid cooler with a thermostatic bypass valve. The fluid cooler is mounted between the radiator and the condenser.
- When the transmission fluid is cold and the thermostatic valve is closed, the transmission fluid does not circulate through the fluid cooler.
- As the transmission fluid temperature increases, the thermostatic bypass valve opens and allows the transmission fluid to circulate through the fluid cooler.
For transmission fluid cooler flow test, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
