Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

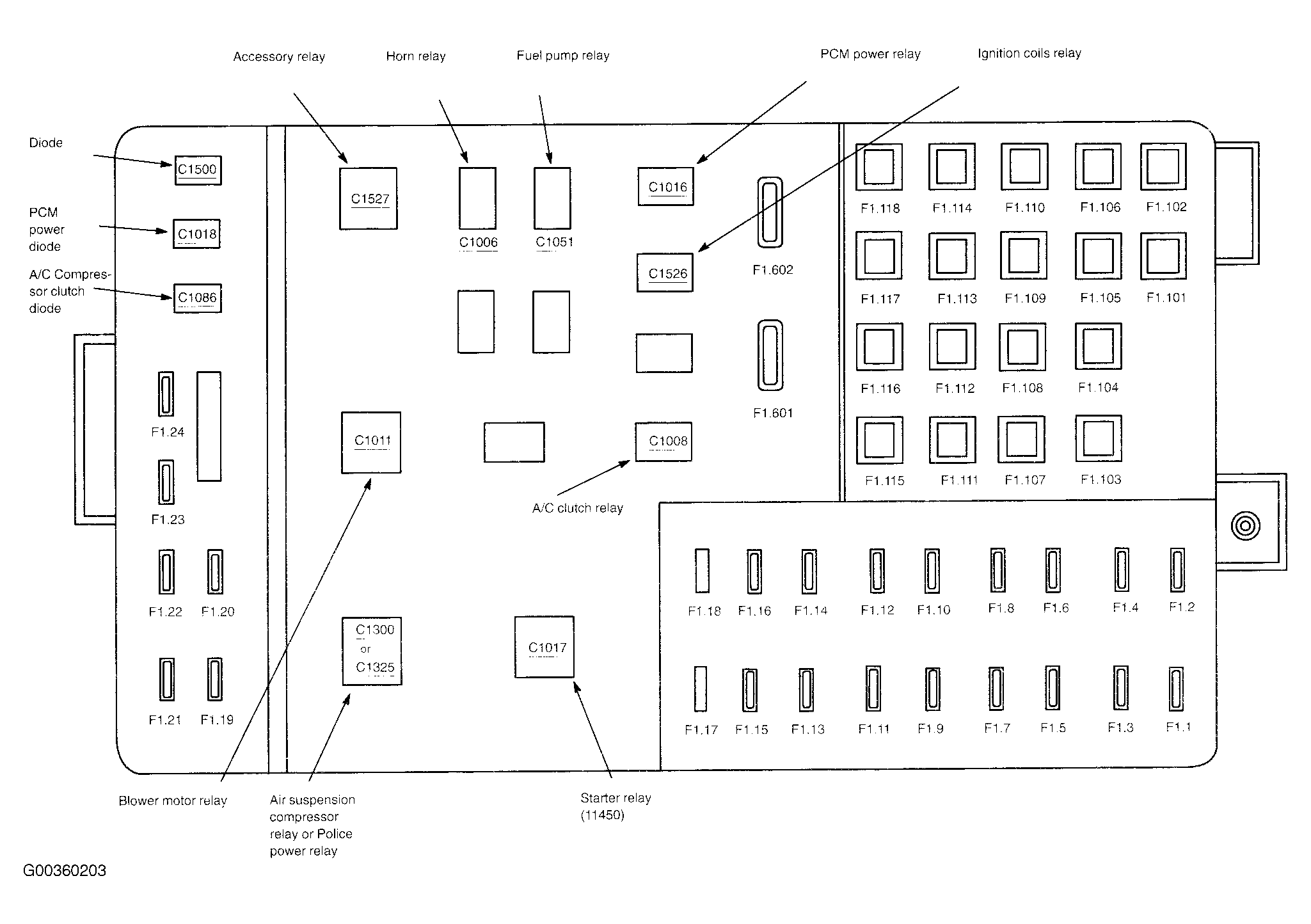

Fig 1: Battery Junction Box (BJB)
Courtesy of FORD MOTOR CO.

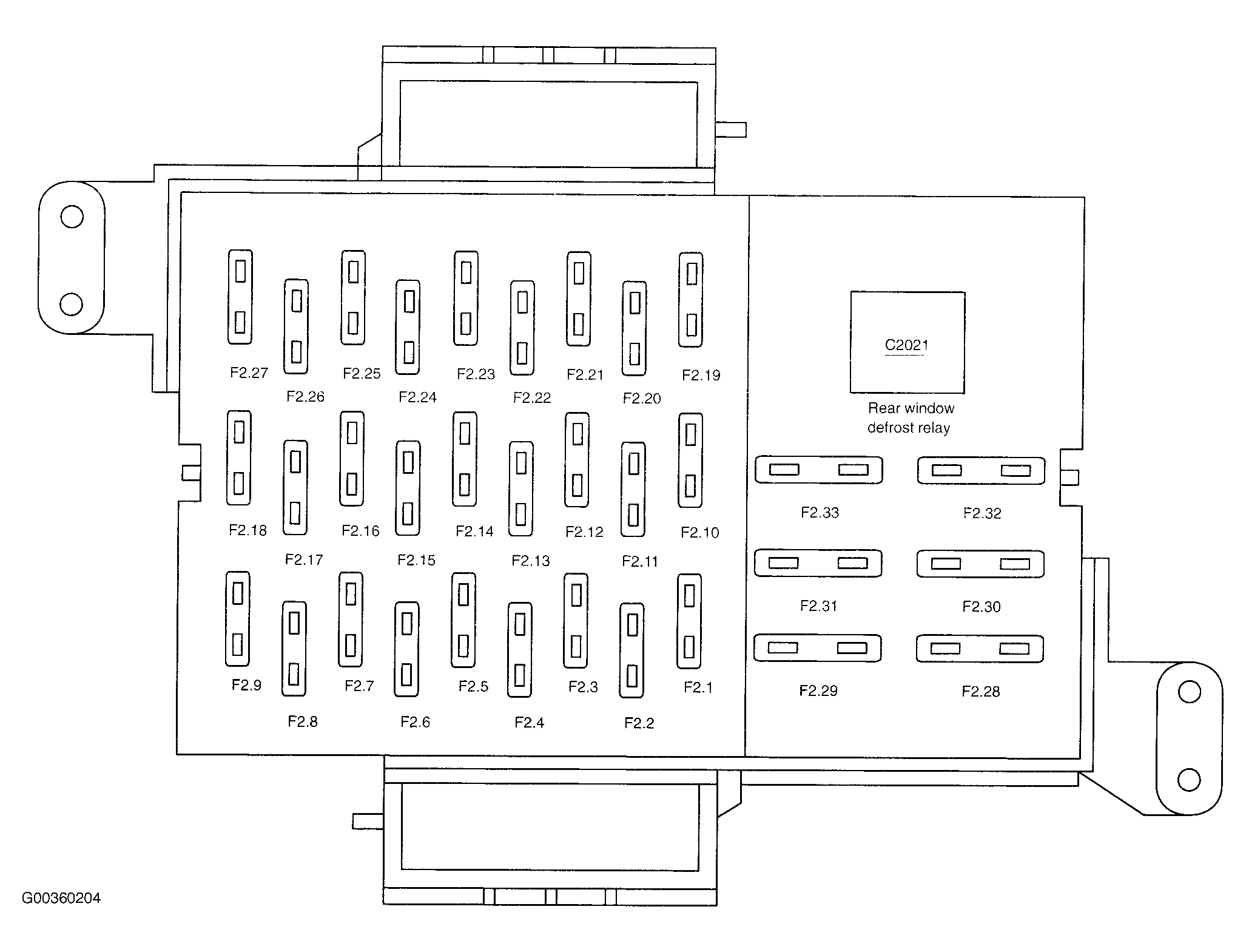

Fig 2: Central Junction Box (CJB)
Courtesy of FORD MOTOR CO.

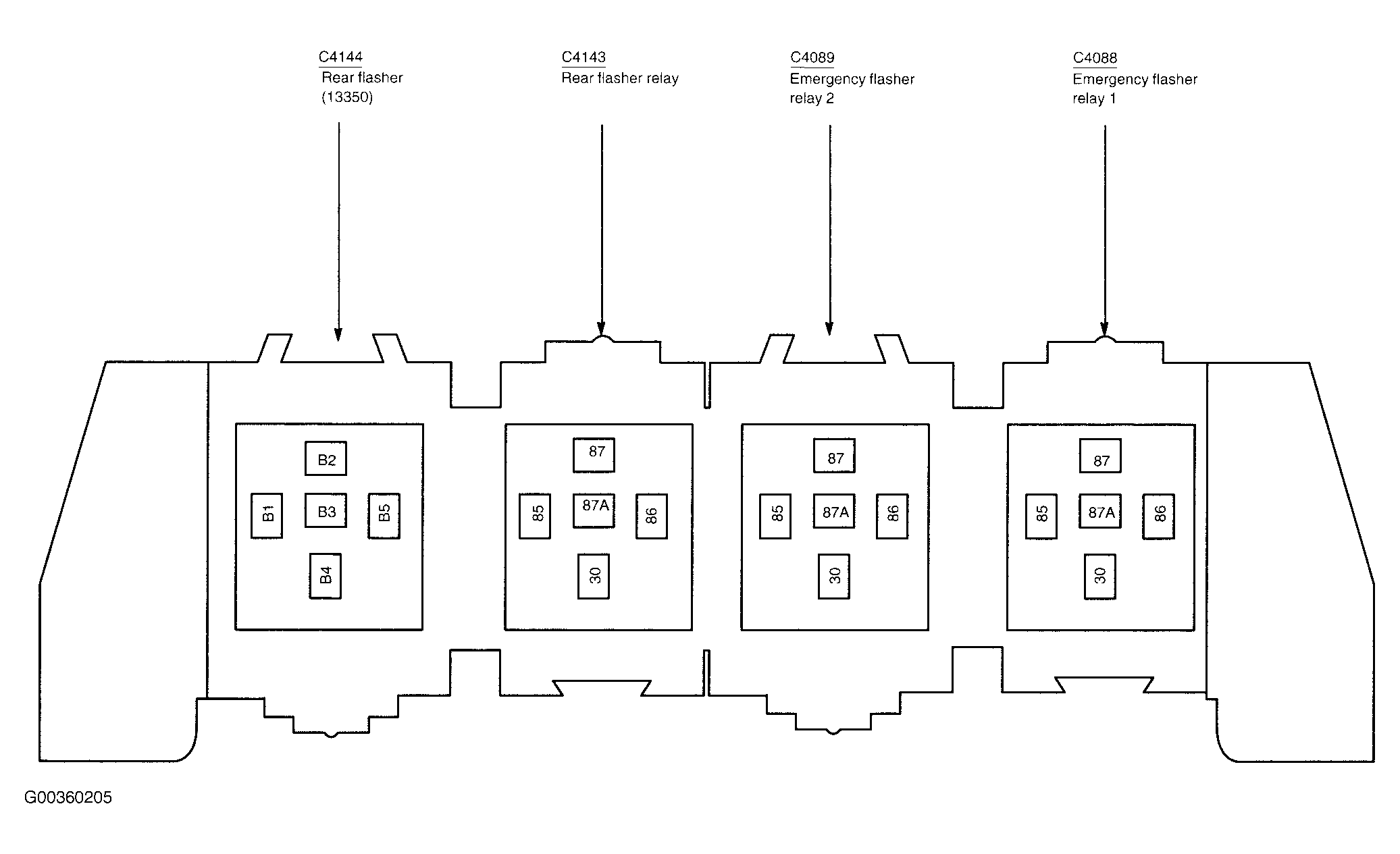

Fig 3: Emergency Flasher Relay Block
Courtesy of FORD MOTOR CO.

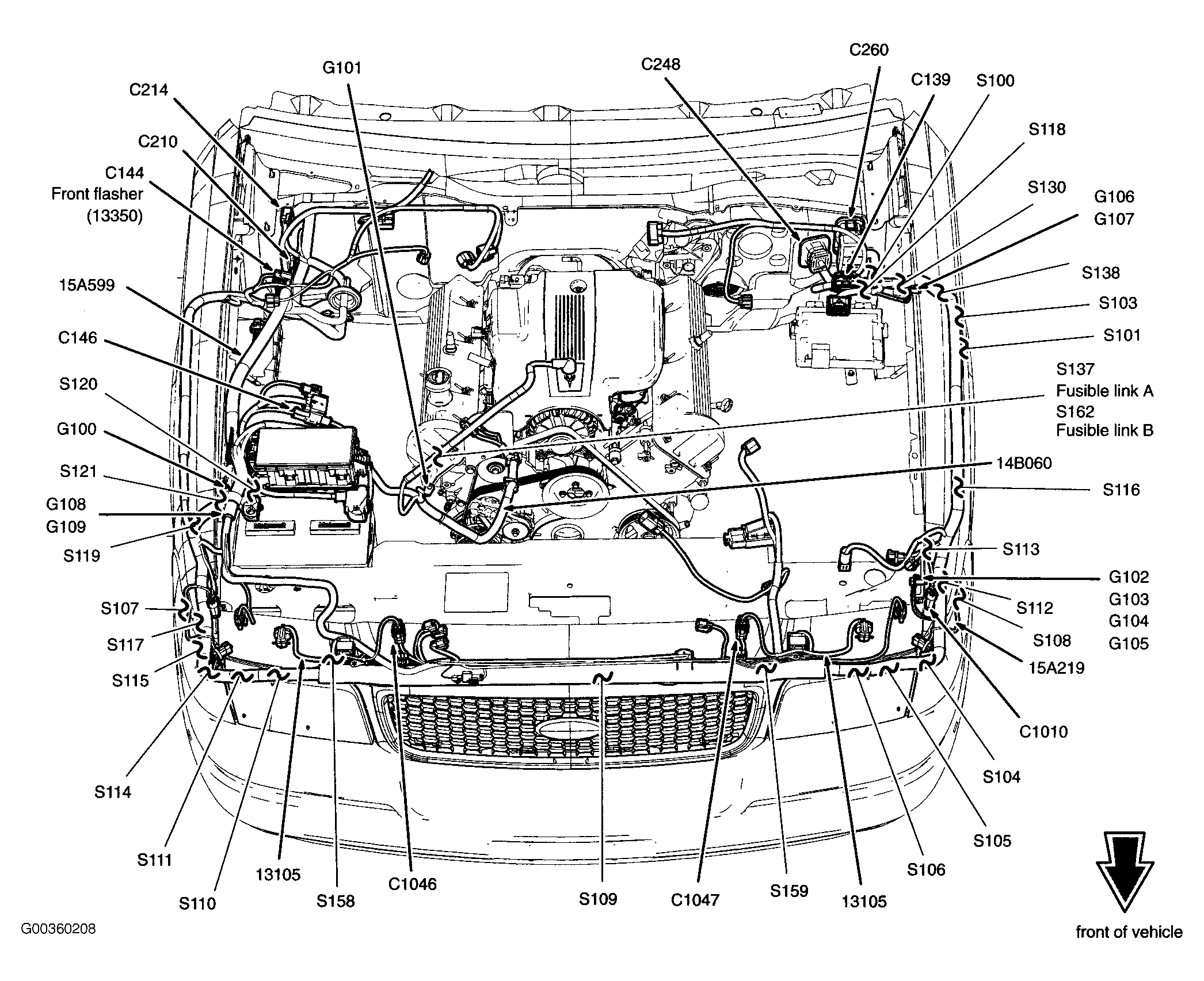

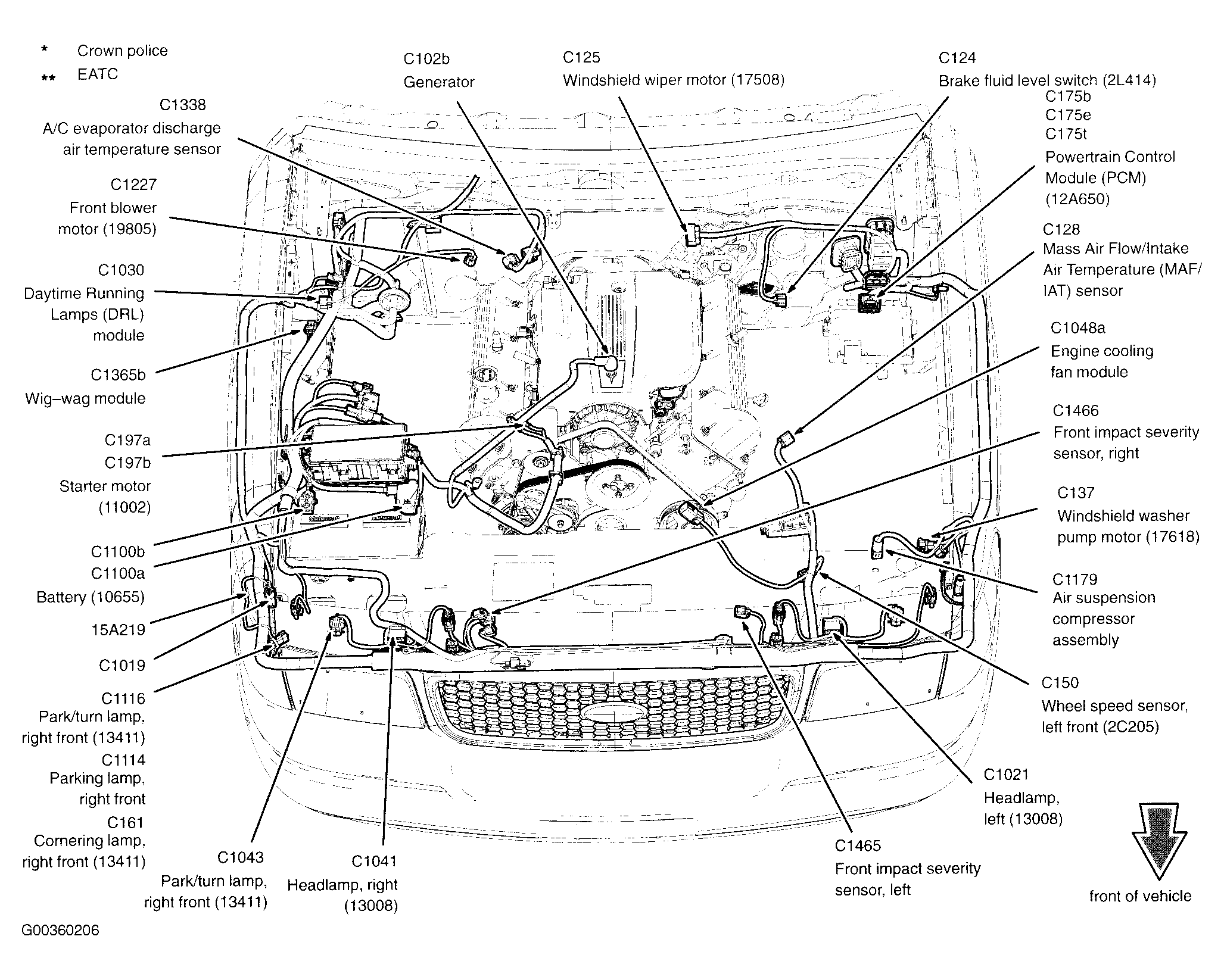

Fig 4: Engine Compartment
Courtesy of FORD MOTOR CO.

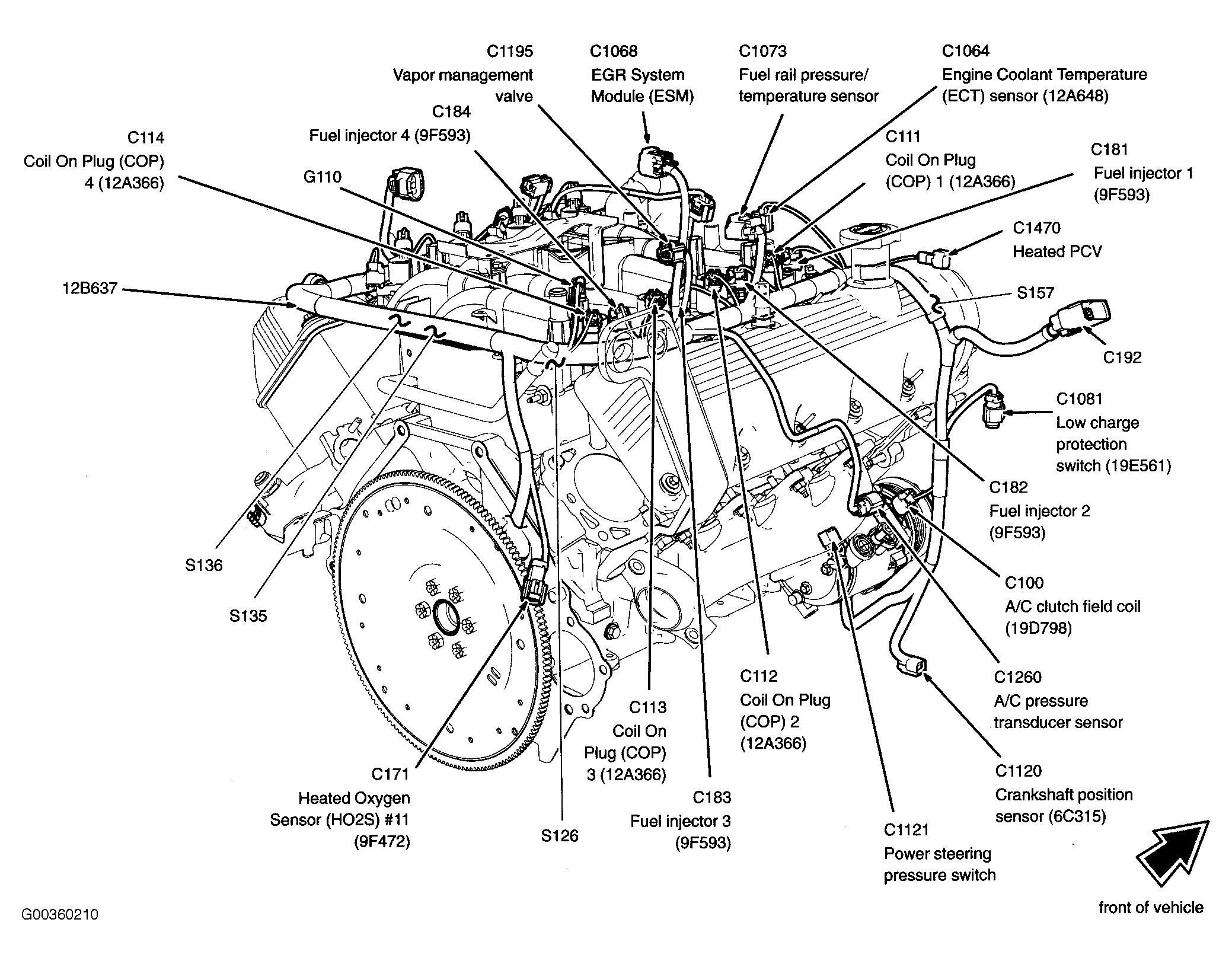

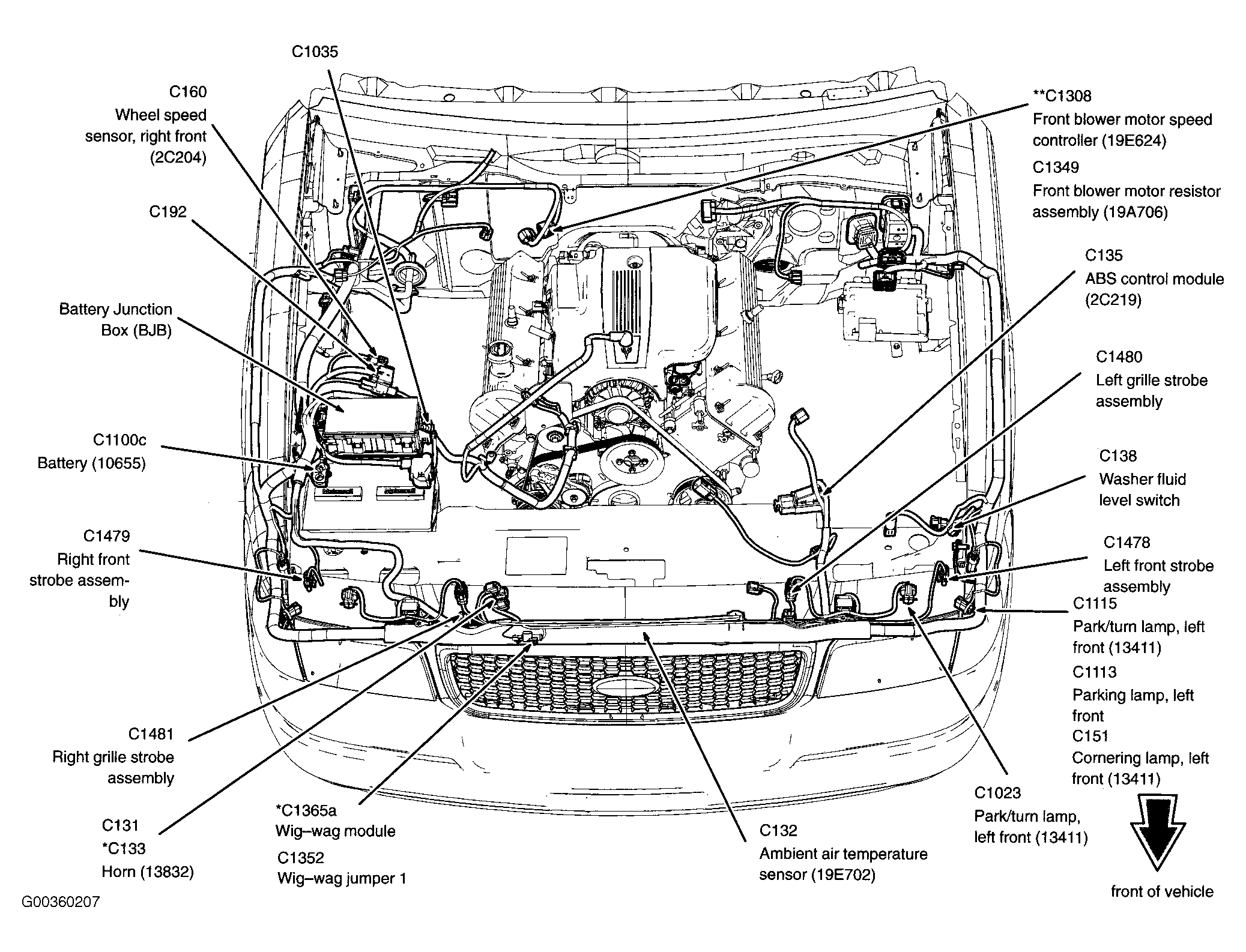

Fig 5: Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 6: Engine Compartment
Courtesy of FORD MOTOR CO.

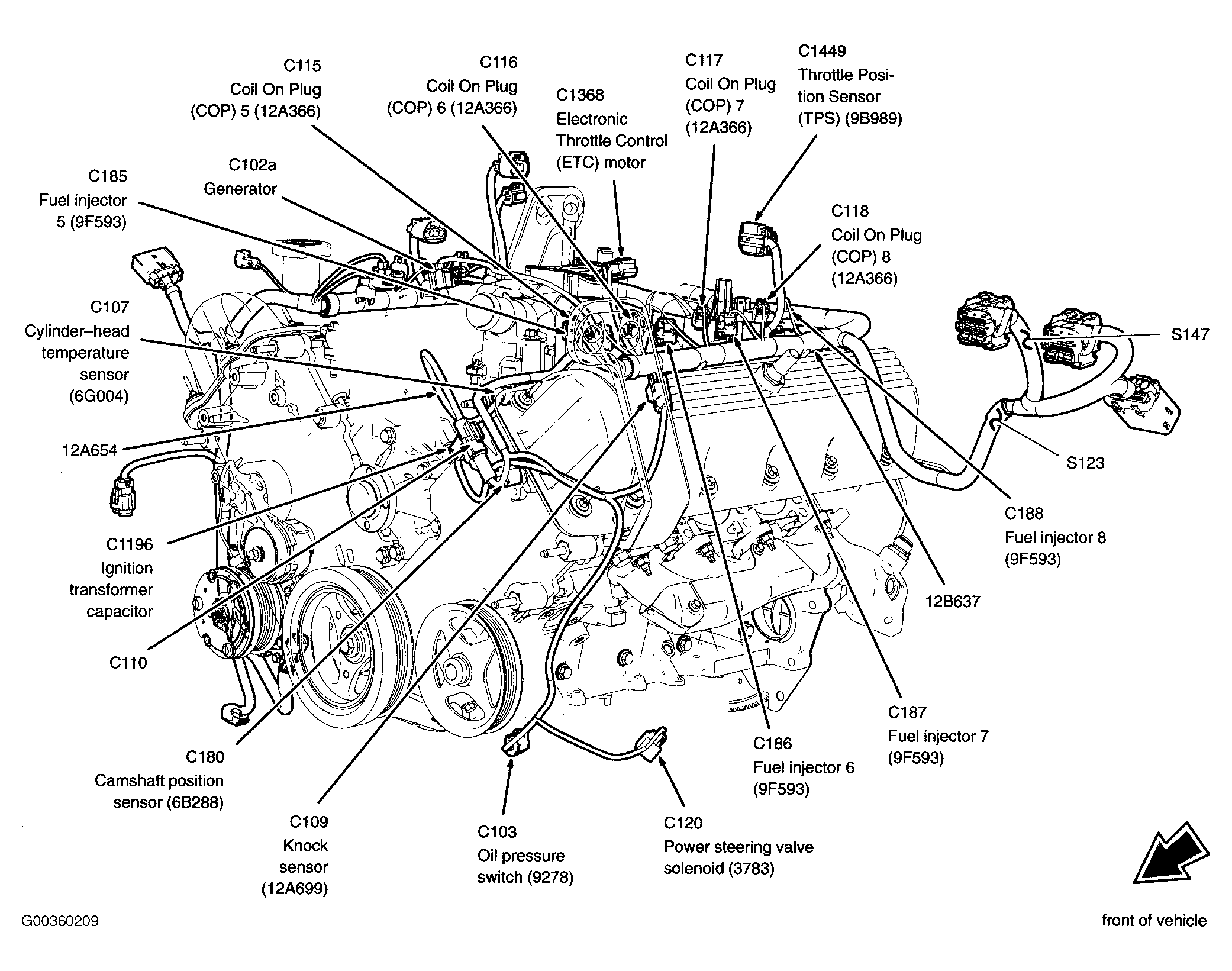

Fig 7: Front Of Engine
Courtesy of FORD MOTOR CO.
Fig 8: Rear Of Engine
Courtesy of FORD MOTOR CO.

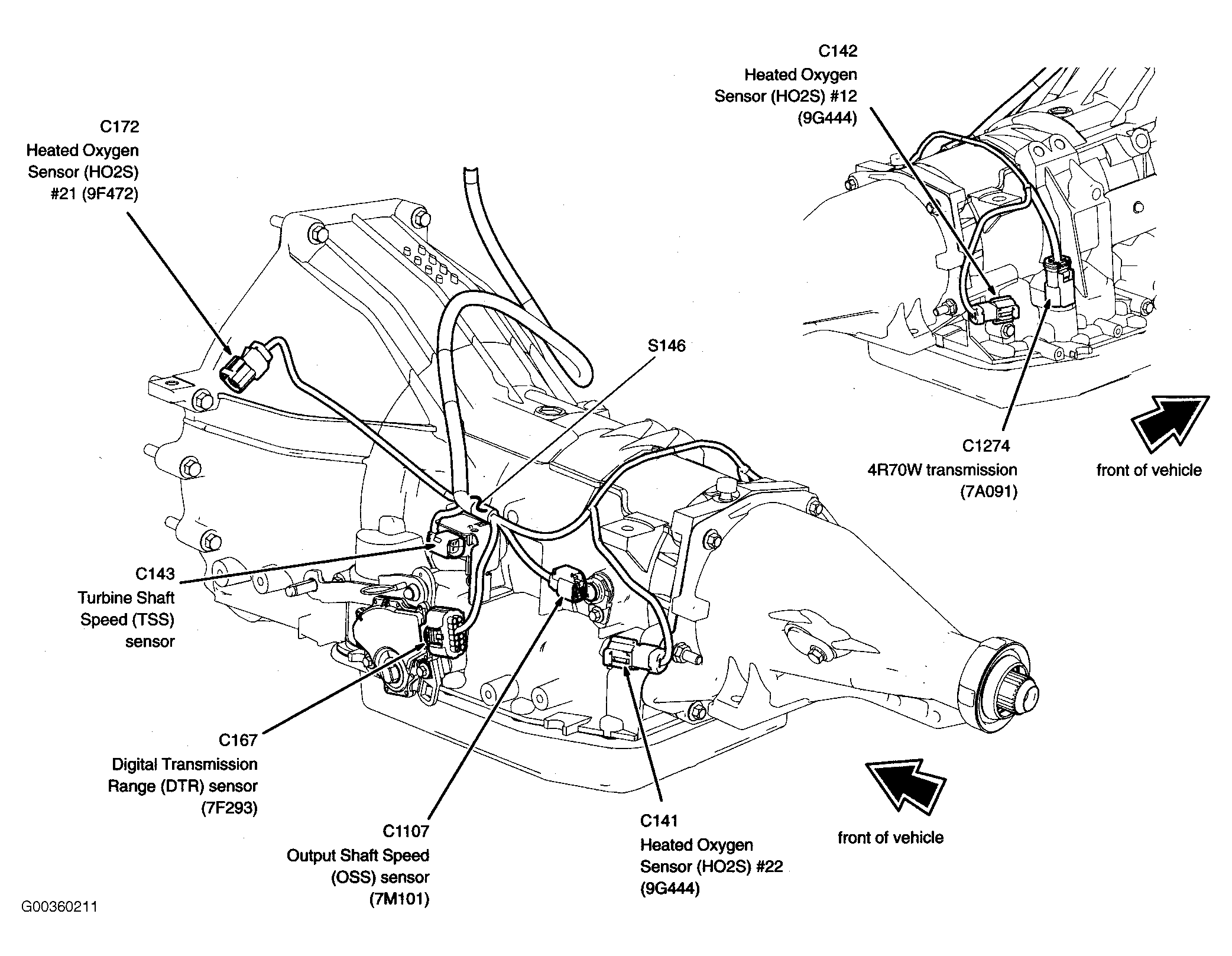

Fig 9: Transmission
Courtesy of FORD MOTOR CO.

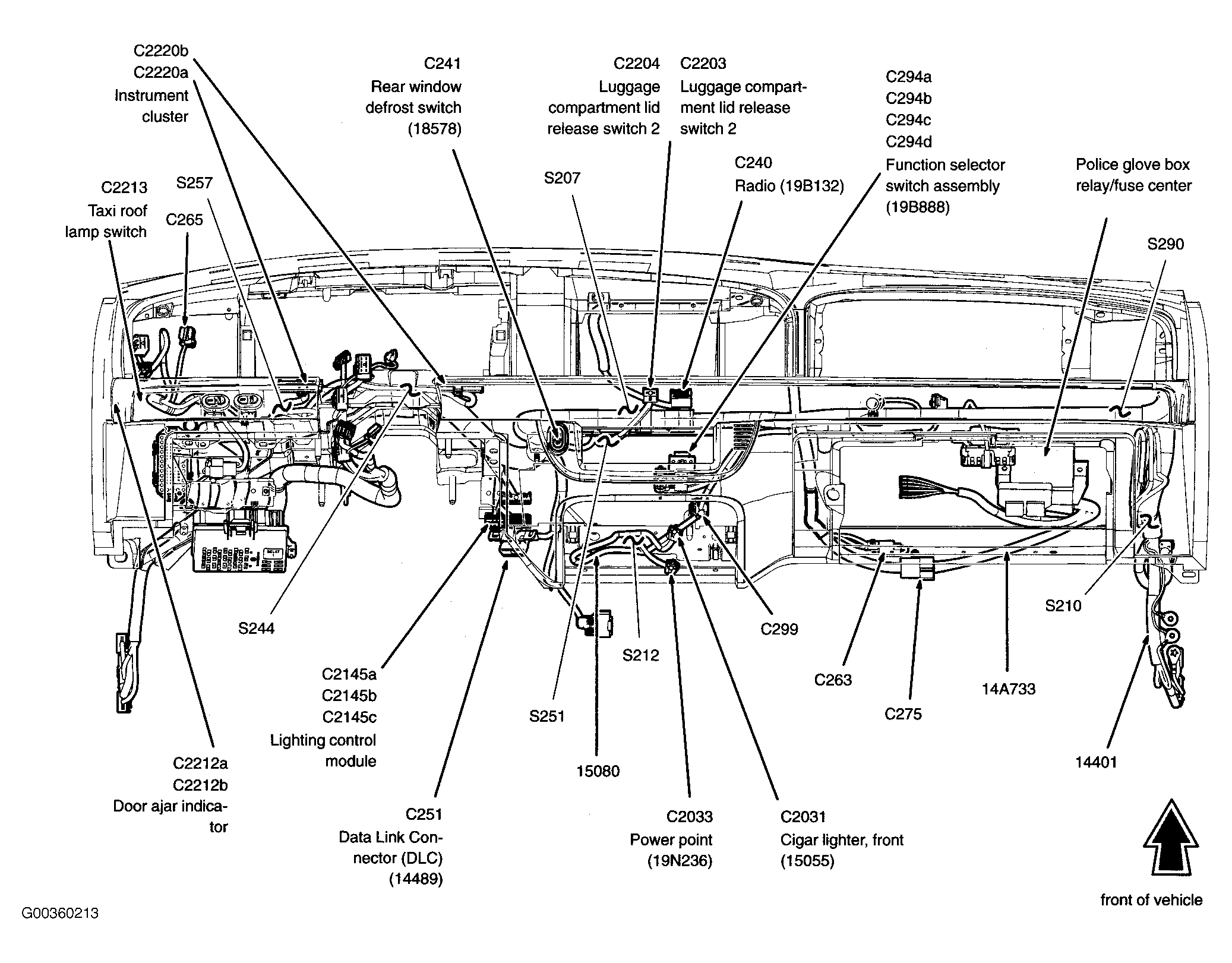

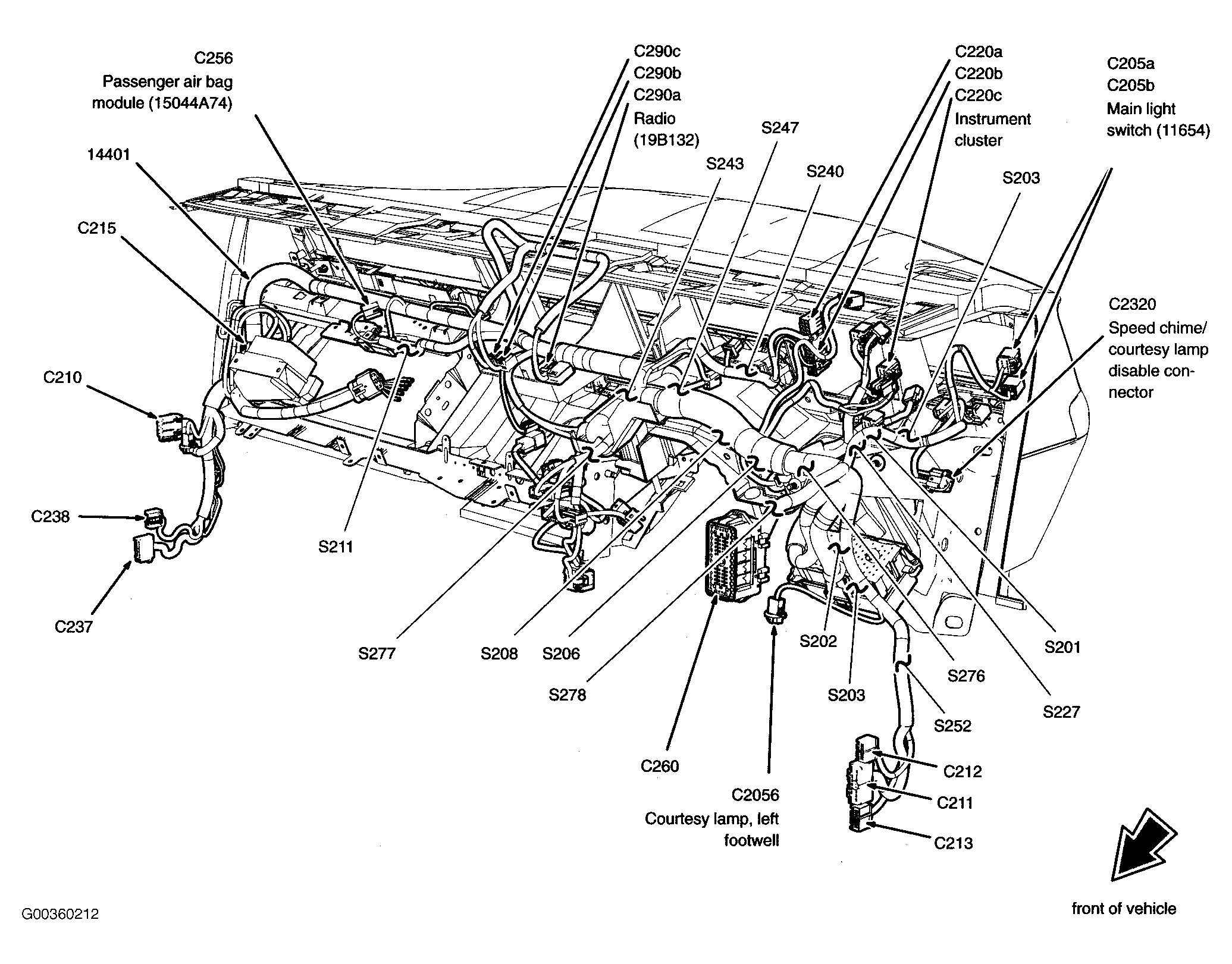

Fig 10: Rear Of Dash Panel
Courtesy of FORD MOTOR CO.

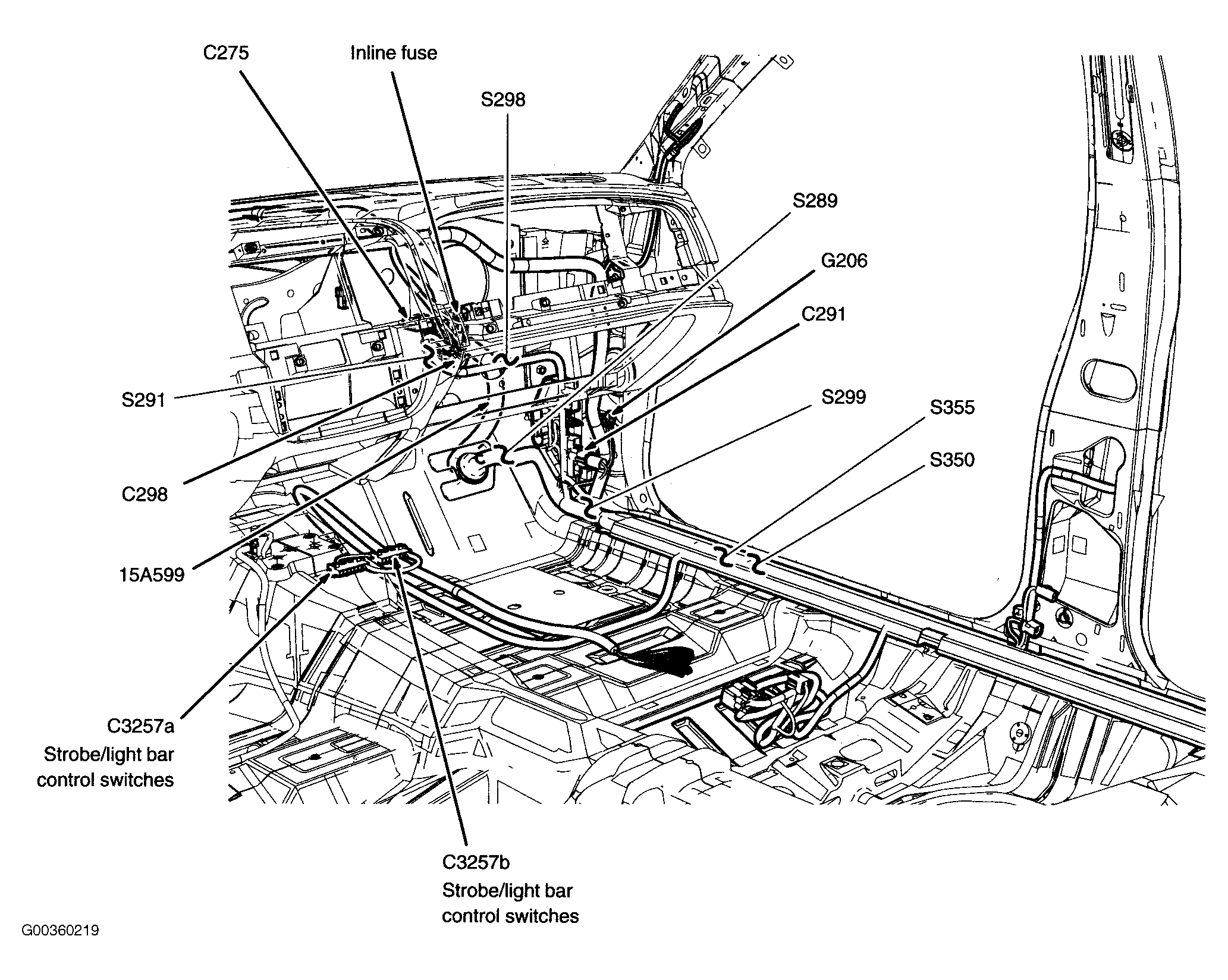

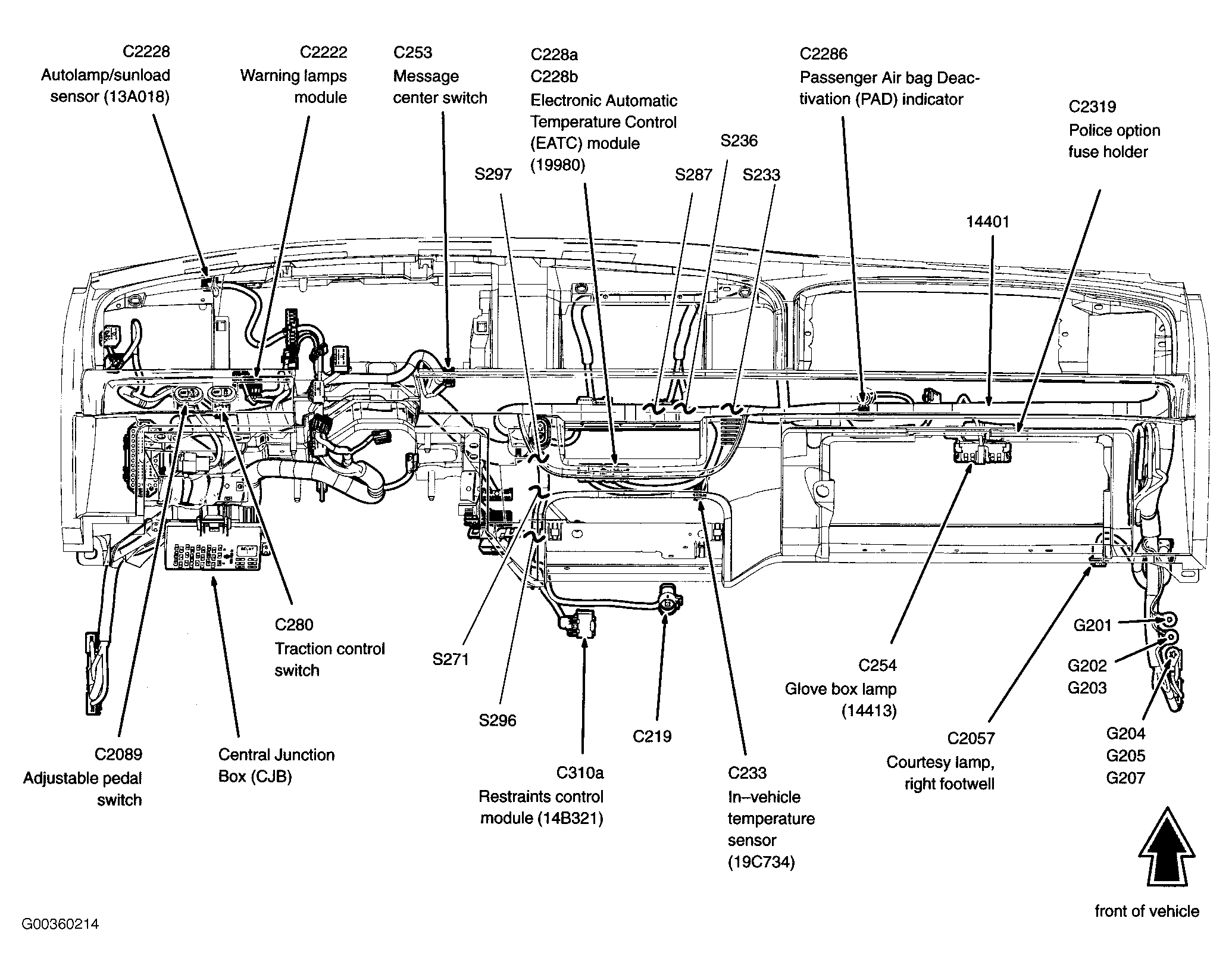

Fig 11: Front Of Dash Panel
Courtesy of FORD MOTOR CO.
Fig 12: Front Of Dash Panel
Courtesy of FORD MOTOR CO.

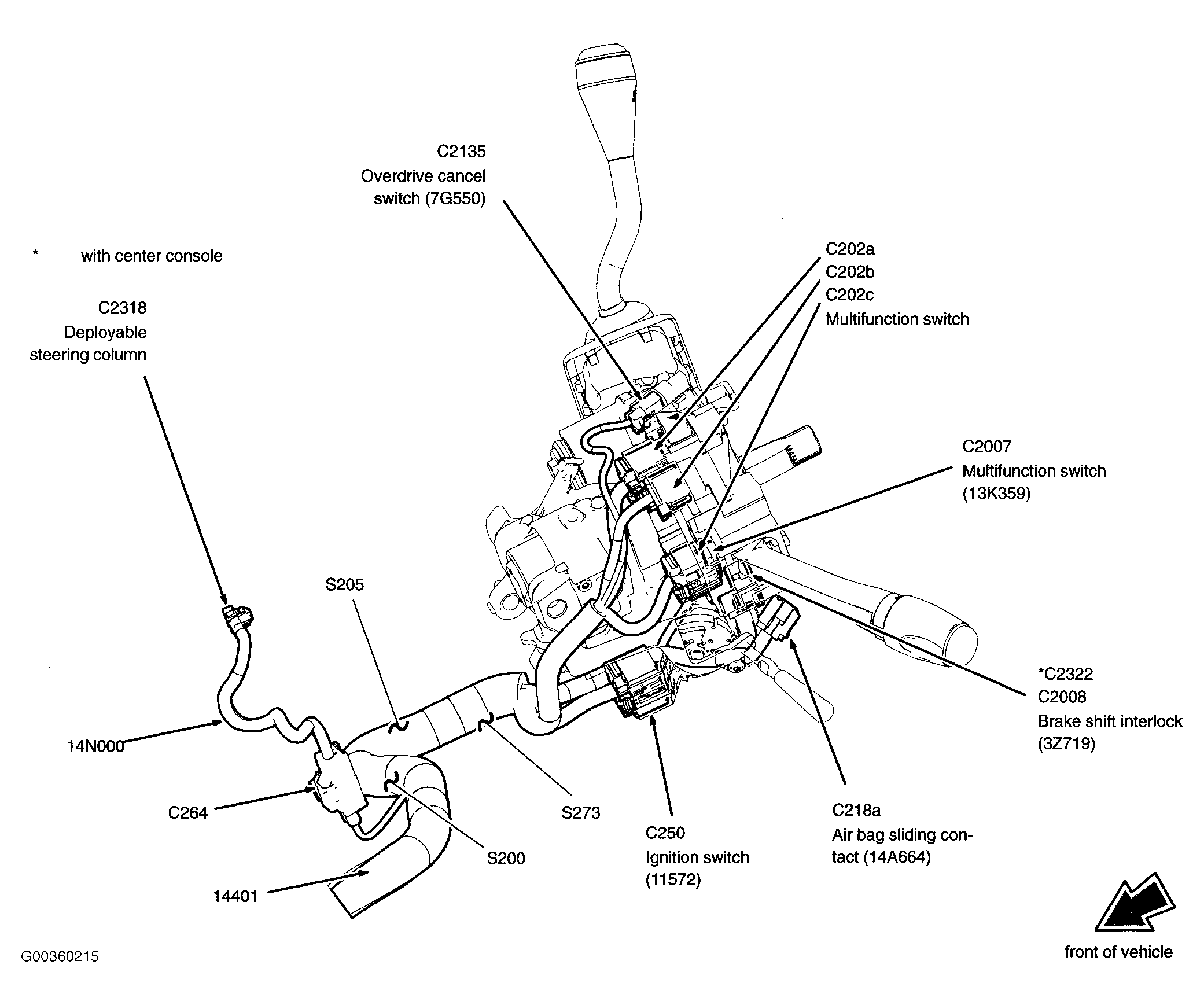

Fig 13: Steering Column
Courtesy of FORD MOTOR CO.

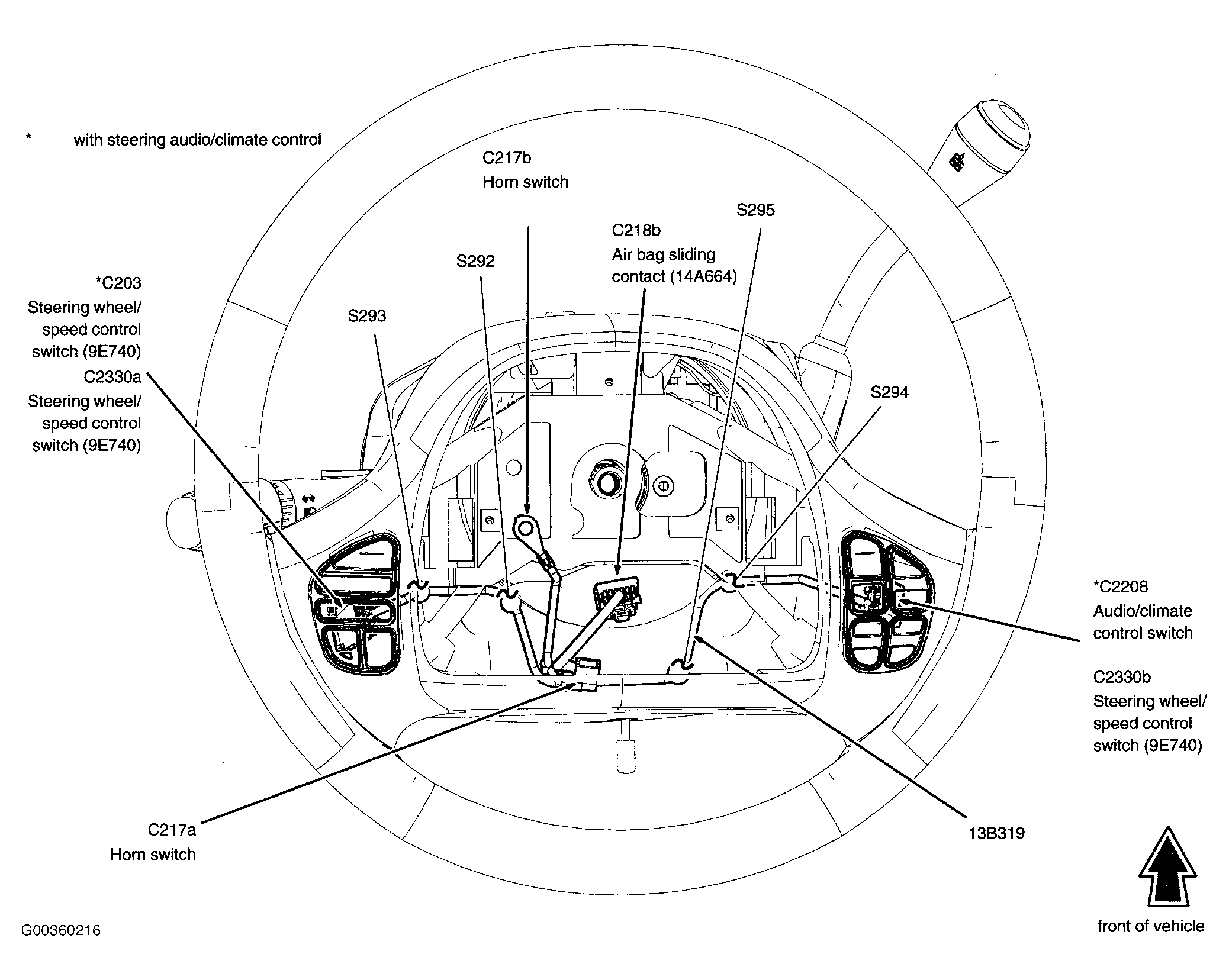

Fig 14: Steering Wheel
Courtesy of FORD MOTOR CO.

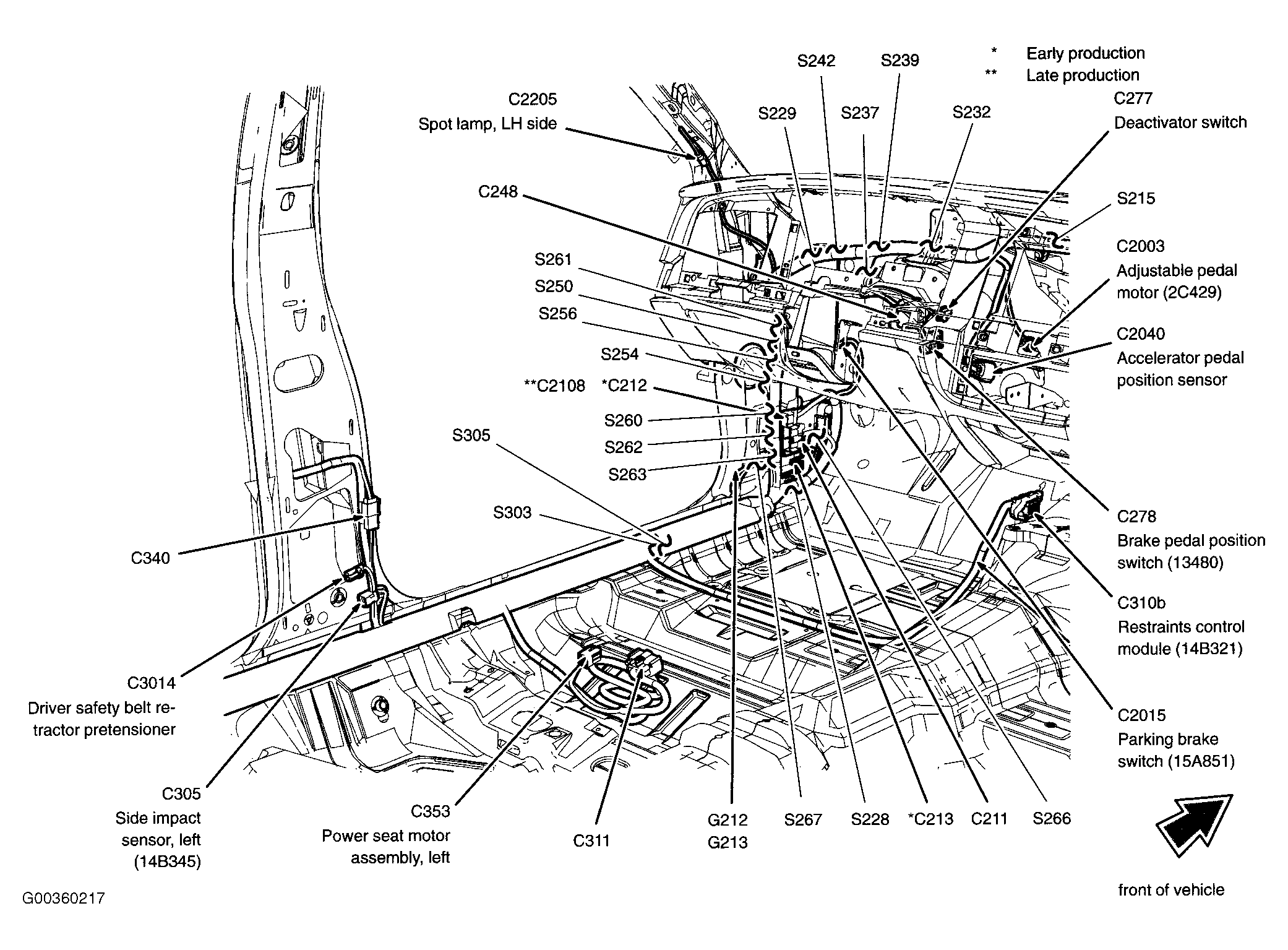

Fig 15: Left "A" Pillar
Courtesy of FORD MOTOR CO.

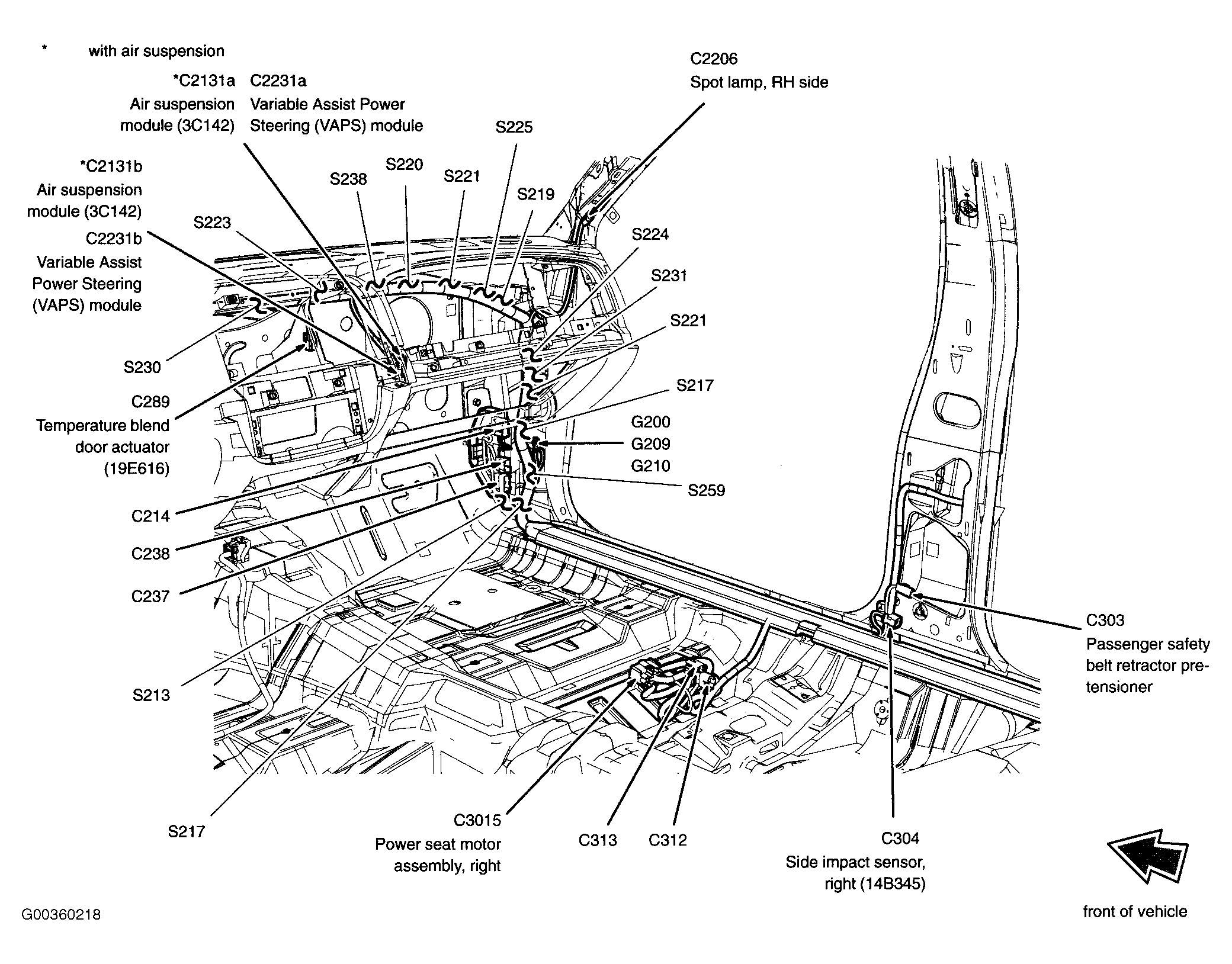

Fig 16: Right "A" Pillar
Courtesy of FORD MOTOR CO.
Fig 17: Right "A" Pillar (Police)
Courtesy of FORD MOTOR CO.
Fig 18: Left Rear Of Vehicle
Courtesy of FORD MOTOR CO.
Fig 19: Right Rear Of Vehicle
Courtesy of FORD MOTOR CO.

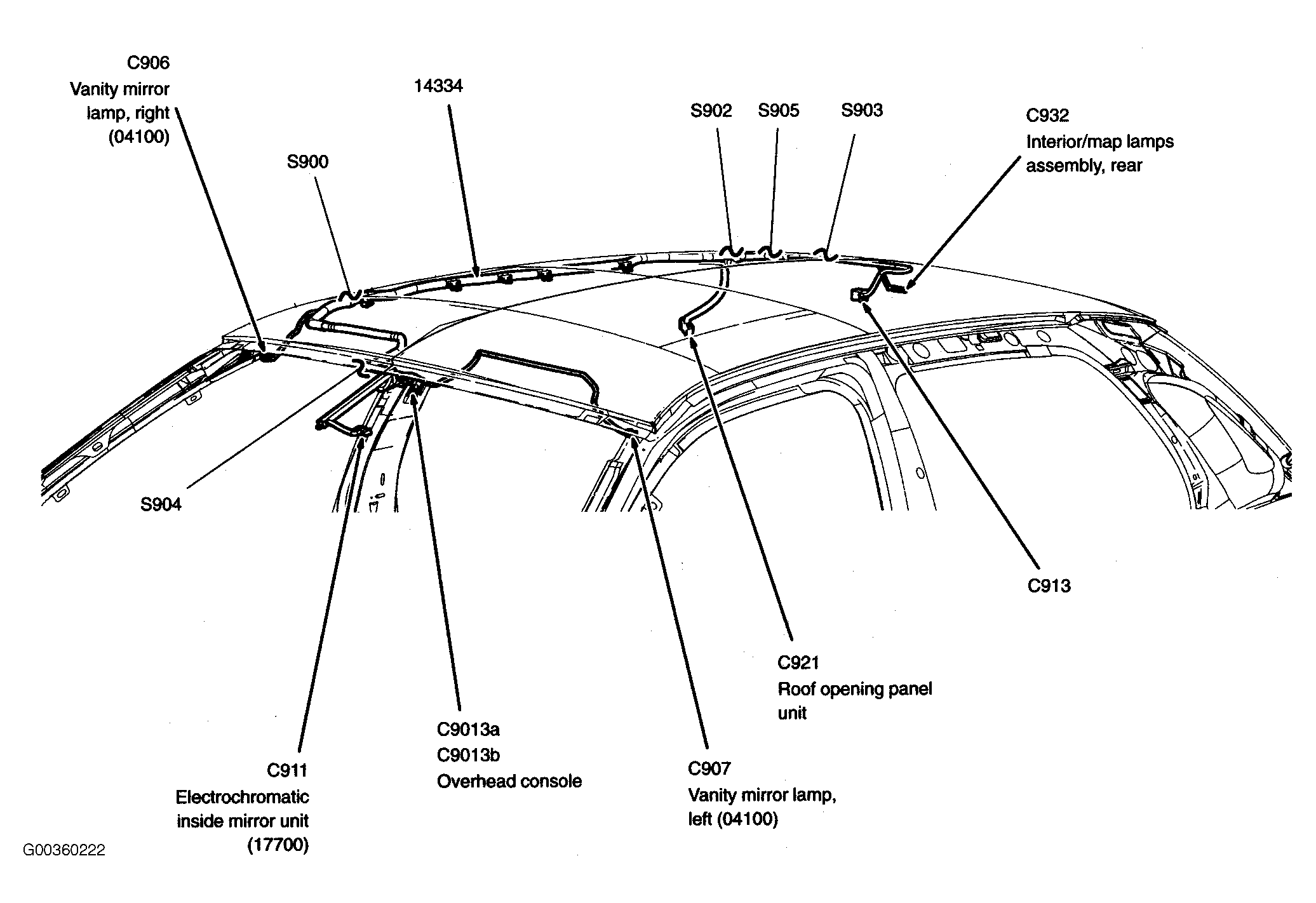

Fig 20: Roof (With Opening Panel)
Courtesy of FORD MOTOR CO.

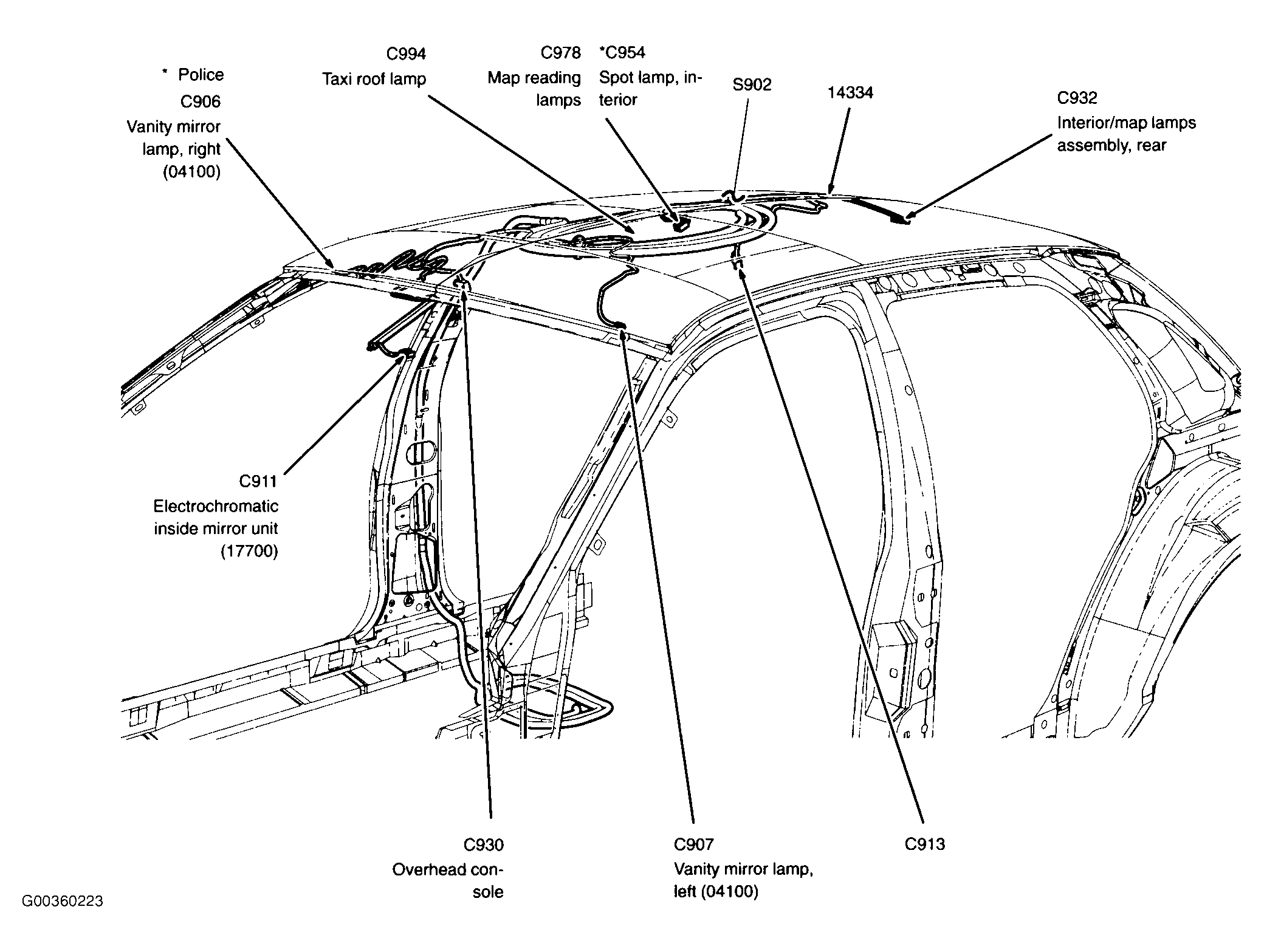

Fig 21: Roof
Courtesy of FORD MOTOR CO.

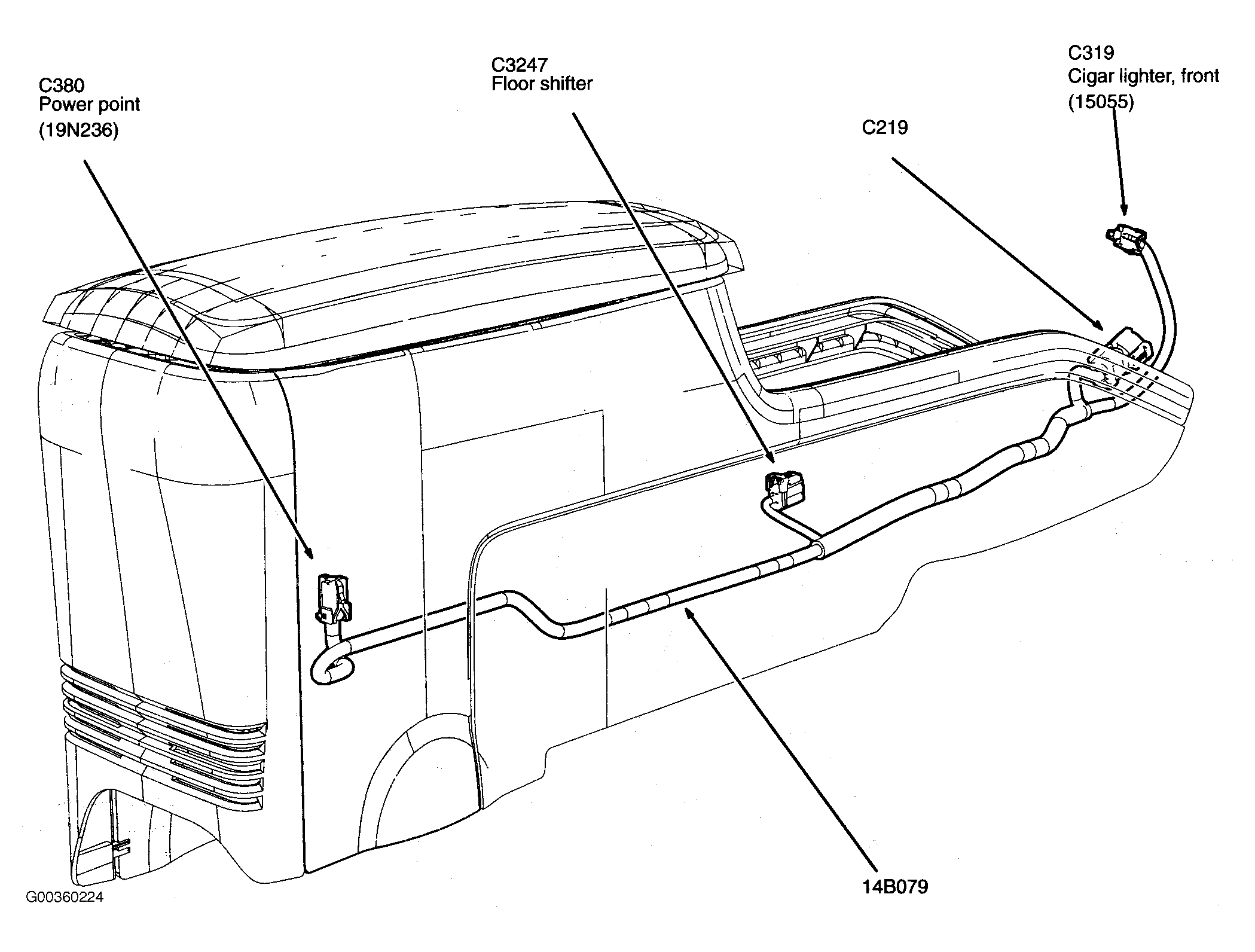

Fig 22: Center Console
Courtesy of FORD MOTOR CO.

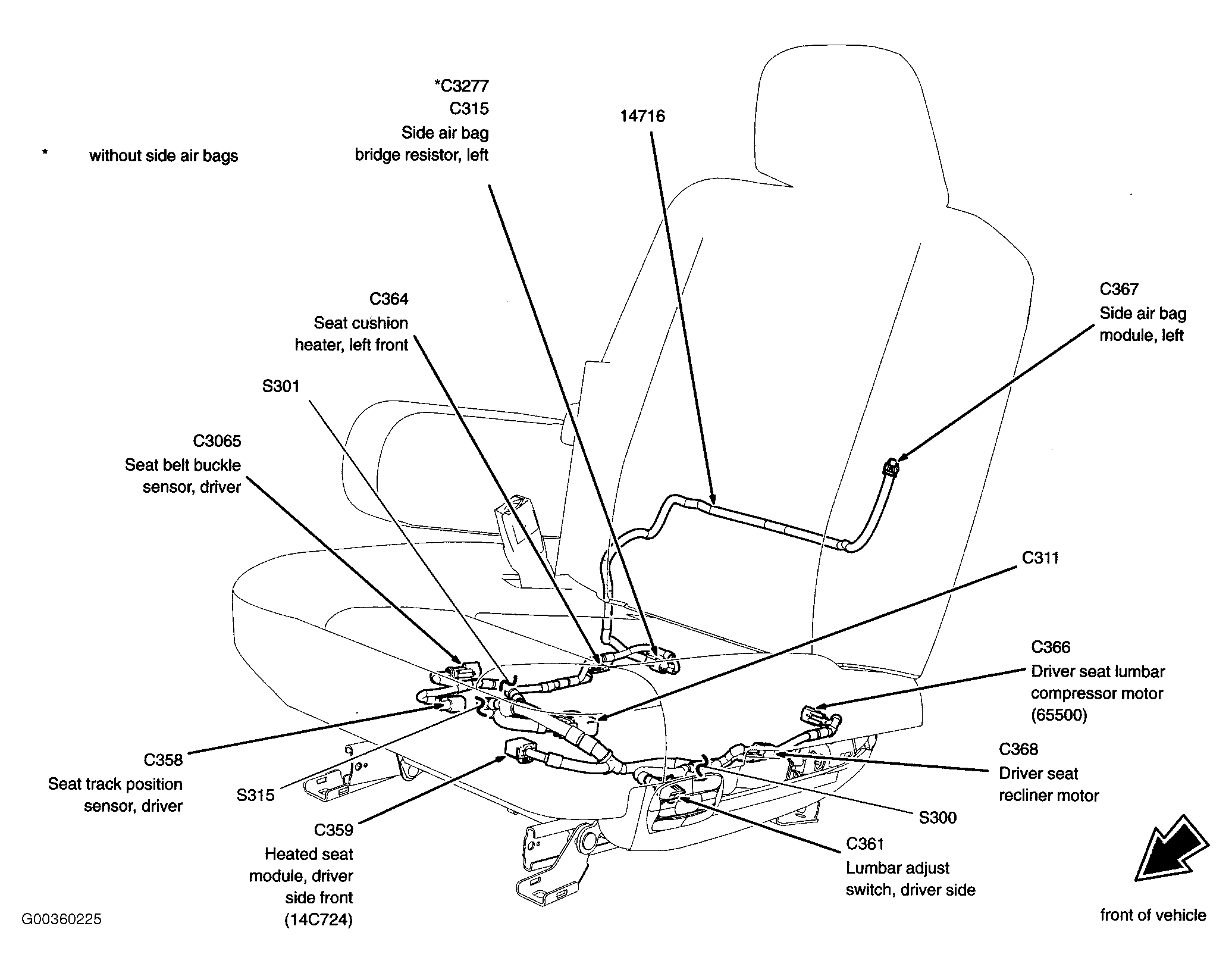

Fig 23: Driver's Seat
Courtesy of FORD MOTOR CO.

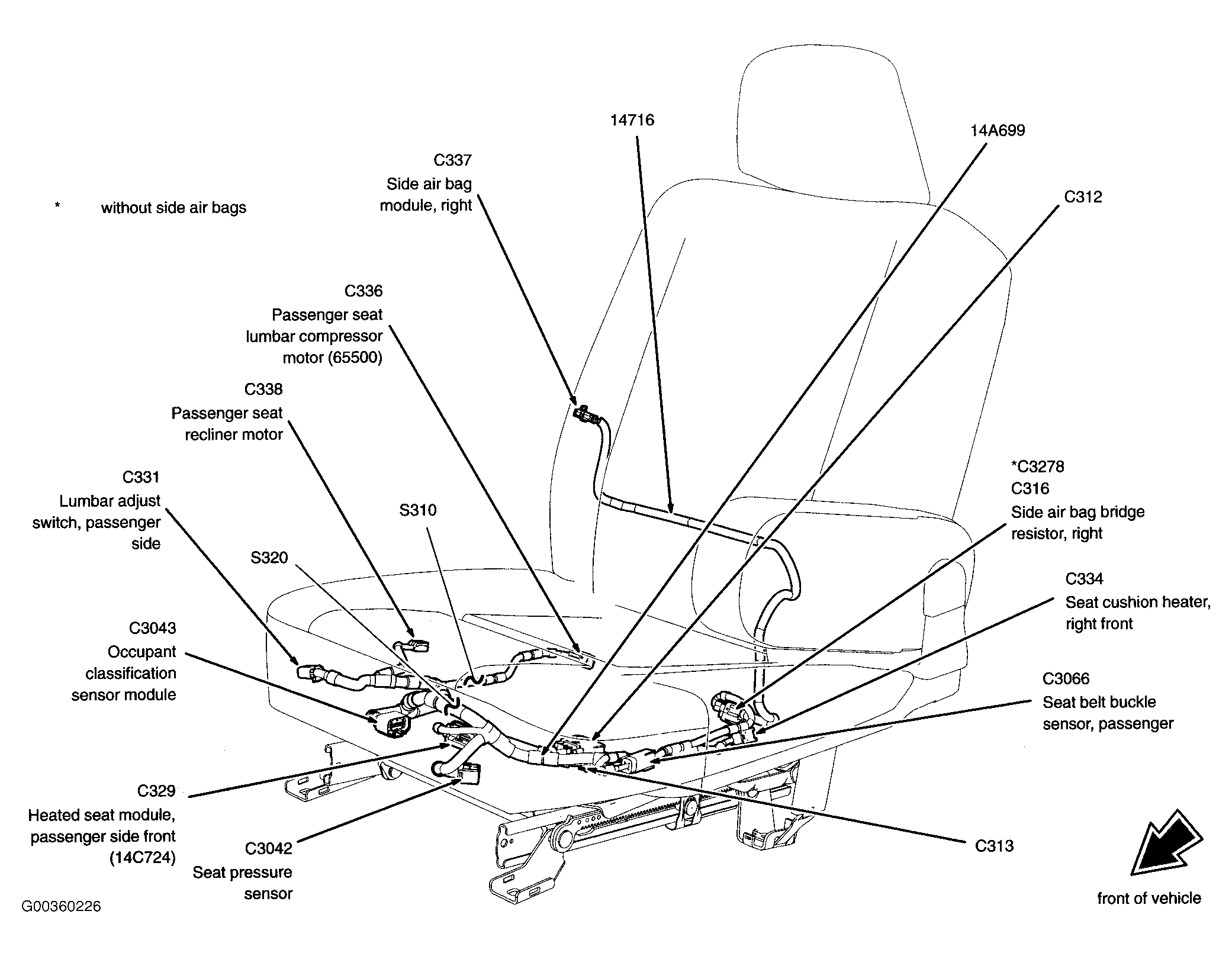

Fig 24: Passenger's Seat
Courtesy of FORD MOTOR CO.

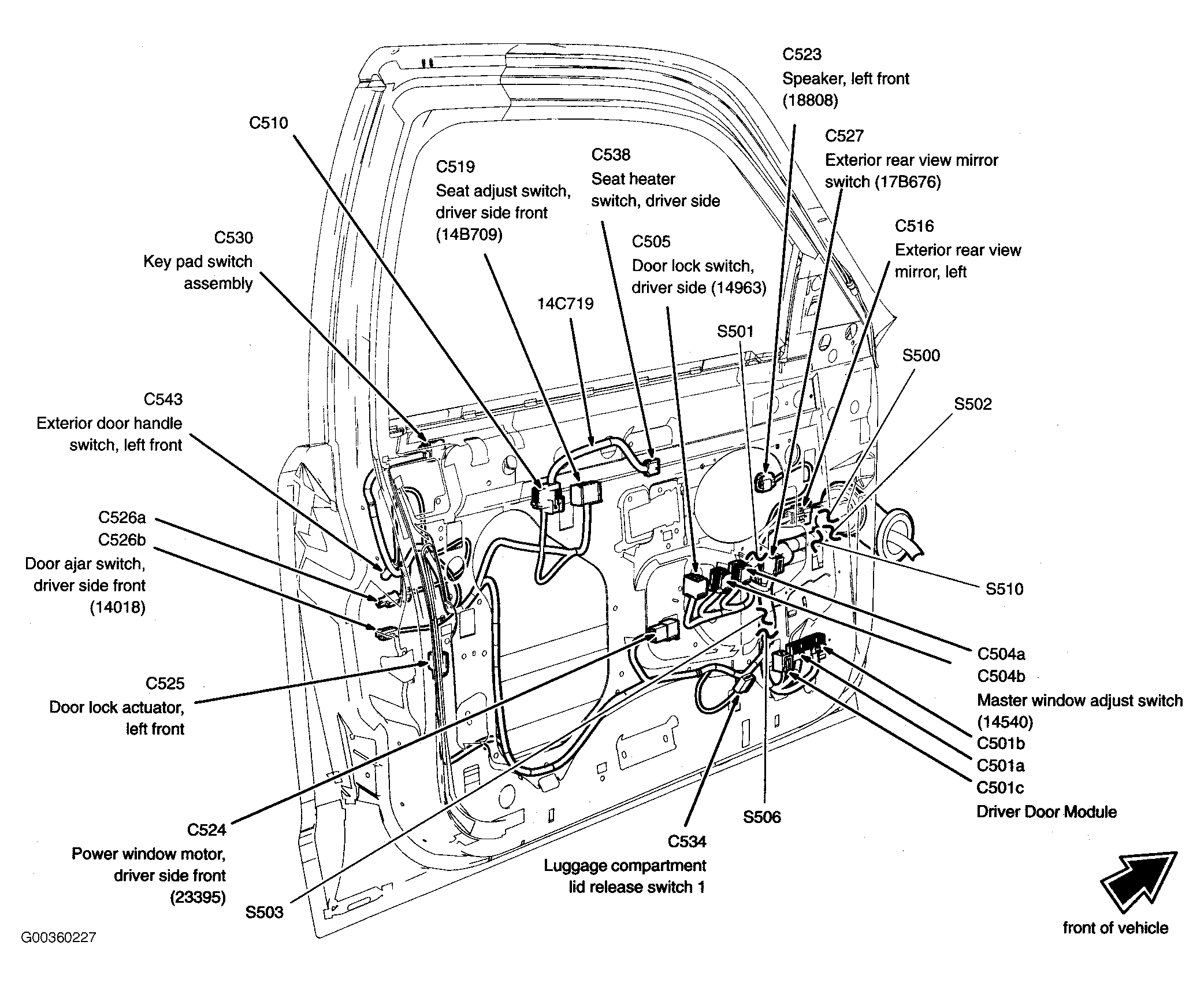

Fig 25: Driver's Door
Courtesy of FORD MOTOR CO.

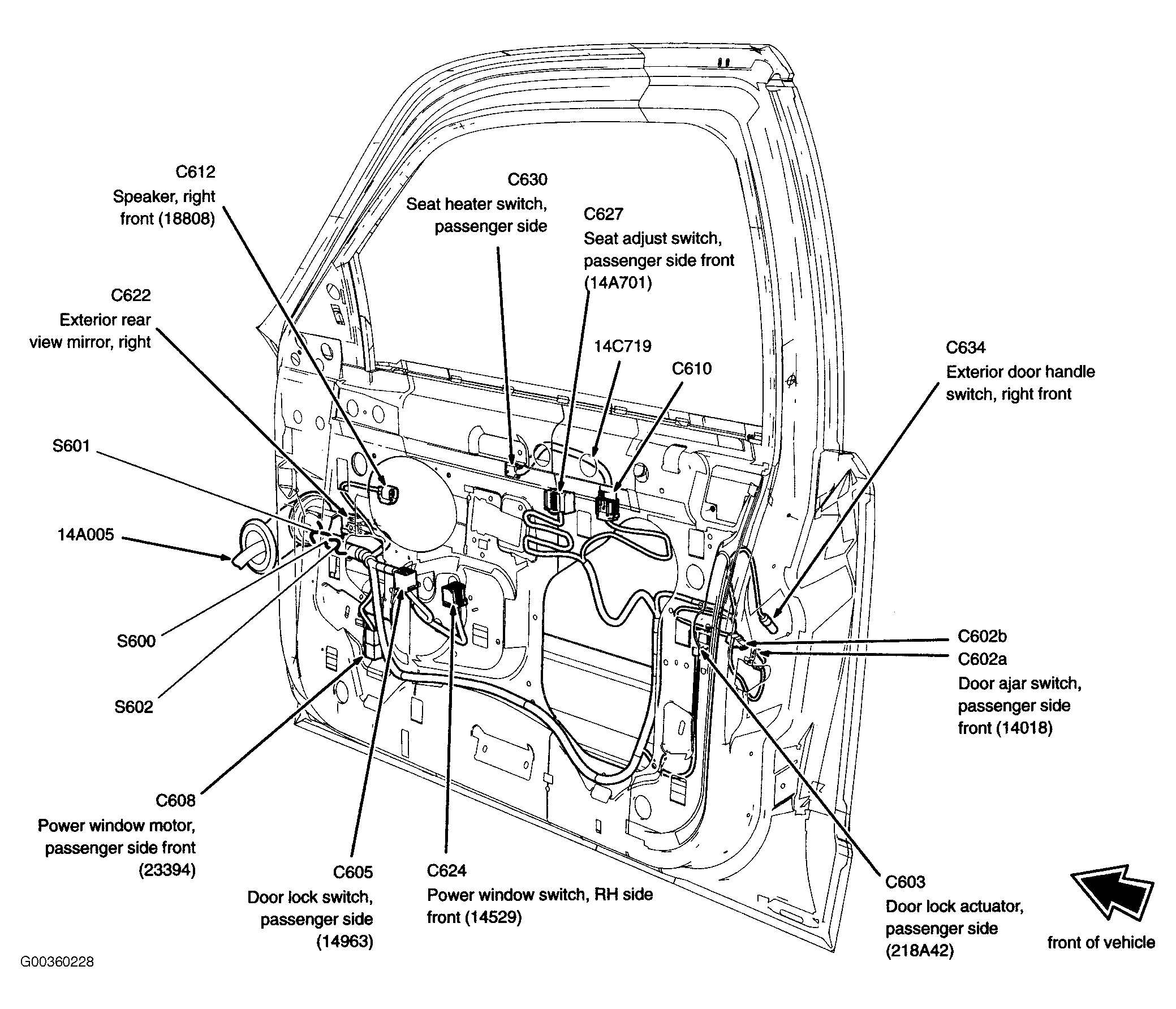

Fig 26: Passenger's Door
Courtesy of FORD MOTOR CO.

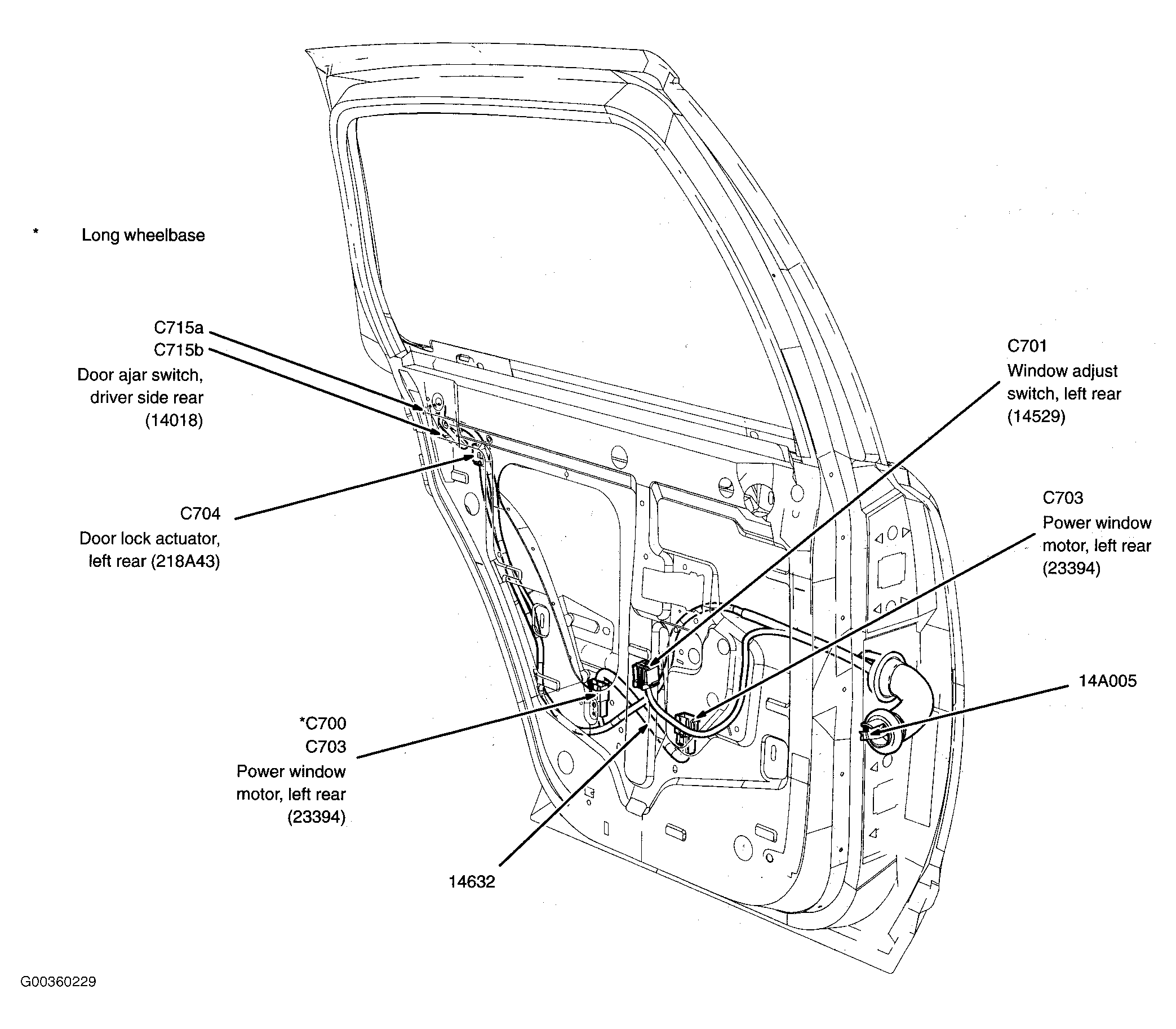

Fig 27: Left Rear Door
Courtesy of FORD MOTOR CO.

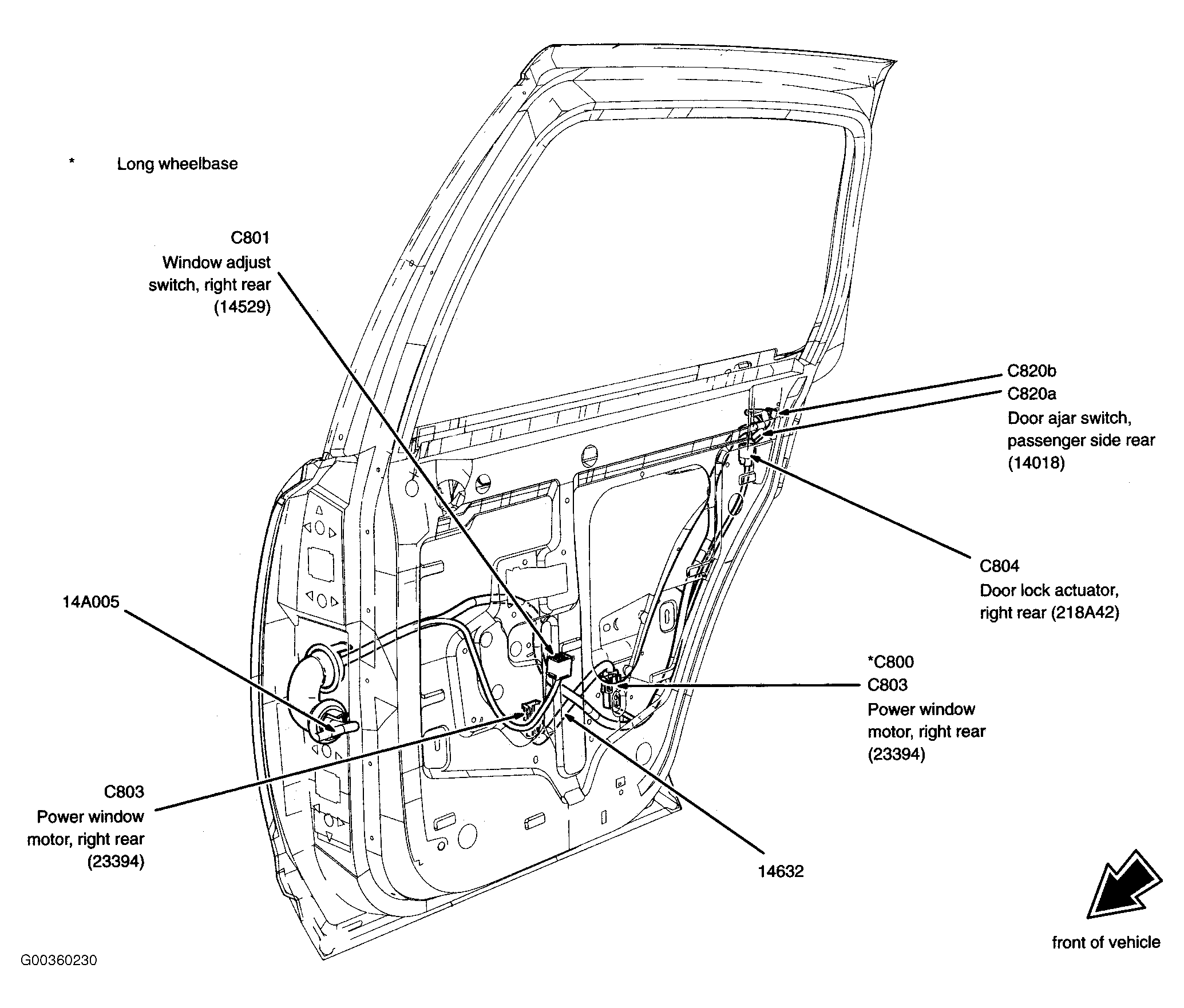

Fig 28: Right Rear Door
Courtesy of FORD MOTOR CO.

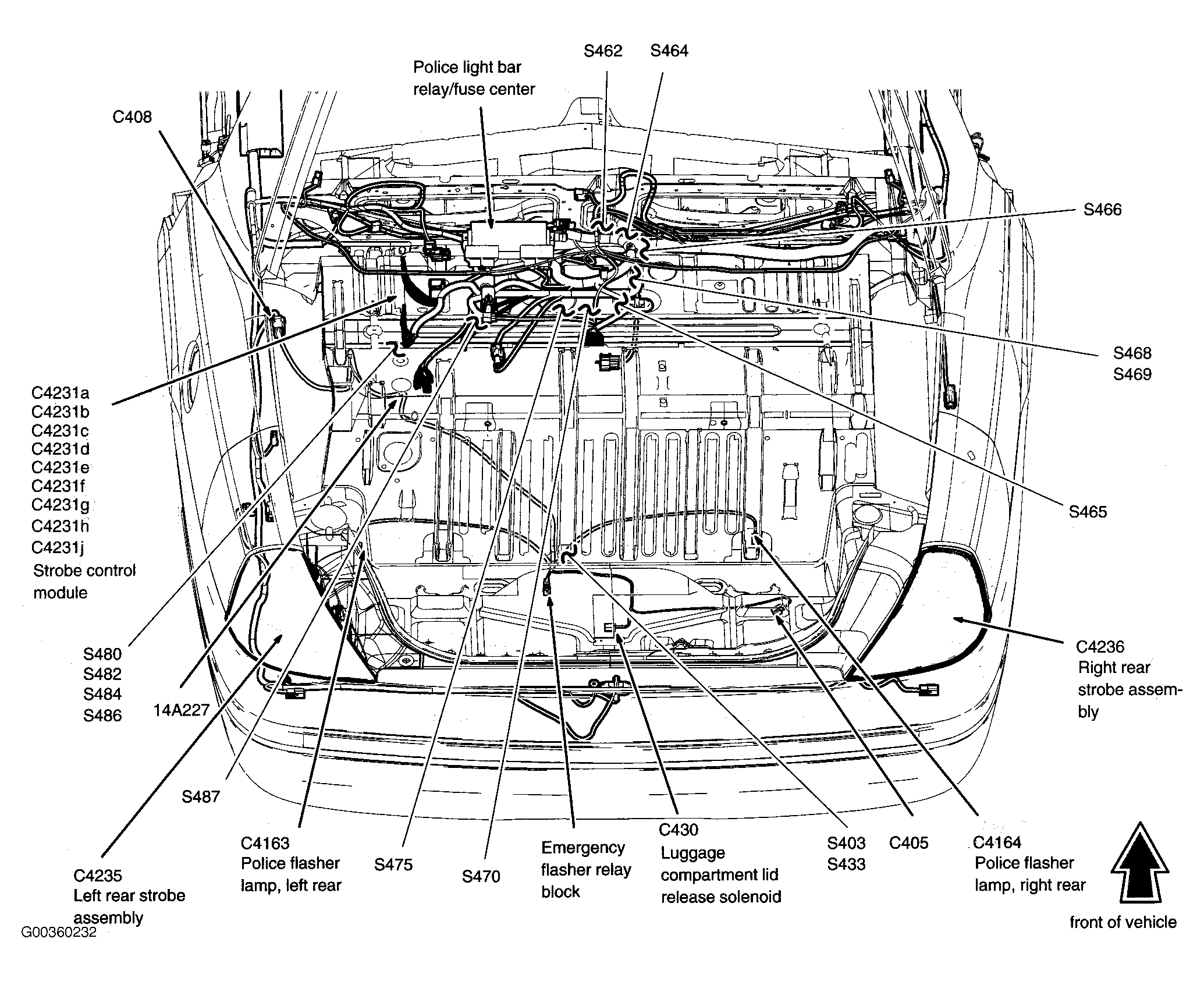

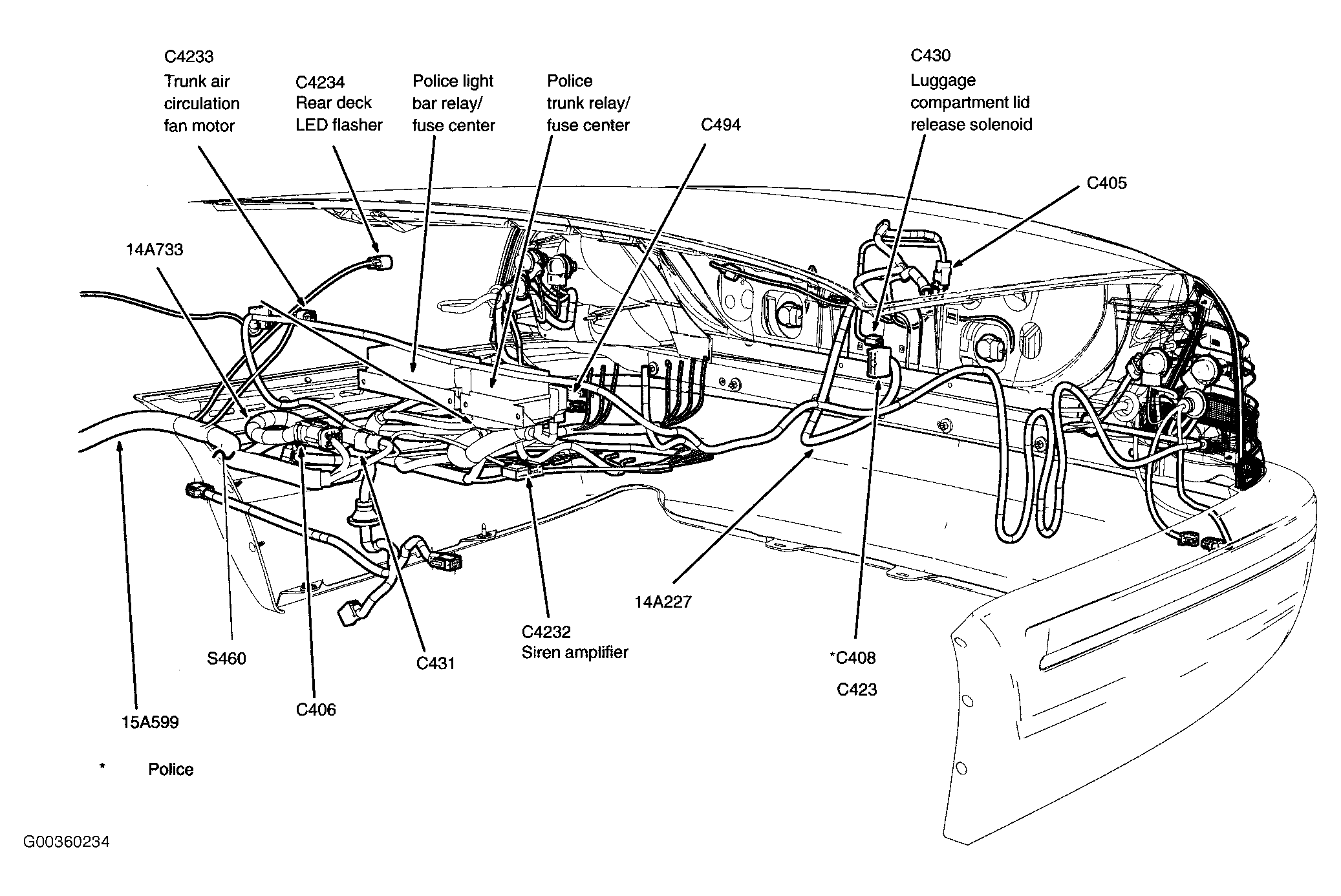

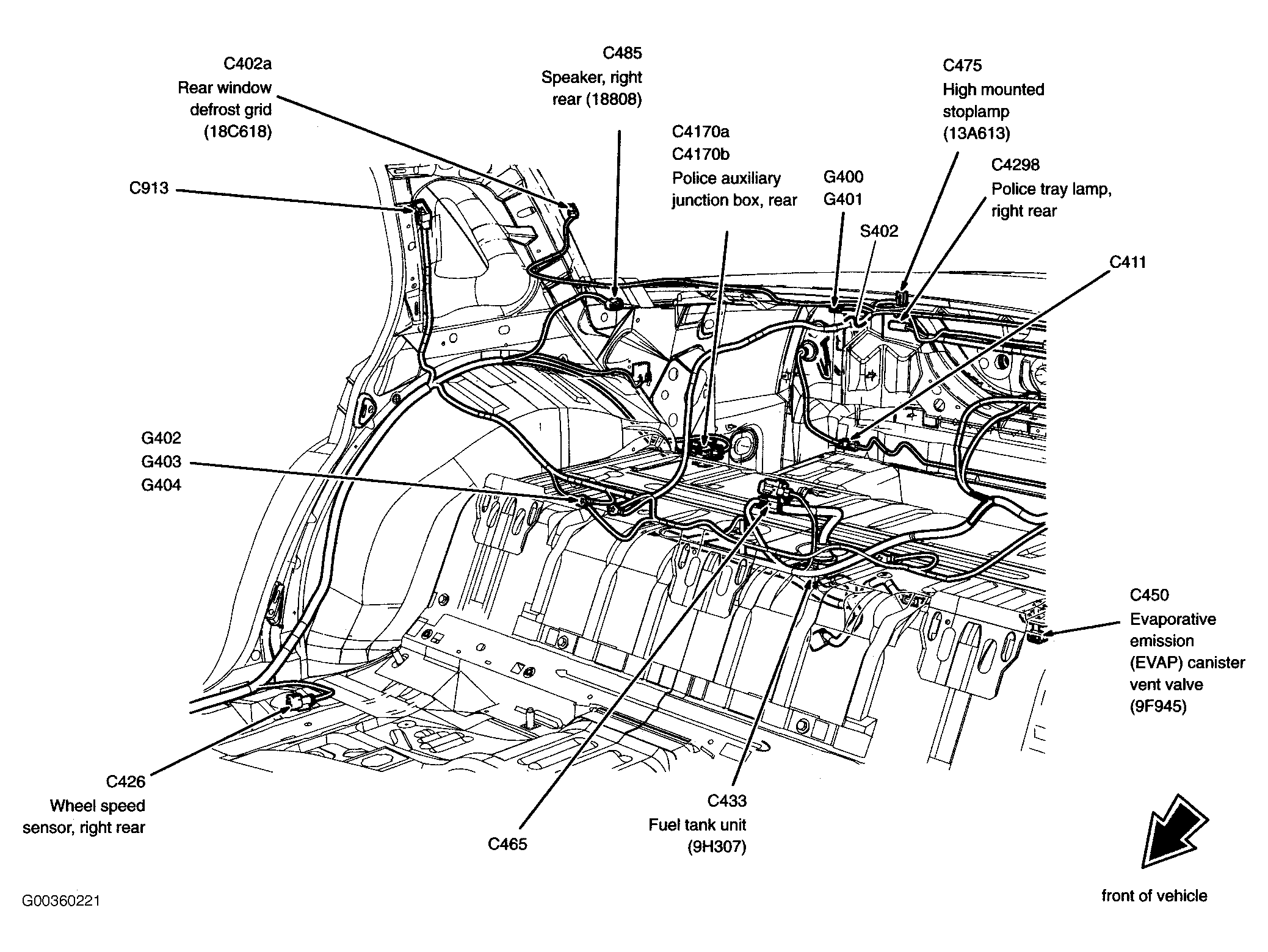

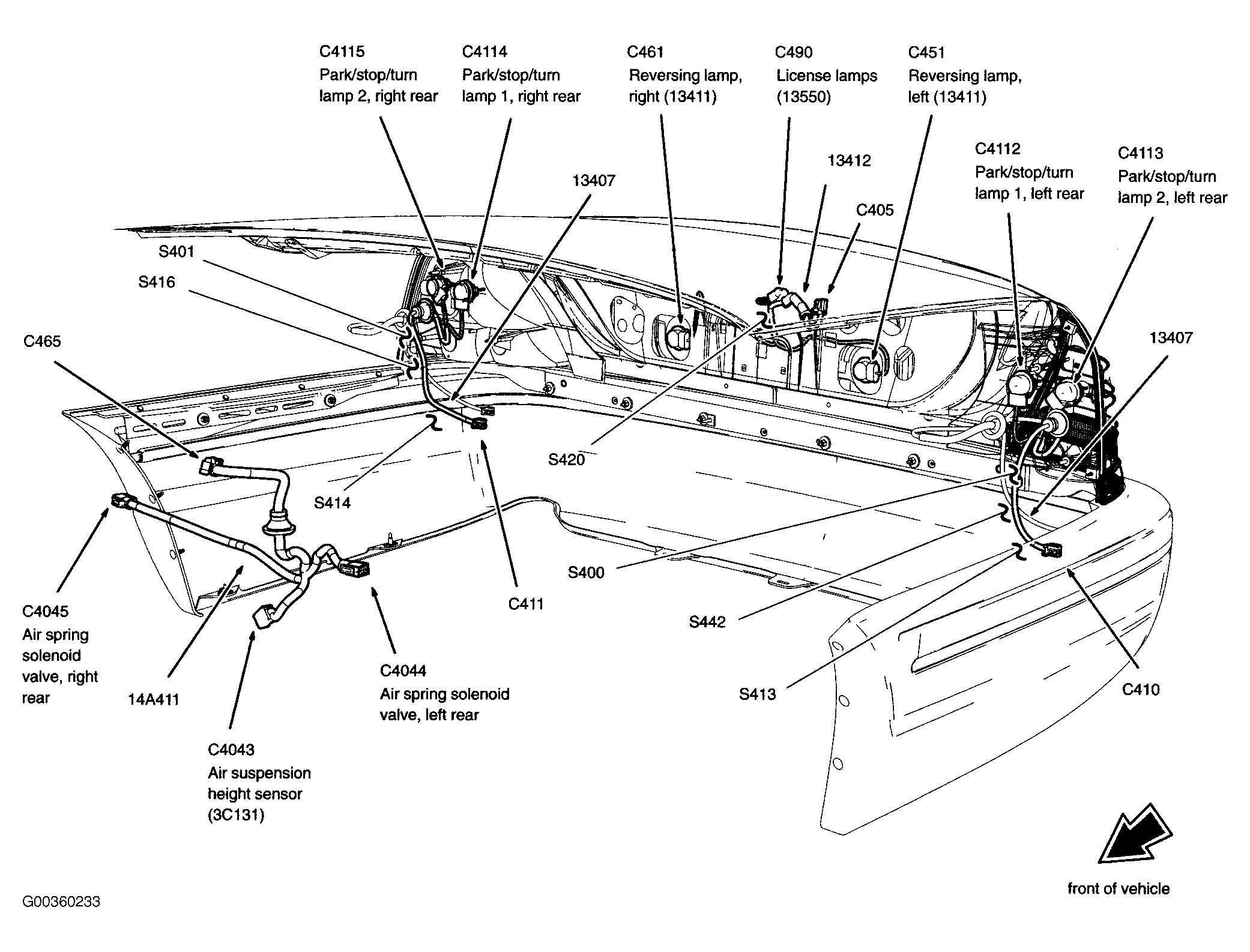

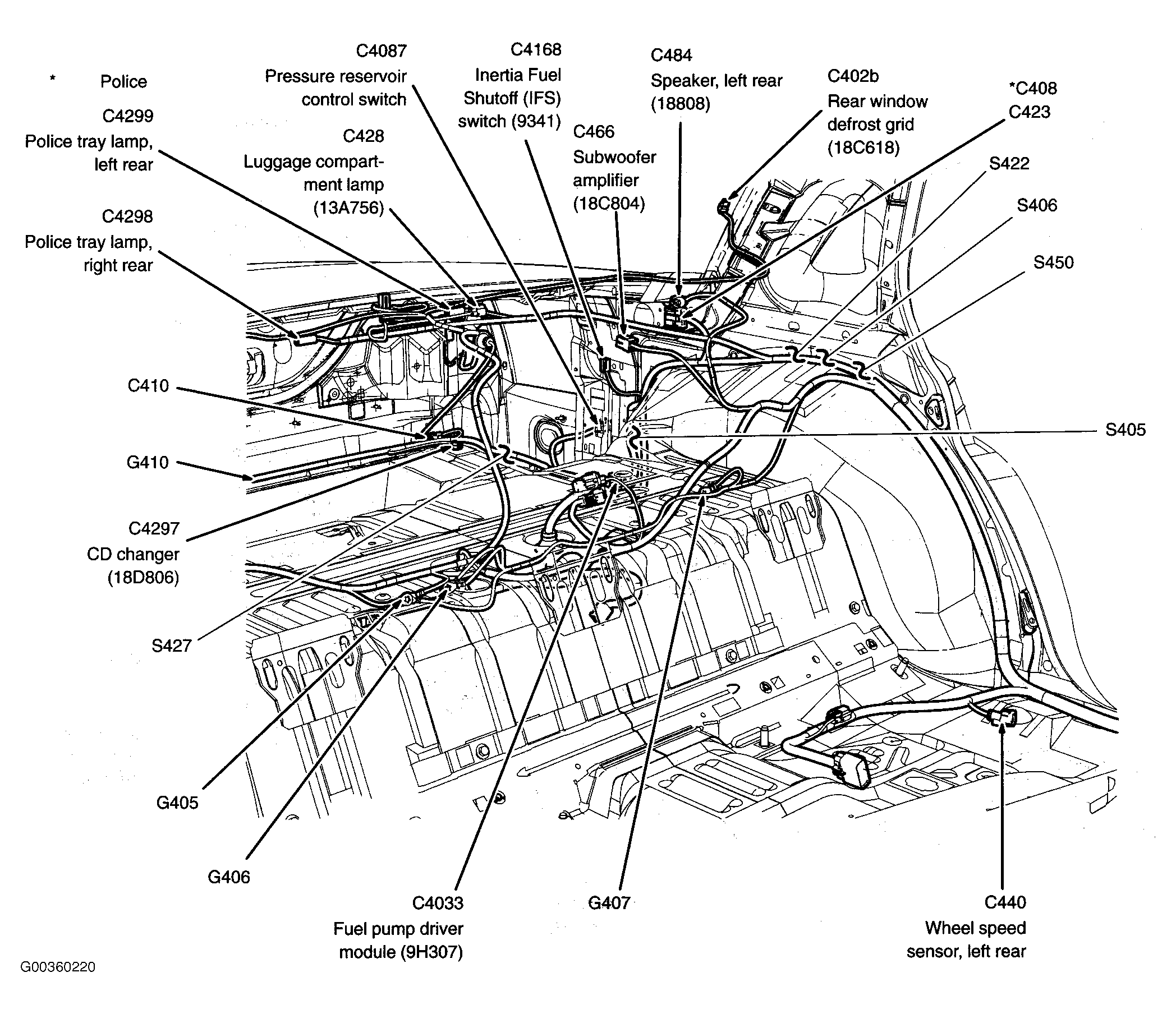

Fig 29: Trunk
Courtesy of FORD MOTOR CO.

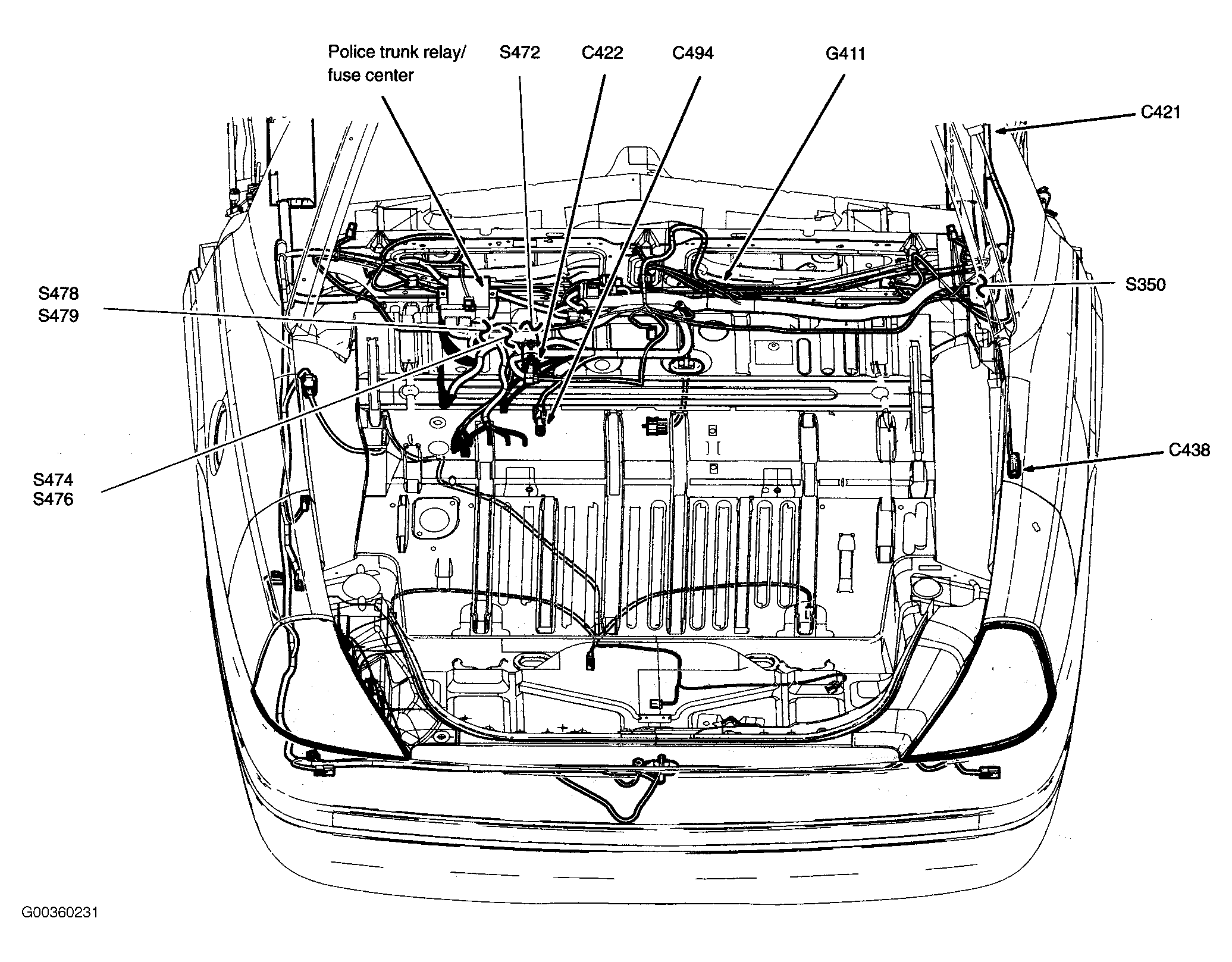

Fig 30: Trunk
Courtesy of FORD MOTOR CO.
Fig 31: Trunk
Courtesy of FORD MOTOR CO.
Fig 32: Trunk
Courtesy of FORD MOTOR CO.
