In-Vehicle Temperature Sensor

  1. Remove the instrument cluster finish panel. For additional information, refer to BODY SYSTEM - INTERIOR .
  2. Remove the components in the order indicated in the following illustration and table.

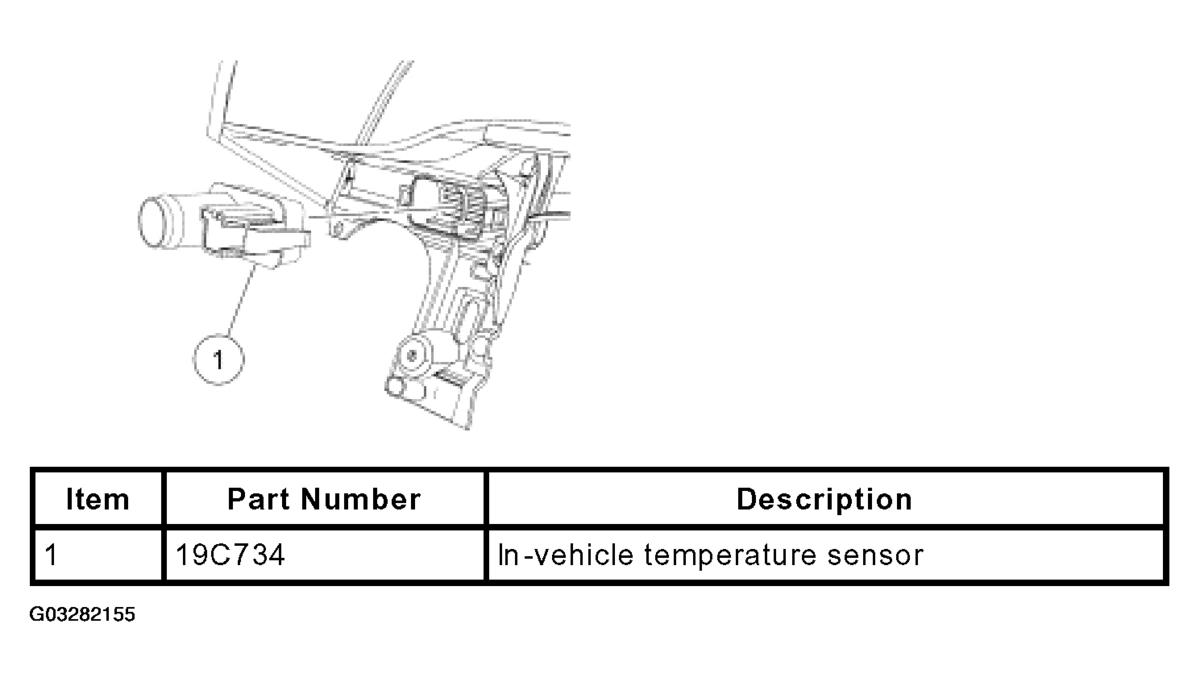

    Fig 1: In-Vehicle Temperature Sensor Removal Sequence
    G03282155Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
