Climate Control Assembly

  1. Remove the components in the order indicated in the following illustration and table.

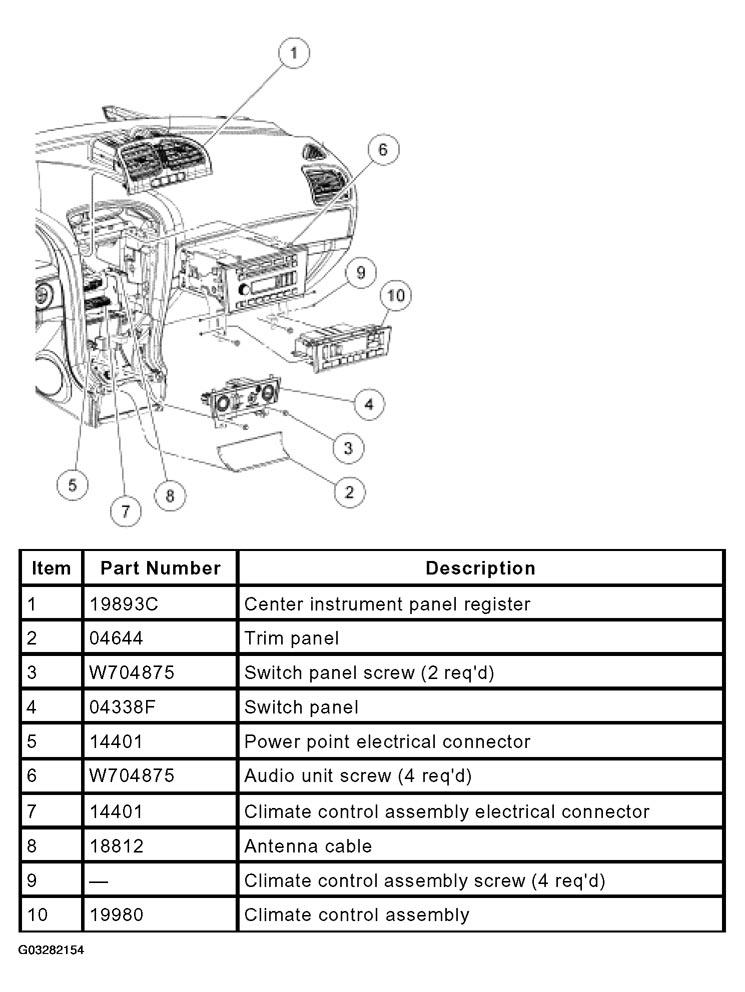

    Fig 1: Climate Control Assembly Removal Sequence
    G03282154Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
