Passenger front door lock switch

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

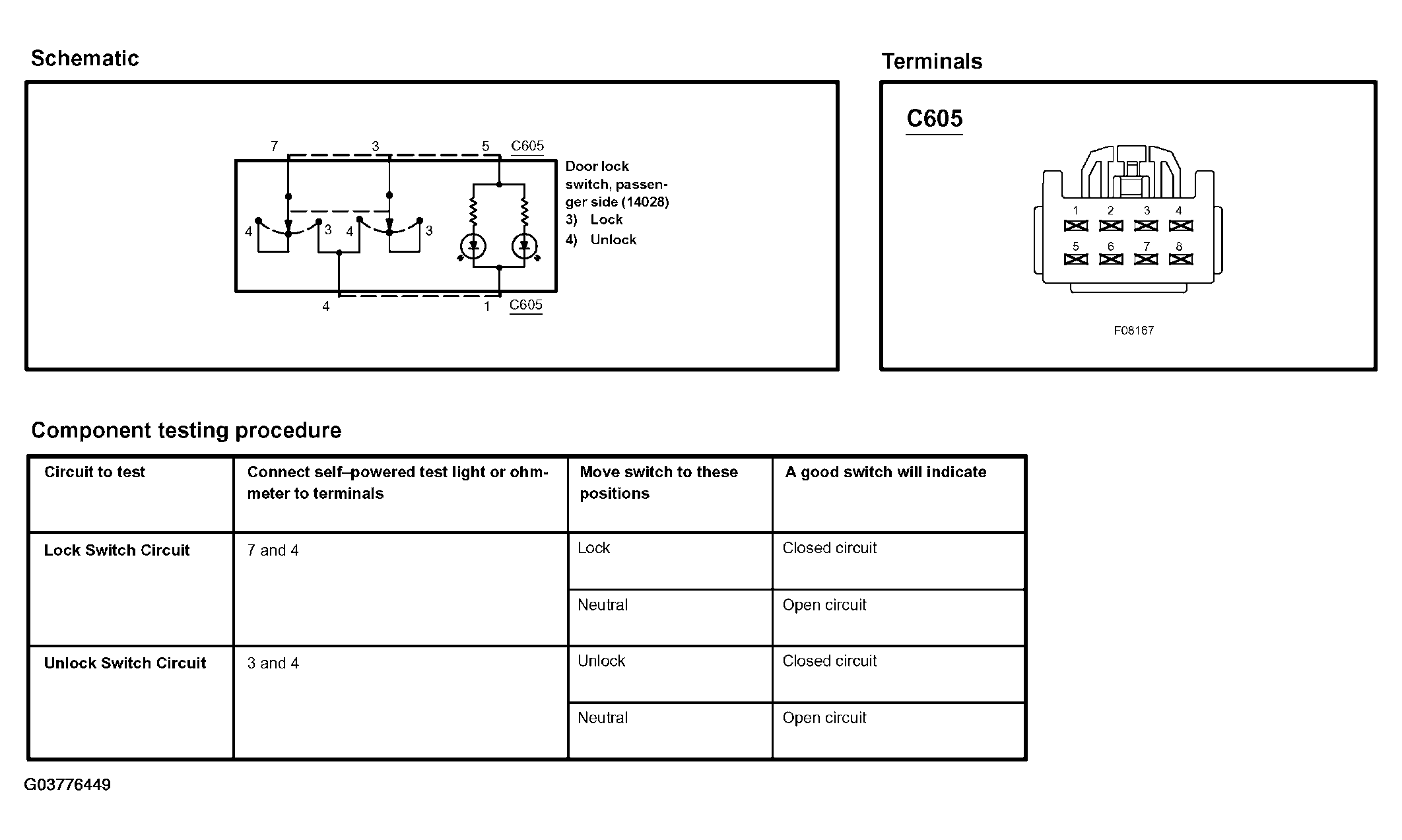

Fig 1: Testing Passenger Front Door Lock Switch
G03776449Courtesy of FORD MOTOR CO.
