Heater Hoses

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the coolant hoses with plain water only if needed.

Drain the engine coolant. For additional information, refer to ENGINE COOLING .

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

HEATER HOSES REMOVAL STEPS

Part	Steps
Heater tube assembly	2, 4-5, 9-13
Heater hoses	1-4, 6-10, 14-17

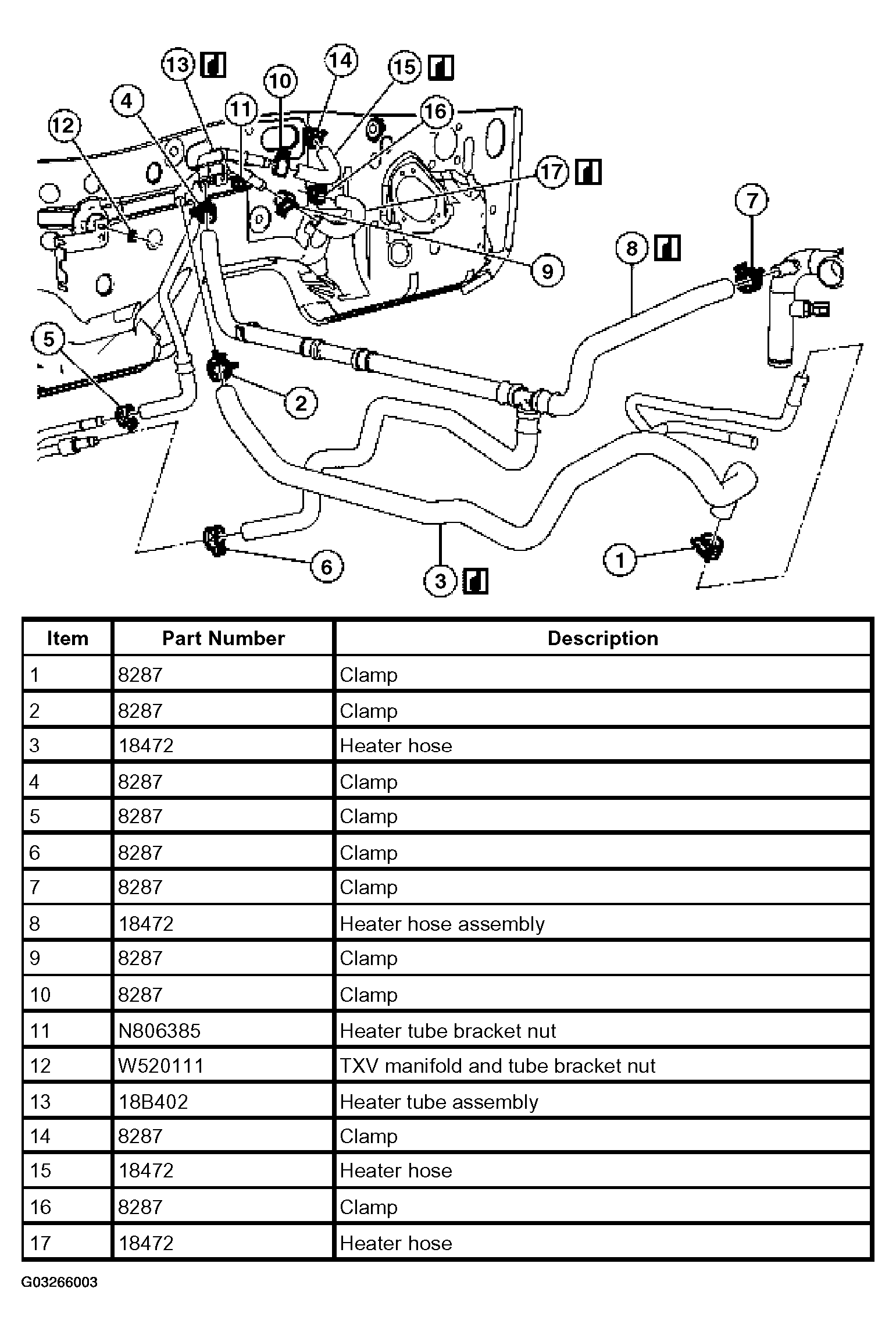

Fig 1: Removal Sequence Of Heater Hoses

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Fill the engine coolant level. For additional information, refer to ENGINE COOLING .
