Blower Motor - Front

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH lower instrument panel insulator.
  2. Remove the parts in the order indicated in the following illustration and table.

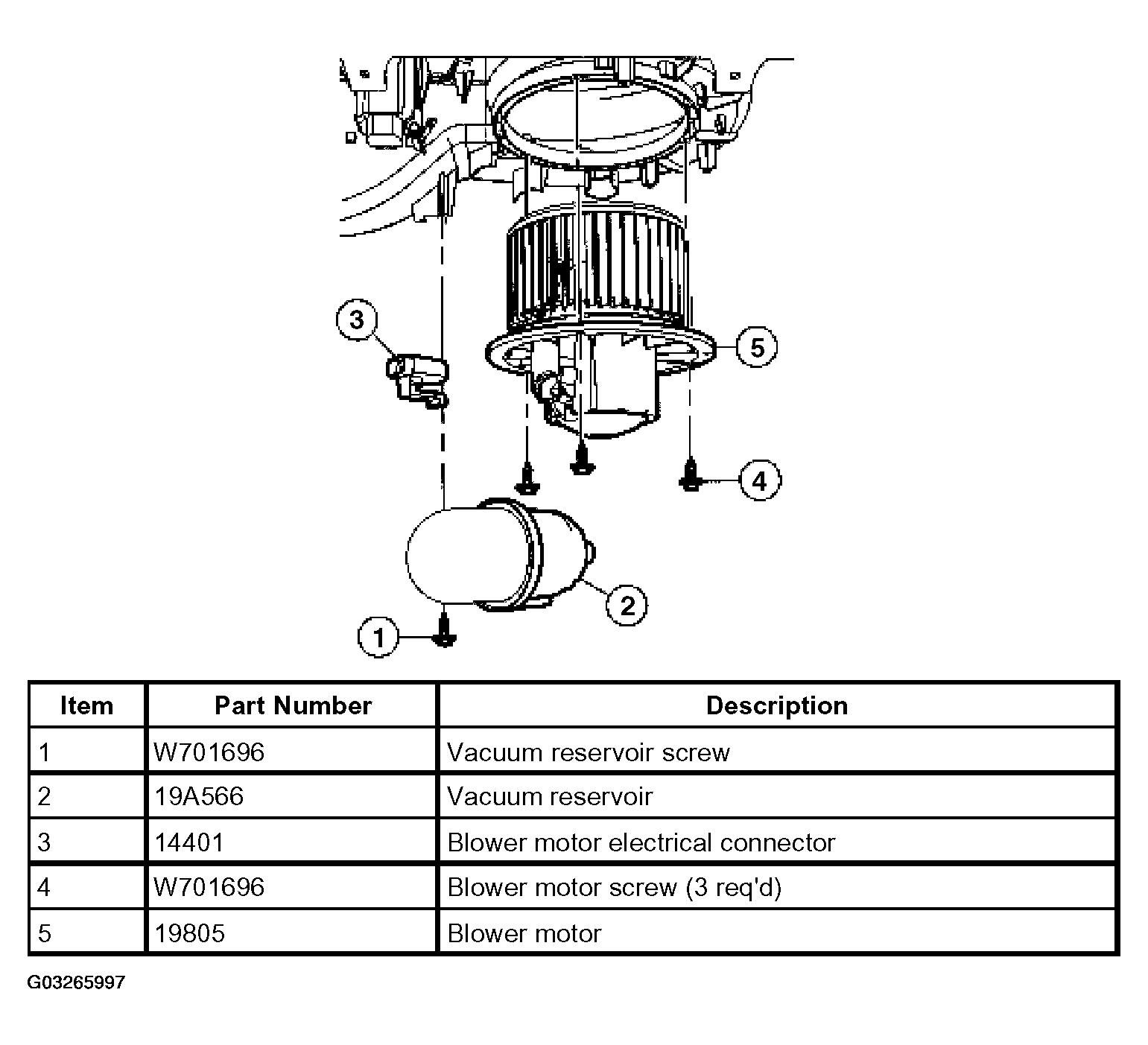

    Fig 1: Removal Sequence Of Front Bower Motor Parts
    G03265997Courtesy of FORD MOTOR CO.
