Air Conditioning Line (Peanut) Fitting: Connect
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.
- Clean all dirt or foreign material from the fittings.

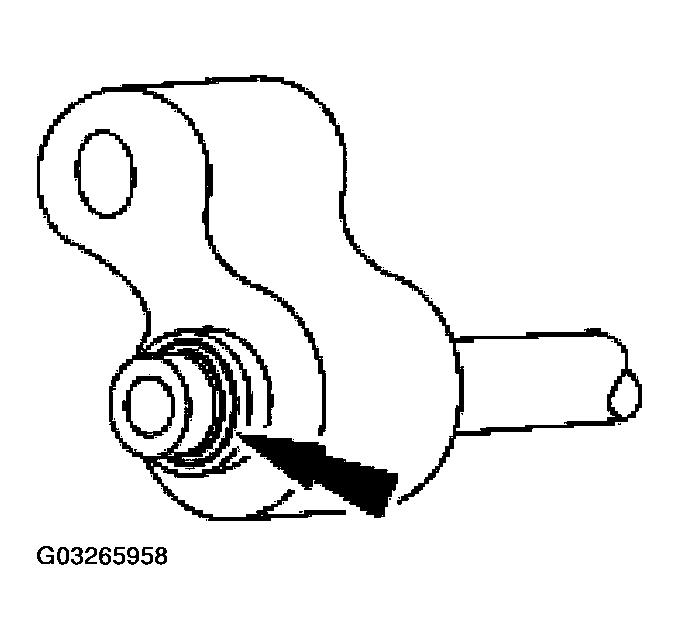

- Install the O-ring seal.

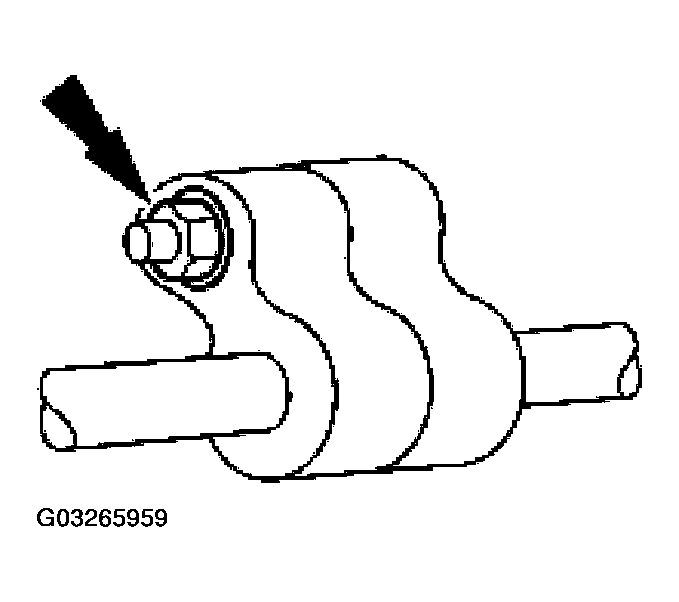

- Assemble the male and female fittings together
CAUTION:
Use only the new O-ring seals. The use of any O-ring seals other than those specified in the Ford Master Parts Catalog may result in intermittent leakage during vehicle operation.
NOTE:
When correctly assembled, the male and female fittings should be flush.
