Auxiliary Blower Motor Resistor

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

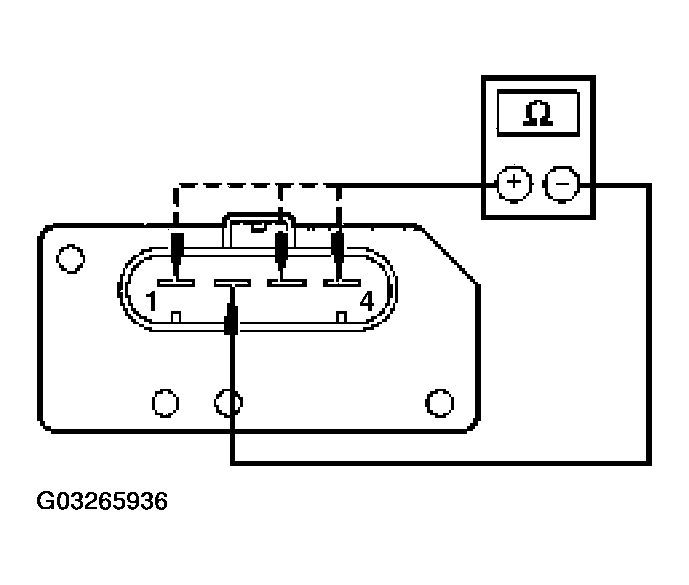

Fig 1: Checking Auxiliary Blower Motor Resistor

Courtesy of FORD MOTOR CO.

BLOWER MOTOR RESISTOR RESISTANCE

Blower Motor Resistor Pins	Resistance
4 and 2	2.3-2.9 ohms
2 and 3	0.8-1.1 ohms
2 and 1	0.2-0.4 ohms
