ATC Solenoid and Manifold
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

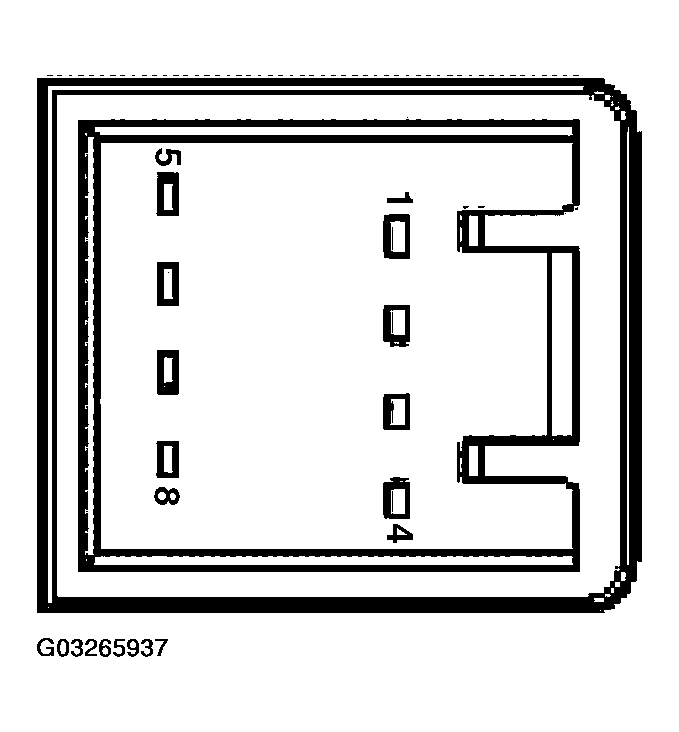

Courtesy of FORD MOTOR CO. ATC SOLENOID AND MANIFOLD RESISTANCE
| ATC Solenoid and Manifold Pins |
Resistance |
| 1 and 2 |
44-54 ohms |
| 1 and 3 |
44-54 ohms |
| 1 and 4 |
44-54 ohms |
| 1 and 5 |
44-54 ohms |
| 1 and 6 |
44-54 ohms |
